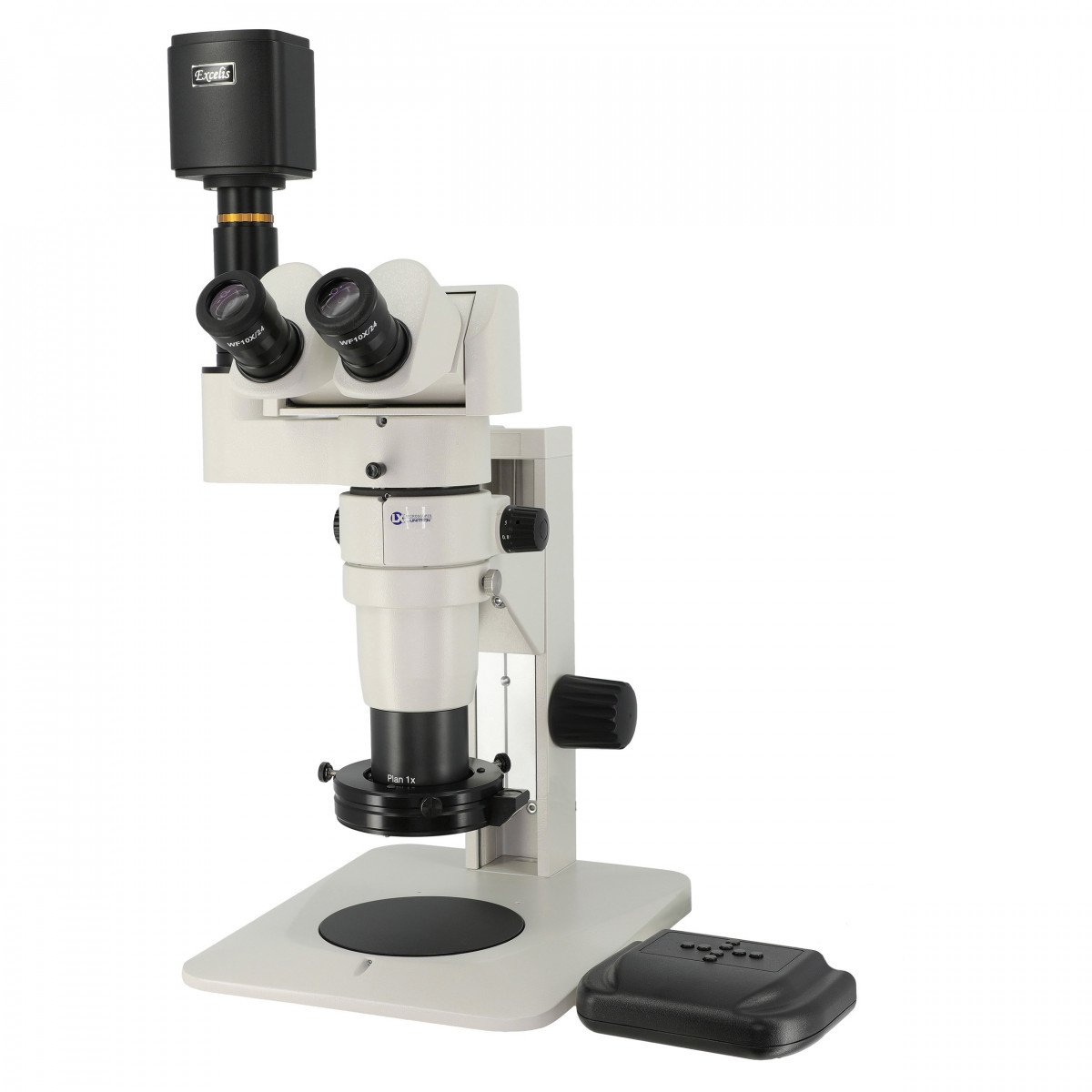

LX Microscopes by Unitron 374PFSTRT-DMLED-HOHD – Trinocular Microscope with 1.0x Objective, Plain Focusing Stand, Camera and Ring Light (Catalog # 24825-HDTRT)
15 people are viewing this product right now
Original price was: $5,638.00.$5,112.27Current price is: $5,112.27.
Shipping calculated at checkout.
Estimated delivery:5 days
S-Z 24mm Ergo Trinocular, Plain stand, (1X lens included), Dimmable LED-High Output Ring Light, Excelis HD Camera, Video Adapter
- System 374 stereo microscope system
- Model number 374PFSTRT-DMLED-HOHD – Catalog number 24825-HDTRT
- Trinocular body
- Plain focusing stand – 125mm of focusing travel
- Includes 1.0x objective
- Includes Excelis camera and high output LED ring light
- Eyetube inclination can be adjusted between 0 and 30 degrees
- Eyetubes can be rotated 180 degrees
- Magnification with 1.0x objective – 8 to 50x, 78mm working distance
- Simultaneously view images on screen and through the eyepieces
Guarantee Safe and Secure Payment Checkout
Description
LX Microscopes by Unitron 374PFSTRT-DMLED-HOHD – Trinocular Microscope with 1.0x Objective, Plain Focusing Stand, Camera and Ring Light (Catalog # 24825-HDTRT)
- System 374 stereo microscope system
- Model number 374PFSTRT-DMLED-HOHD – Catalog number 24825-HDTRT
- Trinocular body
- Plain focusing stand – 125mm of focusing travel
- Includes 1.0x objective
- Includes Excelis camera and high output LED ring light
This item is a System 374 microscope with a 1.0x objective and a plain focusing stand (125mm of focusing travel). It also includes a camera and high output dimmable LED ring light.
The light source has a 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5″ working distance.
System 374 microscopes
LX Microscopes by UNITRON’s System 374 is the newest addition to its industry renowned, ergonomic microscope family. The ergonomic features of the System 374 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 24mm optics system provides a 4X-25X magnification range when used with a 0.5X Reducing lens or an 8X-50X magnification range when used with a 1.0X Objective lens. Easy to adjust, tilting binocular eyetubes can be inclined from 0 to 30° and the eyetubes can be rotated 180° to increase the height by an additional 3 inches. System 374 models allow operators to simultaneously view images on screen and through the eyepieces improving productivity.
Several models available
System 374 microscopes are available in packages with two types of stands, a 0.5x or 1.0x objective, and with or without a camera and light source. The following is an overview of the main components for each:
| Model | Catalog | Stands | Include objective | ||||
| Boom | Plain | 0.5x | 1.0x | Camera | Light | ||
| 374BBTRT | 24820BB-TRT5 | ||||||
| 374BBTRT-DMLED-HOHD | 24825BB-HDTRT5 | ||||||
| 374PFSTRT | 24820-TRT | ||||||
| 374PFSTRT-DMLED-HOHD | 24825-HDTRT |
Excelis camera
The Excelis HD is the only HDMI microscope camera in its class to offer simultaneous 1080p live image output to an HD monitor and to a computer via USB 2.0. Images can be saved directly to a PC or Mac or onto the included 8GB SD card. The USB microscope camera can be fully controlled without a computer as demonstrated in the video under the demo video tab. The free software allows for measurements, annotations, extended depth of focus, image stitching, and fluorescence.
Perfect color reproduction
Manipulate live images without lag
Full HD resolution allows clear and fast live image inspection
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Stereo |
| Body Style | Trinocular |
| Illumination Type | LED |
| Magnification max | 50 x |
| Magnification min | 8 x |
| Working Distance | 78 MM |
| Variable Light Control | Yes |
| Rotating Head | Yes |
| Stand Type | Track |
| Camera Included | Yes |
| Camera Type | Other |
| ESD Safe | No |
Product General Attributes | |
| Warranty | 5 YEARS |
