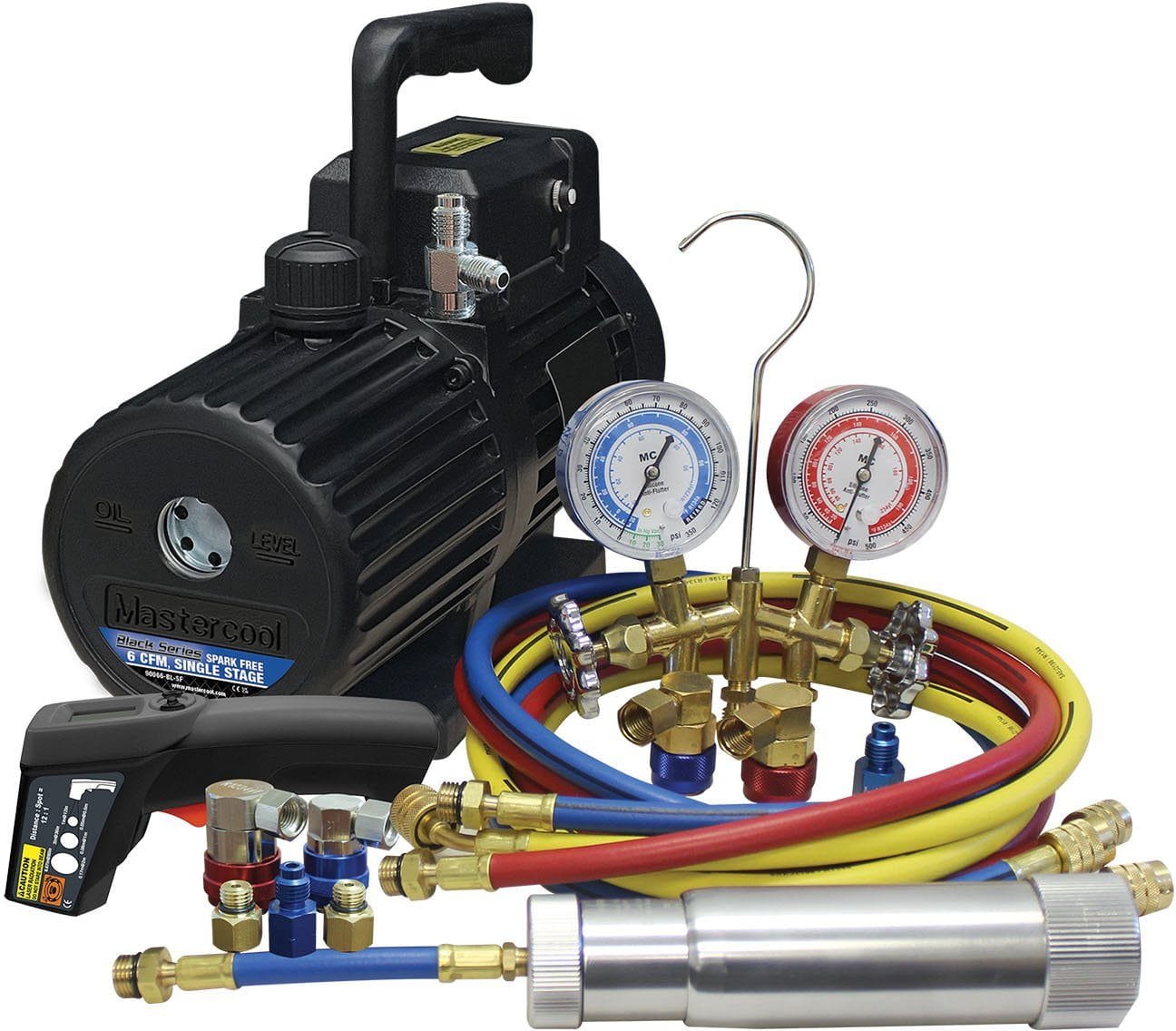

Mastercool 90066-SF KIT – Dual R134A/R1234YF Evacuation and Charging Combo Kit

• Kit includes: Spark-free 6 CFM vacuum pump (single stage), Dual R134a and R1234yf brass manifold gauge set, dual R134a and R1234yf oil/dye injector, 12:1 infrared thermometer with laser
• Spark-Free 6 CFM deep vacuum pump for all refrigerants including R1234yf systems
• Dual brass R134a and R1234yf manifold gauge set with 60-inch hoses, R134a standard couplers set, R1234yf standard couplers set, (2x) R1234yf conversion fittings, R1234yf tank adapter
• Refillable R1234yf oil injector – use the couplers supplied with the manifold gauge set to add dye/oil
• Thermometer temperature range: -36.4 to 689 ˚F

The Dual R134a and R1234yf Evacuation and Charging Combo Kit allows the end user to vacuum, vacuum leak test, check vent temperatures, charge refrigerant and add oil/dye to any R134a or R1234yf A/C system.

• Spark-Free 6 CFM deep vacuum pump for all refrigerants
• Dual brass R134a and R1234yf manifold gauge set
• Set of 60” hoses
• Set of R134a standard couplers
• Set of R1234yf couplers
• R1234yf tank adapter
• R1234yf conversion fittings
• Dual oil/dye injector
• Includes FREE infrared thermometer

This Kit Includes:

SPARK FREE 6 CFM VACUUM PUMP (SINGLE STAGE)

• Vacuum pump with spark free components for use with all refrigerants including R1234yf systems

DUAL R134a AND R1234yf BRASS MANIFOLD GAUGE SET

• 60” hoses
• R134a set of standard couplers
• R1234yf set of standard couplers
• (2) R1234yf conversion fittings
• R1234yf tank adapter

DUAL R134a AND R1234yf OIL/DYE INJECTOR

• Use the couplers supplied with the manifold gauge set to add dye/oil

FREE 12:1 INFRARED THERMOMETER WITH LASER

• Temperature range: -36.4 to 689˚F

Mastercool’s “Black Series” vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump provides the power and mobility necessary for a wide variety of applications.

FEATURES:

• Refined cartridge machining process creates an improved surface finish extending the longevity of the pump life
• Expanded internal oil path creates less friction and ultimately less heat
• Upgraded seals insure maximum vacuum
• U.S. designed and tested
• Easy grip handle
• Easily removable vapor discharge/oil fill port
• Large oil level sight glass with max/min level indicator
• Easily accessible oil drain valve
• Thermally protected motor with on/off rocker switch
• T-Fitting 1/4″ FL-M x 1/2 ACME-M
• High volume fan provides cool air to motor and pump
• Check valve prevents oil back-flow
• Cooling fins keep temperature cooler during extended operation
• Large, light weight reinforced base for stable positioning

SPECIFICATIONS:

• Stages: 1
• Free air displacement: 6 CFM
• Ultimate vacuum: 80 microns
• Motor: 1/3 HP
• Pump speed: 1720 RPM
• Electrical specs: 110/120 V, 60 Hz

R1234y/R134a Brass Manifold Gauge Set

66661-AYF: R1234yf/R134a brass manifold gauge set, 2 1/2” gauges, 3-60” R134a standard hoses, R134a economy couplers (66234, 66334), R1234yf quick couplers (67434, 67534), 1/2” acme-m x 1/2” acme-f LH thread adapter (83633), (2) 12 mm-m x 14 mm-f R1234yf adapters (83735)

53123-YF Refillable R1234yf Oil Injector

To inject the oil or dye, simply connect the injector to the low side of the A/C system and twist the handle until you reach the desired amount. The injector hose comes complete with a R1234yf coupler.

• Heavy duty, anodized aluminum, 2 oz container with dye scales represented in 1/10-ounce, ¼-ounce, and milliliters
• Nylon barrier blue hose meets J2888, EPA, SAE and UL standards
• R1234yf low side coupler with extended disconnect sleeve and meets SAEJ639 and J2888

12:1 Infrared Thermometer with Laser

• Temperature range: -36.4 to 689˚F
