Meiji Techno COX – Coaxial Vertical Illuminator without Transformer, 6V 30W Halogen
15 people are viewing this product right now
Original price was: $2,200.00.$1,886.50Current price is: $1,886.50.
Shipping calculated at checkout.
Estimated delivery:3 days
Coaxial vertical illuminator without transformer, 6V 30W Halogen
- COX Coaxial Vertical Illuminator without Transformer
- 6V 30W Halogen
Guarantee Safe and Secure Payment Checkout
Description
Meiji Techno COX
- COX Coaxial Vertical Illuminator without Transformer
- 6V 30W Halogen

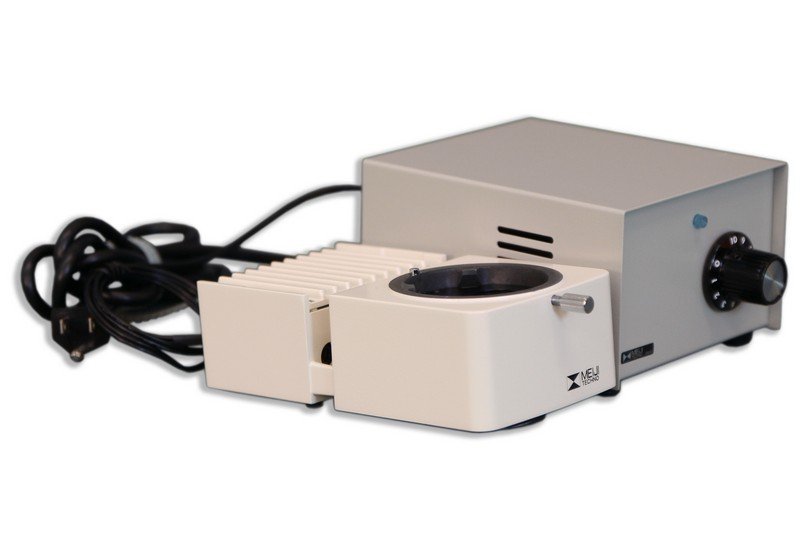

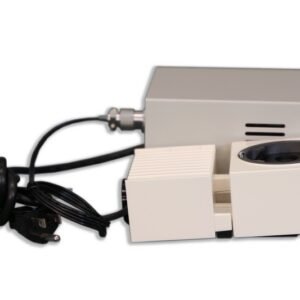

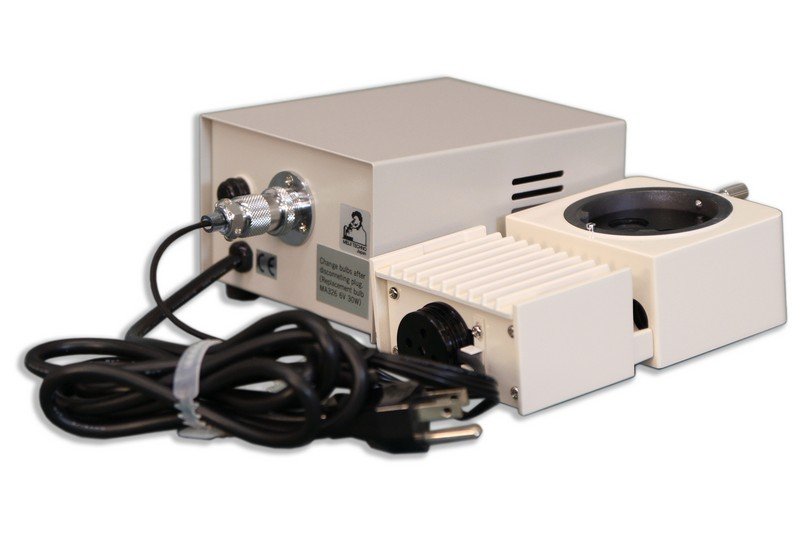

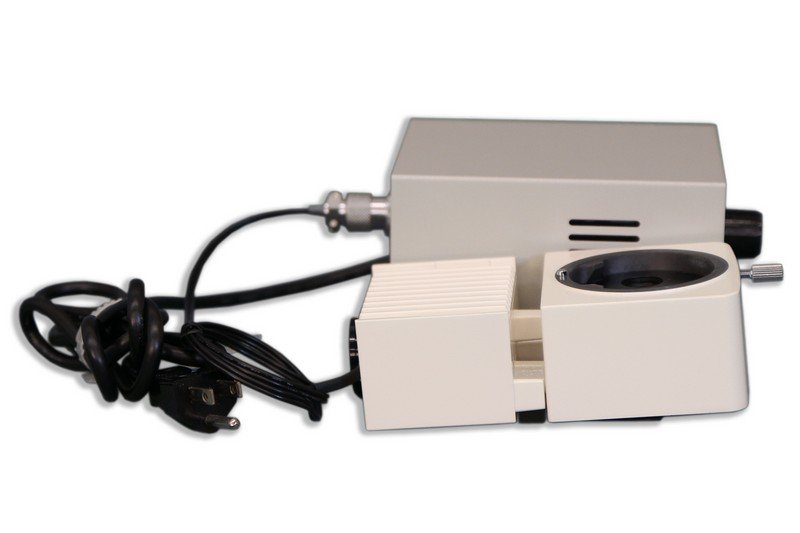

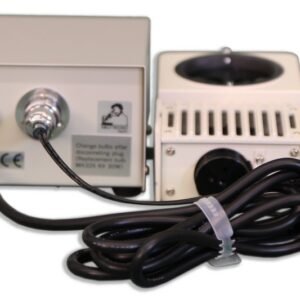

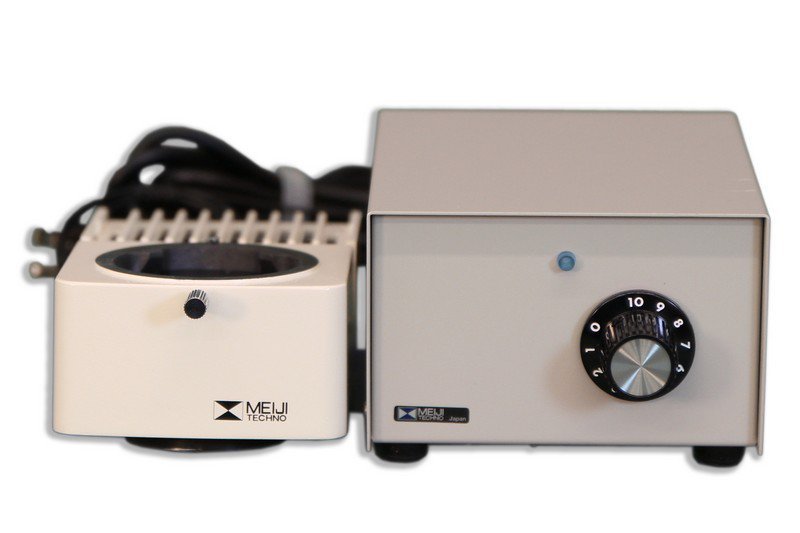

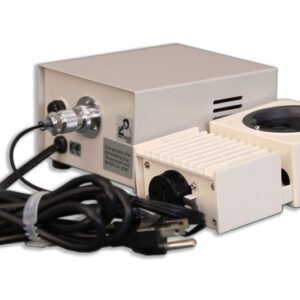

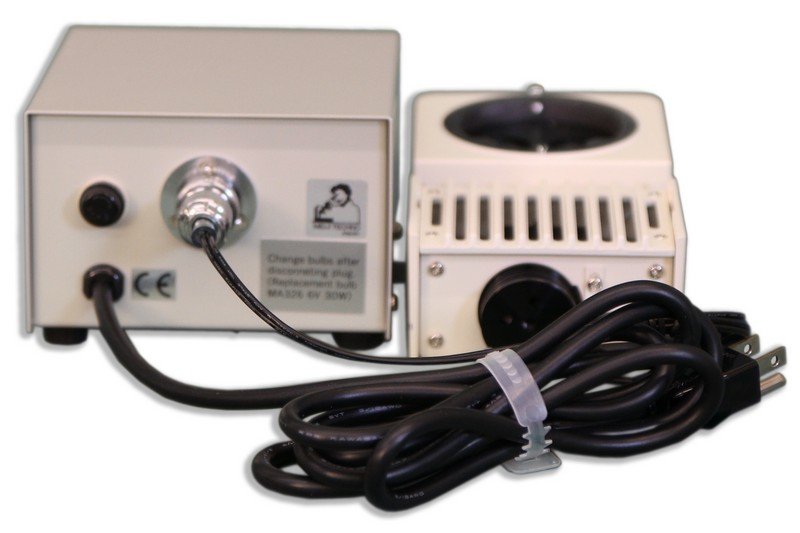

Coaxial Vertical Illuminator without Transformer, 6V 30W Halogen
The coaxial vertical illuminator is used when observing flat, highly reflective specimens such as integrated circuits, semiconductor wafers, polished metal specimens, solder balls or magnetic recording heads. The coaxial vertical illuminator mounts between the RZB body and the binocular viewing head and directs light from a 6V, 30W halogen lamp down through the objective onto the specimen. The coaxial illuminator is powered by an optional free-standing transformer (MA651/05 or MA651/10) or may be connected the rear of the RZT tranmitted light base. Total magnification is increased by a factor of 1.5X when using the coaxial illuminator.
Requires MA762 1/4 wave plate in mount for RZ plan objective)
NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:
- Research Stereo Microscope Body (RZ-B)
- View Heads (MA748 or MA749)
- Eyepieces (Requires 2 of identical magnification)
- Stands (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
- Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
- Camera and Camera Adapters (Optional)
- Auxiliary Lens (Optional)
Product General Attributes | |
|---|---|
| Unique Features | Is used when observing flat, highly reflective specimens such as integrated circuits, semiconductor wafers, polished metal specimens, solder balls or magnetic recording heads |
| Warranty Details | MEIJI TECHNO will repair or replace, at its option, any instrument which under normal conditions of use and service proves to be defective in material or workmanship. No charge will be made for labor or parts with respect to defects covered by this warranty, provided that the work is done by MEIJI TECHNO. This warranty does not cover expenses incurred in the removal or reinstallation of any instrument or instruments, whether or not proven defective. Replacement or repairs furnished under this warranty are subject to the same terms and conditions of the original warranty. |
| Country of Origin | Japan |
