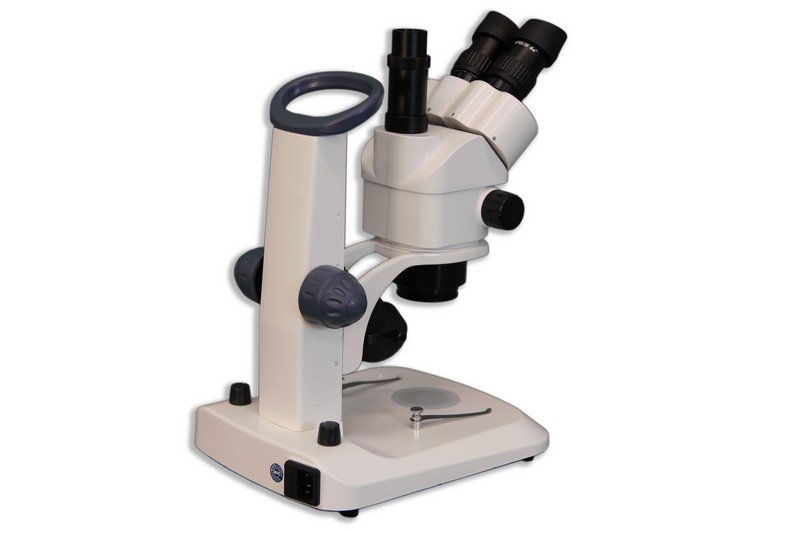

Meiji Techno EM-33 – Trinocular Entry-Level 0.7X-4.5X Zoom Microscope System

• EM-33 Trinocular Entry-Level 0.7X-4.5X Zoom Microscope System
• Complete Trinocular system configured system with Microscope Body, Stand , Eyepiece
• Continuous Trinocular Zoom Stereo 0.7X to 4.5X objective
• Robust alloy metal stand with smooth rack & pinion design
• New design, Ergonomically placed focus knobs

Meiji Techno America’s EM-33 Series meets the demand for a complete Advanced entry level Zoom Trinocular style stereo microscopes with a built in 0.7-4.5X zoom objectives giving the user 7.0X-45X magnification with the standard 10X eyepiece. Equipped with LED illlumination in a stable large footprint design and a comfortable carrying grip for ease of portability. Trinocular head is inclined at 45° tubes, One ± 5 diopter adjustment, Interpupillary distance adjustable between 55 mm and 75 mm. Two C” mounts with a 0.33x lens for 1/3” cameras and a 0.5x lens for 1/2” cameras are available as an option. The EM-33 Trinocular Zoom Stereo Microscopes have crisp, erect images over a wide field of view. The stand is made out of metal cast alloy and has a rack and pinion design with coarse adjustment and tension control.

Equipped with a Zoom Stereo 0.7x to 4.5x objective Magnification from 7x to 45x Field of views 28.5 mm to 4.4 mm and Working distance of 100 mm

Featuring incident and transmitted LED illumination, these student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

This series is a larger frame than the EM-20 models, great for observing any biological or physical science specimens, plants, insects etc., virtually any object because the stand allows the optics to be raised high enough to fit virtually any educational specimen.

VIEWING HEADS

Binocular or Trinocular 45° inclined tubes Two diopter adjustments Interpupillary distance adjustable between 55 mm and 75 mm All optical parts are anti-fungus treated.

EYEPIECES

Paired WF 10x/20mm eyepieces

ZOOM OBJECTIVES

Zoom Stereo 0.7x to 4.5x objective Magnification from 7x to 45x Field of views 28.5 mm to 4.4 mm Working distance 100 mm.

STAND

Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.

ILLUMINATION

The 3W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.

FOCUSING ADJUSTMENT

Coarse adjustment with tension control.

PHOTOMICROGRAPHY

Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
