Metcal MX-HPDC Dual Cartridge Handpiece

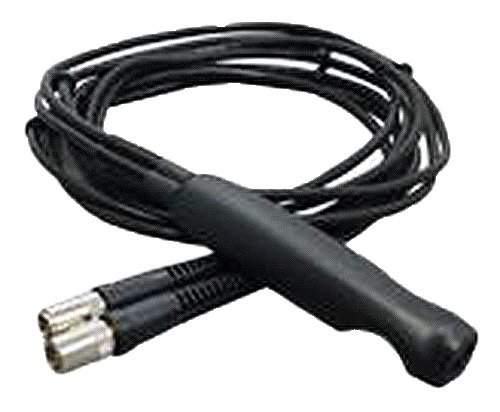

The Metcal MX-HPDC dual cartridge handpiece was designed specifically for application with higher thermal demands.

The success of conduction soldering depends upon the availability and controlled flow of thermal energy into the connection during two critical phases – flux activation and intermetallic bond formation. Higher thermal demand applications such as microwave shields, heavy block type housing and tabbing, preheat applications, BGA removal as an alternative to convection, cell phone shields, and industrial lugs and leads require additional thermal energy during these critical phases.

To address these challenging applications, Metcal offers the MX-HPDC dual cartridge hand-piece for use with the MX series power supplies, along with a new series of 5 SMTC dual-shaft cartridges. Dual shaft cartridges are available with 700 & 800 series heaters. Please see the Accessories tab on this page for a list of compatible tips.

Recommended configurations:

• One MX-5200 power supply in dual-simultaneous mode to provide 40W of power to both heaters
• Two MX-5200 power supplies to provide 80W of power to both heaters
