Mitutoyo 178-396 – Detector for Surftest SJ-410 (0.75mN/25mm)
16 people are viewing this product right now
Original price was: $1,480.00.$1,387.50Current price is: $1,387.50.
Shipping calculated at checkout.
Estimated delivery:3 days
DETECTOR FOR SJ-401, 0.75MN
- Detection method: Differential inductance
- Measuring force: 0.75mN
- X-axis range: 25mm
- Tip radius/Angle: 2µm / 60-degree
- Resolution: 0.0125µm (800µm range); 0.00125µm (80µm range); 0.000125µm (8µm range)
- Includes a skidless and a skidded nosepiece
- Includes standard stylus (tip radius 2µm; tip angle 60-degree)
- Conforms to latest ISO standard, ANSI/ VDA standard, the JIS standard (2001/1994/1982)
Guarantee Safe and Secure Payment Checkout
Description
Mitutoyo 178-396
- Detection method: Differential inductance
- Measuring force: 0.75mN
- X-axis range: 25mm
- Tip radius/Angle: 2µm / 60-degree
- Includes a skidless and a skidded nosepiece; Includes stylus

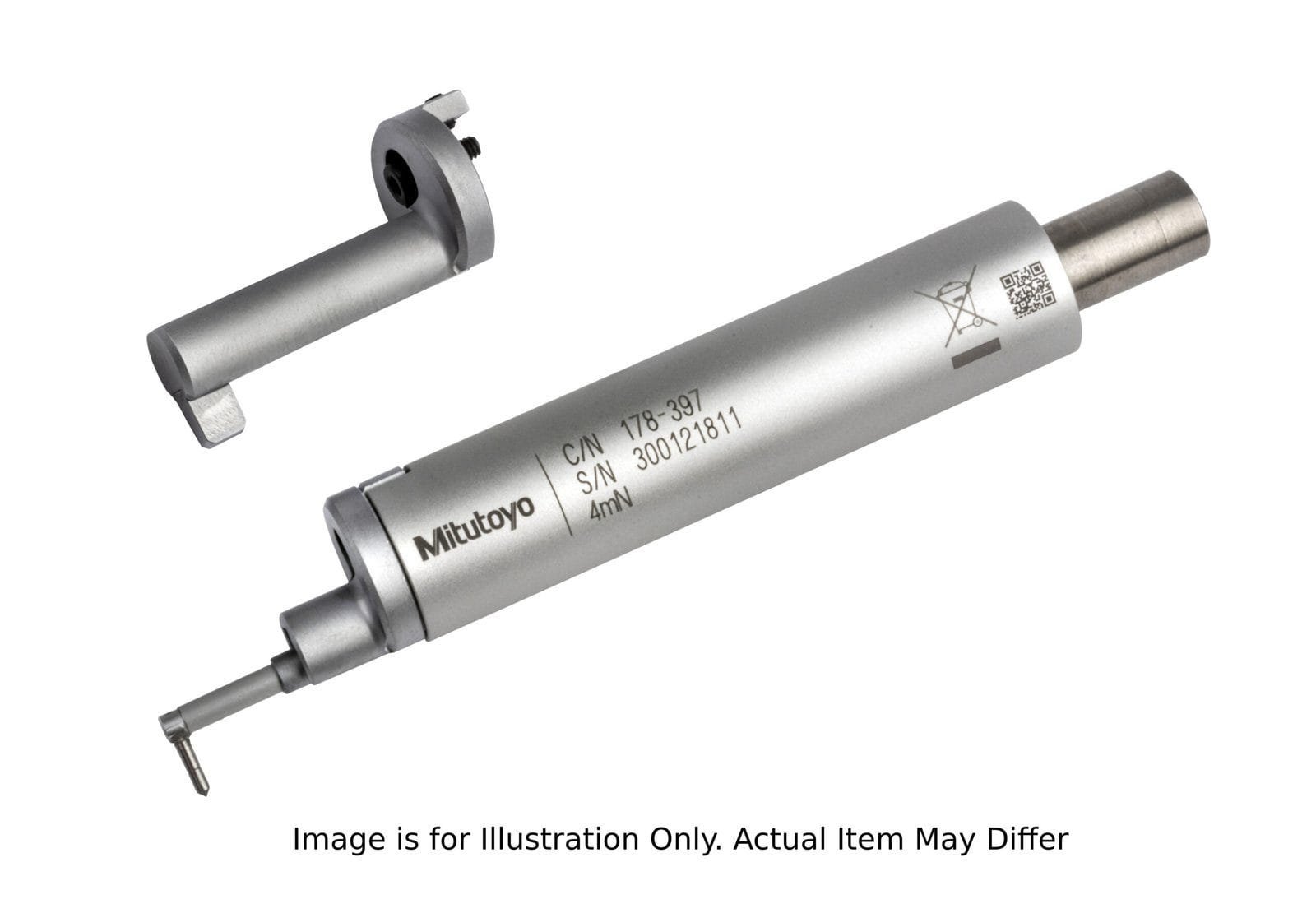

Mitutoyo 178-396 Detector for Surftest SJ-410 (0.75mN)
The Mitutoyo 178-396 is a detector for the Mitutoyo Surftest SJ-410 Portable Surface Roughness Tester. A wide-range, high-resolution detector and a very accurate drive unit provide superior high-accuracy measurement in its class. Skidded and skidless measurement are switchable to perform optimum evaluation according to the measurement setup. Conforms to the latest ISO standard and ANSI/ VDA standard in addition to the JIS standard (2001/1994/1982).
| Detector | Measuring Force | Range | Stylus Tip (angle/radius | Applicable Surftest Unit |
| 178-396 | 0.75mN | 25mm | 2µm / 60-degree | 178-581-11A |
| 178-396-2 | 0.75mN | 50mm | 2µm / 60-degree | 178-583-11A |
| 178-397 | 4mN | 25mm | 5µm / 90-degree | 178-581-12A |
| 178-397-2 | 4mN | 50mm | 5µm / 90-degree | 178-583-12A |
