Monarch 5396-0105-CAL Rugged Temp Logger with NIST Traceable Calibration Certificate

Monarch 5396-0105-CAL – Rugged Temp Logger with NIST Traceable Calibration Certificate

• Small compact size
• Integral USB interface (no custom cable!)
• Interactive software (included!)
• Three year battery life (battery included!)
• N.I.S.T. calibration (optional)

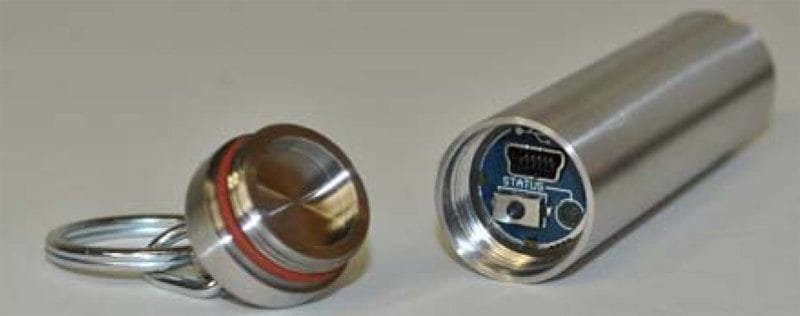

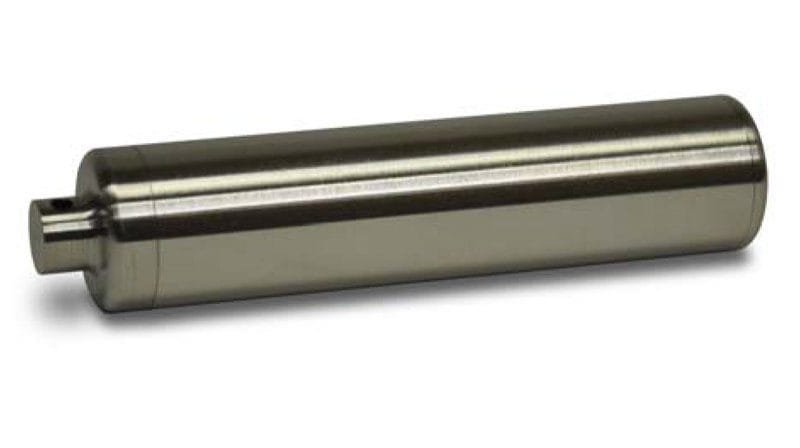

The Track-It™ Rugged Temperature Data Logger is a submersible battery powered stand alone compact data logger that records up to 64,000 samples of temperature data. The wide temperature range and stainless steel IP68 packaging make it versatile and rugged enough for the more strenuous temperature logging applications. Moisture, corrosion, and force are prevented from affecting your measurements, as well as shallow submersion. The unit is easily configured using the included Track-It™ Software.

Simply connect the logger to an open USB port on your PC and the software automatically identifies the logger. Use the internal push button to start and stop recording and check status or configure the unit to start recording immediately, start and/or stop at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.

Typical Use:

• FDA
• Storage
• Food
• Oil and Gas
• Buildings
• Laboratories

• HVAC
• Refrigeration
• Pharmaceutical
• Transportation/Cold Chain
• Freezers
• HACCP

Track-It™ Software

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. Simply connect your Track- It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units and recording triggers.

View a numerical data table or graphical representation of data readings relative to time. Use the graph cursor tools such as panel meter display, x-y value, period, or peak to peak. Zoom and stretch to examine and analyze the data and print a graphical report. From the data table view, see a summary containing min, max and average as well as Mean Kinetic Temperature. Export stored data to an Excel™ spreadsheet. Track-It™ Software also turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC.

Track-It™ Transport App

Track-It™ Transport is a free Android Application that allows you to use your Android device to start and stop recording and transfer data using a USB On-the-Go cable. Available on Google Play.
