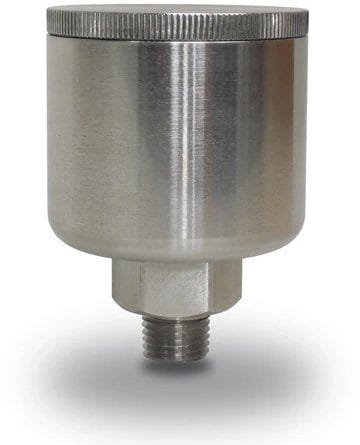

Monarch 5396-0308 – Vacuum/Temperature Logger
14 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Vacuum Track-It, 0 to -760 Torr Vacuum/Temp Logger with USB cable
- Torr Range: 0 to -760
- Programmable start/stop time and sample rates
- Up to 64,000 data samples per recording session
- Multiple alarm set-points
- Compact size
- USB Interface (cable included)
- Powerful interactive Track-It Software package included
- Rugged IP68 316L stainless steel package
- 5-year battery life (battery included)
- Wide temperature range: 0 – 185°F (-20 – 85°C)
- 150% overrange protection
- High accuracy and repeatability
- Accurate internal clock (1 minute/year)
- NIST calibration available
Guarantee Safe and Secure Payment Checkout
Description
Monarch 5396-0308 – Track-It Pressure/Temp, Vacuum/Temp Data Logger
- Torr Range: 0 to -760
- Programmable start/stop time and sample rates
- Up to 64,000 data samples per recording session
- Multiple alarm set-points
The Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers are battery powered stand alone water tight compact data loggers that record up to 64,000 samples. They can be configured to record both pressure and temperature or vacuum and temperature or either parameter alone to maximize data storage space. The unit is easily configured using the free downloadable Track-It™ Software.
Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.
Track-It™ Transport Android App
The Track-It Pressure/Temperature loggers are compatible with free Track-It Transport Android application. The Transport Application allows you to use your Android device and an On-The-Go cable to retrieve data from the logger while in the field. Record start/stop and erase memory is also available.
Track-It Software
Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately. Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.
View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet. Compatible with Win XP/Vista/7, 32 and 64 Bit.
Typical Uses
- Industrial Process
- Food Manufacturing
- Water Supply Line
- Hydrant Water Pressure
- Household Water Pressure
- Building Supply
- Municipalities
- HVAC
- Oil and Gas
- Petro Chemical
- Compressors
- Pumps
- Hydrostatic Testing
- Water and Wastewater
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ | |
|---|---|
| Max Temperature | 85 C |
| Min Temperature | -20 C (-4 F) |
| Power Source | Battery |
| Battery Life | 3 YEARS (26280 HR) |
| SAMPLE RATE/Intervals | 64,000 SAMPLE RATE/Intervals Per record |
| Accuracy | Vacuum Ranges: ± 0.5% Temperature Range: ±0.5°C 0 to 50°C / 32 to 122°F, ±2°C –20 to 85°C / -4 to 185 F |
| LCD Screen | No |
| Software Included | Yes |
Product General Attributes | |
| Unique Features | 760 to 0 Torr range |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Data Logging | Yes |
| Battery Type | AA, Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
