Monarch 5396-0322-CAL – Monarch 5396-0322-CAL Barometric Pressure/Temp LB Logger w/NIST Certificate

Monarch 5396-0322-CAL – Monarch 5396-0322-CAL Barometric Pressure/Temp LB Logger w/NIST Certificate

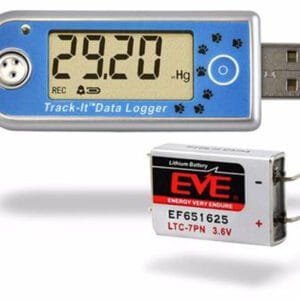

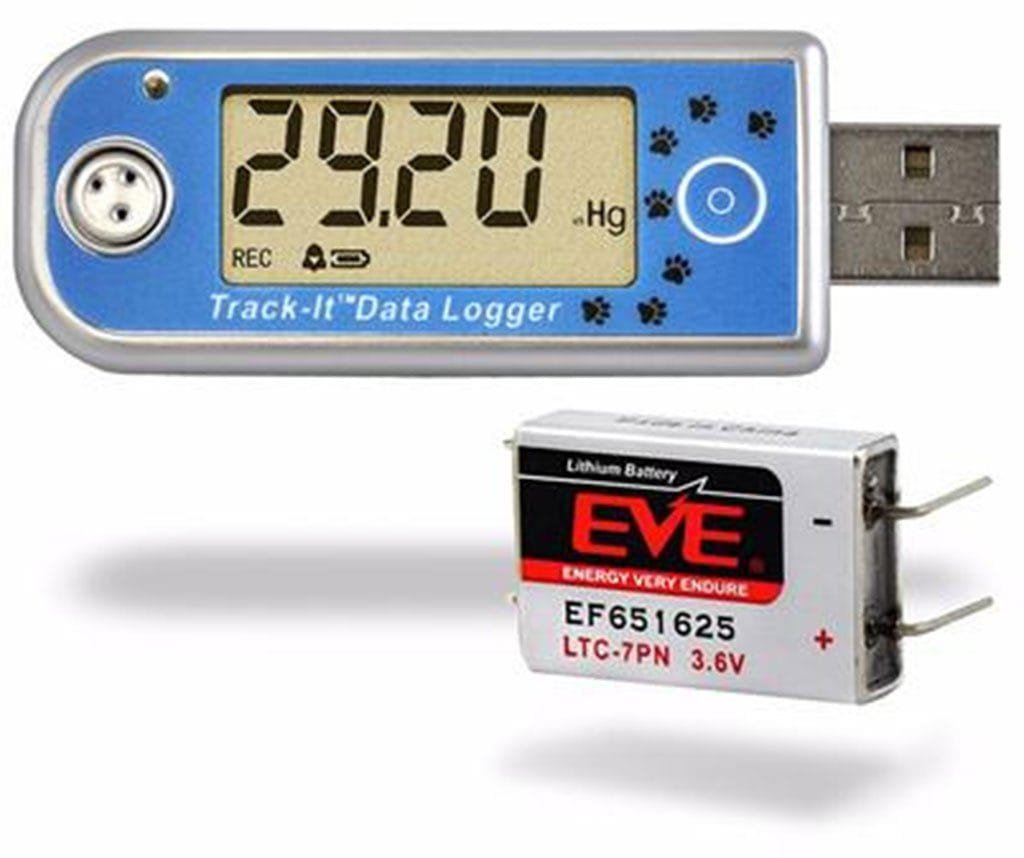

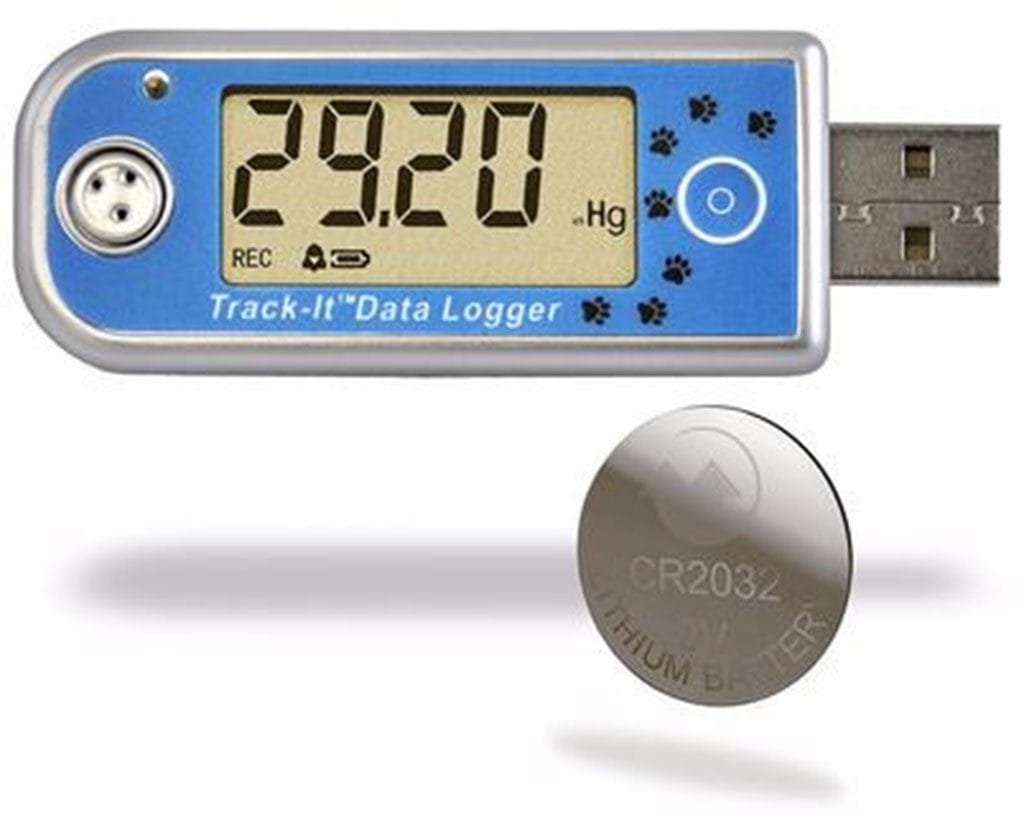

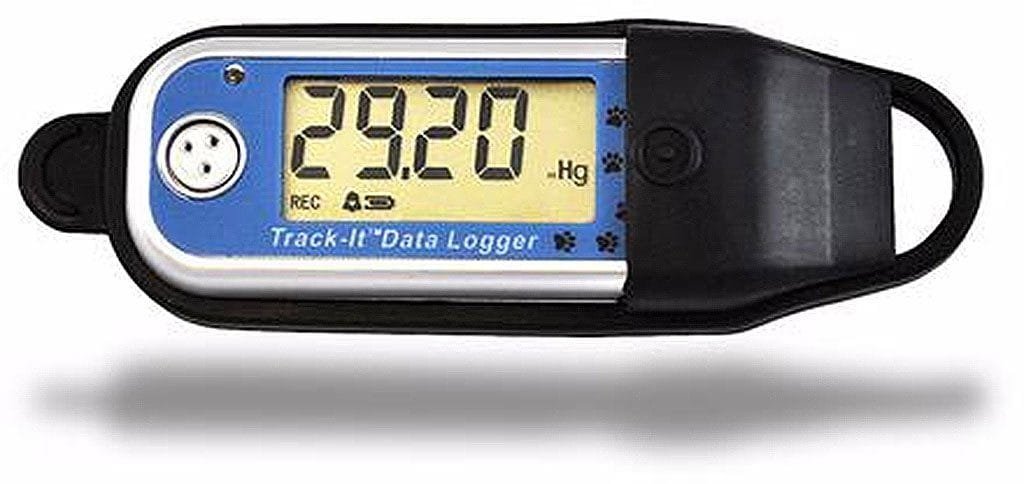

The Track-It™ Barometric Pressure/Altitude/ Temperature Data Logger is a battery powered stand alone compact data logger that records up to 64,000 samples of Barometric Pressure and/or Temperature data. The unit is easily configured using the free download Track-It Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed.

The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is nonvolatile so data will not be lost in the event of a depleted battery. Barometric (also known as atmospheric) pressure can be displayed in a variety of engineering units. It can be used as an altimeter. Information displayed on the LCD is user selectable and can be sequenced by pressing the logger button. There is a multicolored LED indicator to notify user of alarms or general activity. A splash proof protective cover protects the logger when in use. Additionally, the logger can be used to record external inputs using optional Track-It DC voltage or DC current modules.

Typical Uses

• Weather
• Environmental Comfort
• Health and Well Being
• Building Management

• Healthcare Facilities
• Laboratory
• Altitude
• Manufacturing

• Transportation
• Aviation
