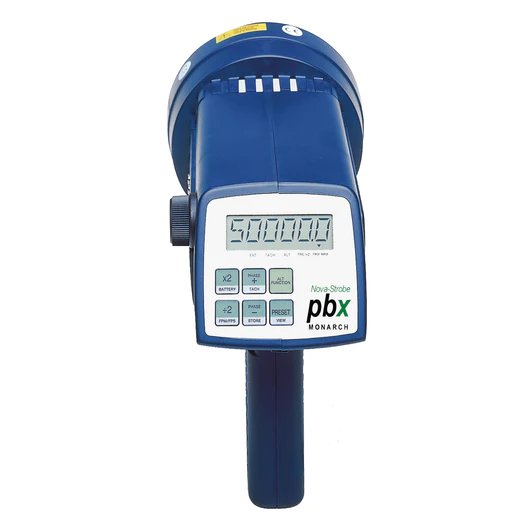

Monarch PBX – Phaser-Strobe pbx Advanced Digital Portable Stroboscope
17 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Phaser-Strobe Stroboscope – 30-50,000 FPM with PSC-pbxU 115/230 V ac Power Supply/Recharger; includes NIST Calibration Certificate
- Flash rates from 30 to 50,000 flashes/minute
- All-digital, crystal-controlled microprocessor keeps readings rock steady
- 2x /÷2 push buttons allow easy checking for RPM harmonics and allow stop motion far beyond the 50,000 FPM limit
- Store and recall up to 9-user selectable values; last measurement memory
- Individual input and output TTL jacks
- Tachometer mode allows accurate speed measurement up to 200,000 RPM using external sensors
- Dual-function delays in external mode
- Auto Step mode provides slow motion appearance for high-speed repetitive event
- Backlit alphanumeric LCD
- NIST Certificate of Calibration included
Guarantee Safe and Secure Payment Checkout
Description
Monarch PBX
- Flash rates from 30 to 50,000 flashes/minute
- All-digital, crystal-controlled microprocessor keeps readings rock steady
- 2x /÷2 push buttons allow easy checking for RPM harmonics and allow stop motion far beyond the 50,000 FPM limit
- Store and recall up to 9-user selectable values; last measurement memory
- Individual input and output TTL jacks
Phaser-Strobe pbx Advanced Digital Portable Stroboscope
The Monarch PBX incorporates the unique design features of Monarch’s Nova-Strobe dbx with an increased operating range of 30 to 50,000 flashes per minute, as well as external phase-shifting. The digital adjustment knob can select the decade for adjustments, so coarse and fine adjustments of flash rates are made quickly and with significantly better resolution than competitive units.
The memory feature of the Phaser-Strobe pbx allows nine flash rates to be stored – displayed in flashes per minute or flashes per second. Phaser-Strobe pbx operates with internal rechargeable batteries or continuously from AC line power with the power supply/recharger.
Reliability / Preventative Maint / Rotational/Stroboscopes Template | |
|---|---|
| Style (Stroboscope) | Hand Held |
| Digital Display | 6 Digits |
| Revolution Rate Maximum | 250000 RPM |
| External Trigger | Yes |
| Phase Shift (Stroboscope) | Yes |
| Programmable Steps | Yes |
| Rechargable Power | Yes |
| Memory Capability | Yes |
| Waterproof Housing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Weight | 1.9 LBS |
| Calibration Included | NIST Calibration |
| Battery Type | NimH |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
| Weight | 1.9 lbs |
|---|
