Motic BA210E – Binocular Microscope with LED Illumination, Without 100X Objective
31 people are viewing this product right now
Original price was: $1,069.00.$962.10Current price is: $962.10.
Shipping calculated at checkout.
Estimated delivery:5 days
BA210E LED Binocular w/o 100XBinocular head Siedentopf type 30 Degrees inclined, 360 Degrees rotatingWidefield high eyepoint eyepiece N-WF10X/20mmwith diopter adjustment on both eyepieces and rubber eyecupsReversed quadruple revolving nosepieceCCIS EC Plan Achromat objectives EC PL 4x, 10x, 40x SCoaxial coarse and fine focusing adjustment with tension adjustmentBuilt in low position coaxial rackless stage (Right-hand control)Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot3WLED modulePower Supply 100-240V45mm blue filter, immersion oil (5mL), power cord, allen hexagonal key, thumb screw, vinyl dust cover, instruction manual
- Binocular microscope; 30° inclined, 360° rotating
- Widefield high eyepoint eyepieces N-WF10X/20mm
- CCIS EC Plan Achromat objective classification
- Objectives: EC PL 4x, 10x, 40x S
- Range: 80 x 30 mm
- LED 3W illumination
- Diopter adjustment on both eyepieces, +/- 5 diopter
- Reversed quadruple revolving nosepiece
- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built in low position coaxial rackless stage (Right-hand control)
Guarantee Safe and Secure Payment Checkout
Description

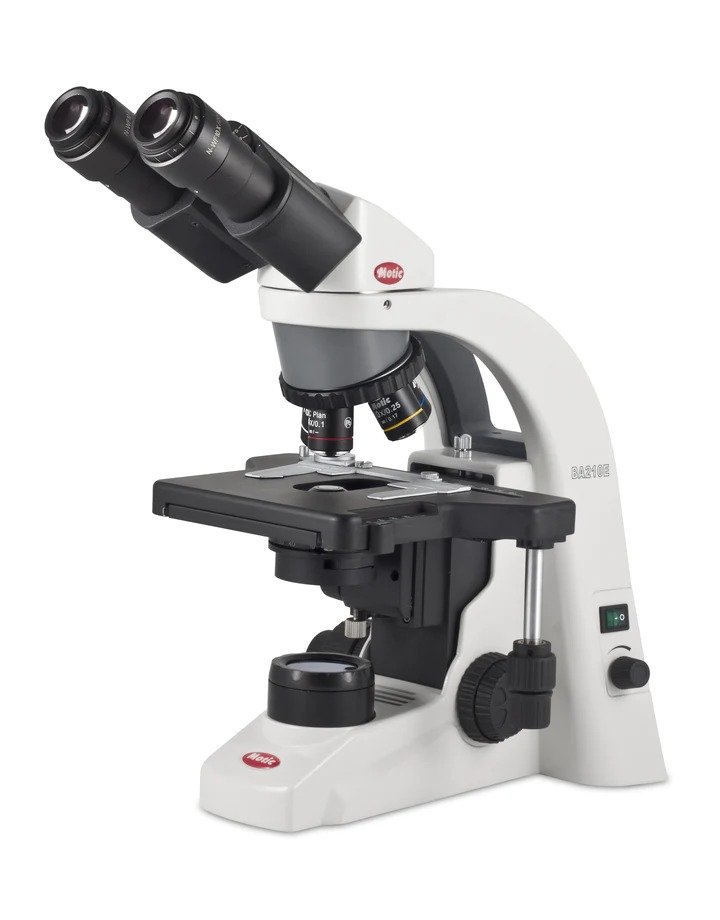

Motic BA210E
- Binocular microscope; 30° inclined, 360° rotating
- Widefield high eyepoint eyepieces N-WF10X/20mm
- CCIS EC Plan Achromat objective classification
- Objectives: EC PL 4x, 10x, 40x S
- Range: 80 x 30 mm
Binocular Microscope with LED Illumination, Without 100X Objective
This version of the Motic BA210E is a microscope with a binocular head and EC PL 4x, 10x, 40x S objectives for basic work in the life sciences of biology and medicine. The BA210E series is designed for ease of use and longevity and features robust mechanics combined with improved optical performance for the student level. The rackless stage without a prominent gear rack enables a safe x/y scanning, especially for unexperienced users. The extended stage pole allows a simultaneous right-hand fine focusing.
Due to an ergonomic viewing angle and an easy adjustment of the interpupillary distance, BA210E eyepiece tubes guarantee fatigue-free microscopic work for hours. Countersunk fixing screws prevent inadmissible removal of the eyepieces and confirm Motic’s dedication to the daily demands of teachers.
Transport and storage of classroom microscopes are facilitated by an easy grip on the stand and a space-saving power cord hanger.
Optics
Motic’s EC Plan Achromat objectives deliver a remarkable level of optical performance. With excellent field flatness and resolution, the EC optics offer superior color fidelity and contrast through multi-layer coated glass lenses. An intermediate image without any colored fringes is delivered for professional digital results. The modern CCIS Infinity concept guarantees maximum flexibility for optional upgrades.
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Compound |
| Body Style | Binocular |
| Illumination Type | LED |
| Application (Microscopes) | Biological, Student, Teaching |
| Diopter Adjustment | Yes |
| Eyepiece Magnification | 10 |
| Eyepiece Inclination | Yes |
| Eyepiece Inclination Degress | 30 Degrees |
| Interpupillary Distance Max | 75 MM |
| Interpupillary Distance Min | 55 MM |
| Objective Lens Zoom Min | 4 x |
| Objective Lens Zoom Max | 40 x |
| Working Distance | 15.9 MM |
| Variable Light Control | Yes |
| Rotating Head | Yes |
| Camera Included | No |
Product General Attributes | |
| Warranty | 5 YEARS |
| Product Weight | 15.87 LBS |
| Product Height | 395 MM (15.55 IN) |
| Product Length | 360 MM (14.17 IN) |
| Product Width | 220 MM (8.66 IN) |
| Data Logging | No |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 15.87 lbs |
|---|---|
| Dimensions | 360 × 220 × 395 in |
