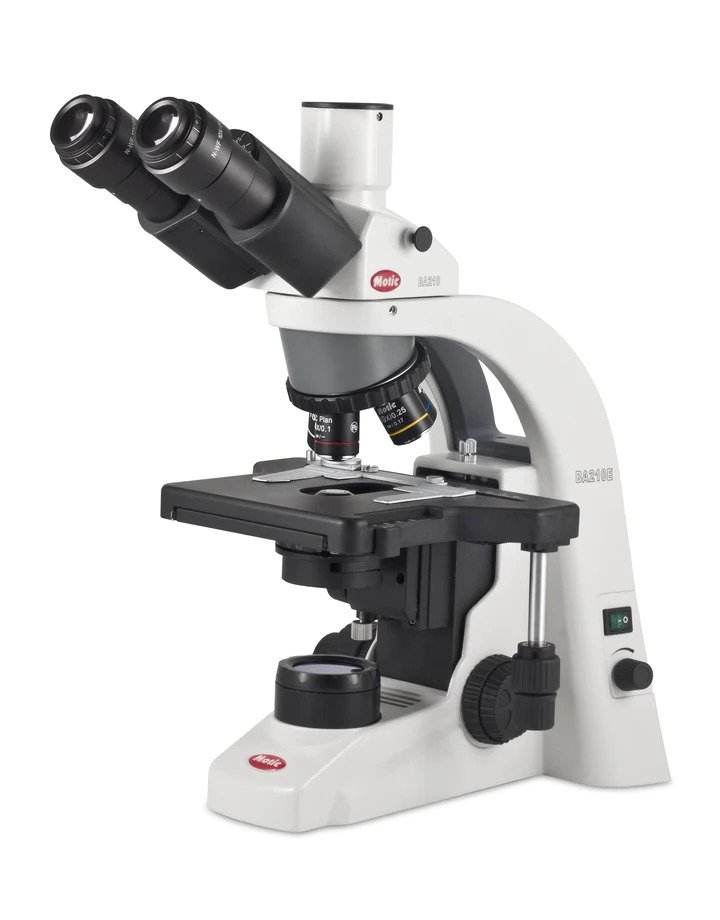

Motic BA210E LED TRI W/O 100X – Trinocular Microscope with LED Illumination, Without 100X Objective

• Trinocular microscope; 30° inclined, 360° rotating, 100:0/20:80 light split
• Widefield high eyepoint eyepieces N-WF10X/20mm
• CCIS EC Plan Achromat objective classification
• Objectives: EC PL 4x, 10x, 40x S
• Range: 80 x 30 mm

This version of the Motic BA210E is a microscope with a trinocular head and EC PL 4x, 10x, 40x S objectives for basic work in life sciences of biology and medicine. The BA210E series is designed for ease of use and longevity and features robust mechanics combined with improved optical performance for the student level. The rackless stage without a prominent gear rack enables a safe x/y scanning, especially for unexperienced users. The extended stage pole allows a simultaneous right-hand fine focusing.

Due to an ergonomic viewing angle and an easy adjustment of the interpupillary distance, BA210E eyepiece tubes guarantee fatigue-free microscopic work for hours. Countersunk fixing screws prevent inadmissible removal of the eyepieces and confirm Motic’s dedication to the daily demands of teachers.

Transport and storage of classroom microscopes are facilitated by an easy grip on the stand and a space-saving power cord hanger.

Motic’s EC Plan Achromat objectives deliver a remarkable level of optical performance. With excellent field flatness and resolution, the EC optics offer superior color fidelity and contrast through multi-layer coated glass lenses. An intermediate image without any colored fringes is delivered for professional digital results. The modern CCIS Infinity concept guarantees maximum flexibility for optional upgrades.

Options for Image Presentation and Database

In many educational institutions, limited resources increase the importance of image presentations to a greater audience. A fully corrected intermediate image without colored fringes is accessible through the photo port of the trinocular tube so the best image quality is available for digital access. Besides, step-by-step storage of images may lead to an image database for tutorials.

The combination of a BA210E with a member of the Moticam series of digital C-mount cameras delivers excellent live images, which can easily be presented through a laptop, tablet, or beamer. The appropriate adapter must be chosen in relation to the chip size of the digital camera. All Motic cameras come equipped with software to transform the BA210E into an analysis and documentation station.
