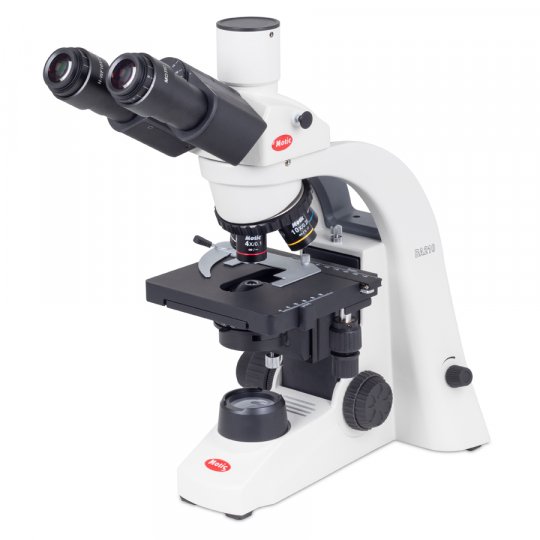

Motic BA210S LED TRI – Trinocular Microscope with LED Illumination
8 people are viewing this product right now
Original price was: $1,317.00.$1,185.30Current price is: $1,185.30.
Shipping calculated at checkout.
Estimated delivery:5 days
BA210S LED TrinocularTrinocular head Siedentopf type 30 Degrees inclined 360 Degrees rotating (Light Split 100:0/20:80)Widefield high eyepoint eyepiece N-WF10X/20mmwith diopter adjustment on the left eyetube and rubber eyecupsReversed quadruple revolving nosepieceCCIS Plan Achromat objectives iASC PL 4x, 10x, 40x S, 100X S-OilCoaxial coarse and fine focusing adjustment with tension adjustmentBuilt in low position coaxial rackless stage (Right-hand control)Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot3WLED modulePower Supply 100-240VImmersion oil (5mL), power cord, allen hexagonal key, thumb screw, vinyl dust cover, instruction manualNote: Photo and C-Mount camera adapter not included
- Trinocular microscope, 30° inclined, 360° rotating, Light Split 80/20, 100/0
- Widefield high eyepoint eyepiece WF10X/20mm
- ASC Infinity Plan Achromat objective classification
- Objectives: ASC PL 4X, 10X, 40X S, 100X S
- Range: 76 x 40 mm
- LED 3W with intensity control illumination
- Built-in frosted glass, no blue filter needed
- +/- 5 diopter adjustment
- Reversed quadruple revolving nosepiece with click stops
- A coaxial coarse and fine focusing system with tension adjustment
Guarantee Safe and Secure Payment Checkout
Description
Motic BA210S LED TRI
- Trinocular microscope with WF10X/20mm eyepiece, Light Split 80/20, 100/0
- Objectives: ASC PL 4X, 10X, 40X S, 100X S
- 30° inclination; 360° rotation
- Range: 76 x 40 mm
- LED 3W with intensity control illumination
Trinocular Microscope with LED Illumination
This version of the Motic BA210S is a biological compound microscope with a trinocular head and ASC PL 4x, 10x, 40x S, and 100X S-Oil objectives designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.
The BA210S is designed for educational and teaching environments from basic life sciences to medical applications. Contrast methods like Phase Contrast, Polarization, and Darkfield are easily performed by using optional accessories.
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Compound |
| Body Style | Trinocular |
| Illumination Type | LED |
| Application (Microscopes) | Biological, Student, Teaching |
| Diopter Adjustment | Yes |
| Eyepiece Magnification | 10 |
| Eyepiece Inclination | Yes |
| Eyepiece Inclination Degress | 30 Degrees |
| Interpupillary Distance Max | 75 MM |
| Interpupillary Distance Min | 55 MM |
| Objective Lens Zoom Min | 4 x |
| Objective Lens Zoom Max | 100 x |
| Working Distance | 17 MM |
| Variable Light Control | Yes |
| Rotating Head | Yes |
| Camera Included | No |
Product General Attributes | |
| Warranty | 5 YEARS |
| Product Weight | 15.87 LBS |
| Product Height | 395 MM (15.55 IN) |
| Product Length | 360 MM (14.17 IN) |
| Product Width | 190 MM (7.48 IN) |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 15.87 lbs |
|---|---|
| Dimensions | 360 × 190 × 395 in |
