Motic BA310 Digital LED – Digital Upright Binocular Microscope
11 people are viewing this product right now
Original price was: $3,398.00.$3,058.20Current price is: $3,058.20.
Shipping calculated at checkout.
Estimated delivery:5 days
BA310 Digital
- Quintuple Nosepiece
- EC Plan Achromatic Objectives
- Compact Mechanical Stage
- 3W Led Light Source In A Full Koehler Setup
Guarantee Safe and Secure Payment Checkout
Description

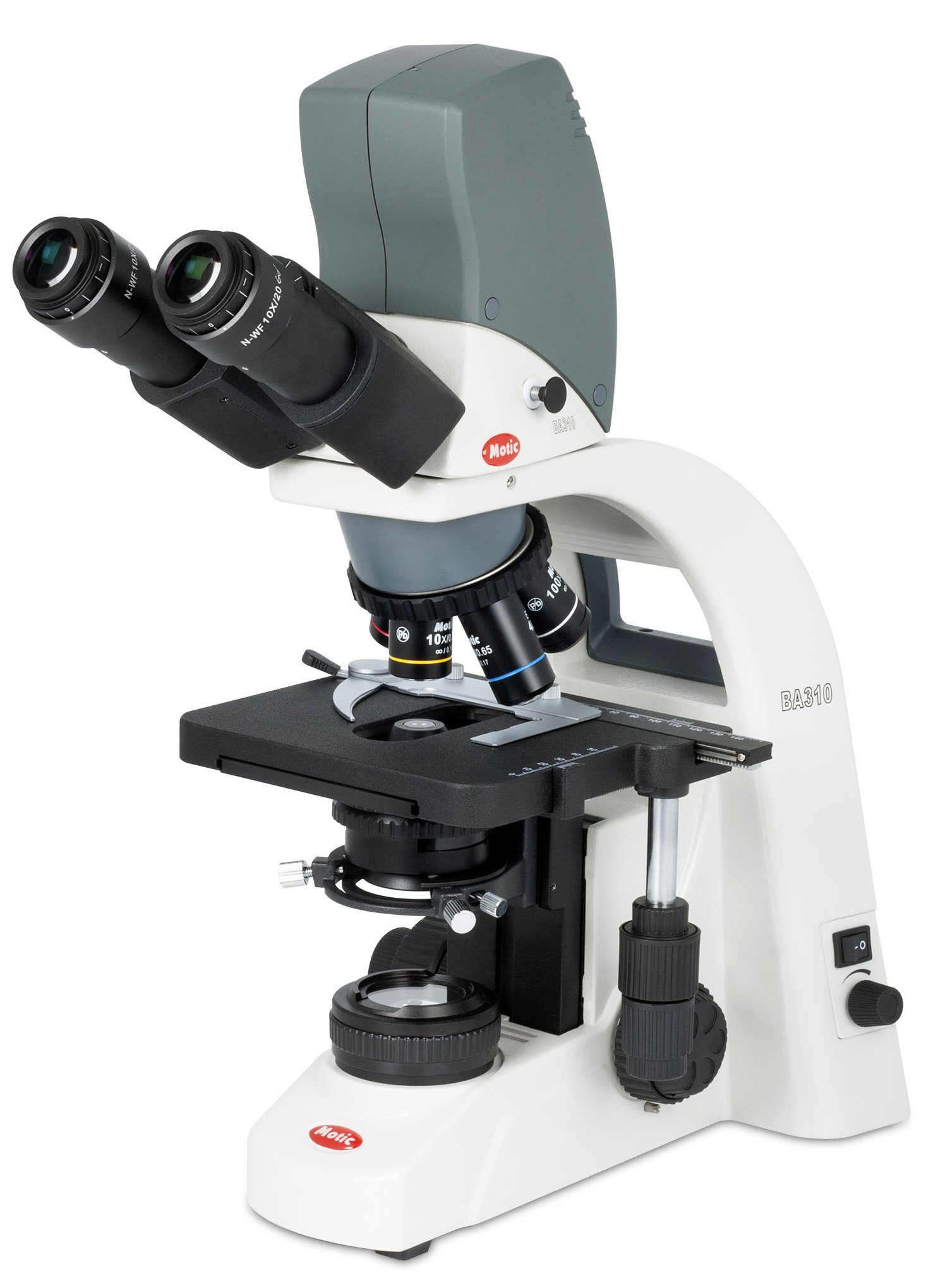

Motic BA310 Digital LED – Digital Upright Binocular Microscope
- Quintuple Nosepiece
- EC Plan Achromatic Objectives
- Compact Mechanical Stage
- 3W Led Light Source In A Full Koehler Setup
Motic’s BA310 is designed specifically for the rigors of daily routine work in universities, clinics and laboratories. Using Motic’s Infinity Optical concept (CCIS®) as a basis for the upgraded EC Plan Achromatic objectives, this model’s Full Koehler configuration provides maximum illumination quality for even the most demanding samples. The fully corrected intermediate image delivers perfect visual and digital results in a 20mm Field of View. The 3W LED light source gives adequate power resources for upgrading the microscope with contrast methods like Phase contrast, Polarization, Darkfield or even Multi-Viewing devices. The Motic BA310 offers a long-term functionality to all user levels in a variety of biomedical applications.
FOR ROUGH USE IN DAILY ROUTINE WORK
Motic’s BA310 is designed for a rough work in daily routine. The hard-coated stage allows a safe and precise evaluation of diverse samples. The BA310 standard eyepiece tubes feature a 30° viewing angle for maximum comfort. The interpupillary distance of 48-75mm can easily be adjusted, following the demands of multiple users. The trinocular tube option with a20/80 light split if activated allows the adaption of digital camera systems and the presentation of microscopic images to a larger lab group.
EC PLAN OPTICS FOR RELIABLE IMAGE RESULTS
The complete series of EC Plan Achromatic objectives, from 4X to 100X magnification, is targeting an improved image contrast both for human eye and digital camera sensor through the photo port. Especially in Phase contrast, the optional objectives (positive & negative Phase) show a remarkable diversity for a wide range of applications. The N-WF eyepieces start with the standard 10X/20 mm Field of View and provide a diopter adjustment (+/-5dpt) for both eyes, ready for the use of optional reticles.
LED ILLUMINATION
The BA310 microscope features a 3W LED light source implemented in a Full-Koehler setup. The importance of LEDs as safe and long-term illumination sources has increased especially in teaching environments as lifetime and reduced heat are superior to Halogen bulbs. The standard condenser with NA 1.25 and aperture diaphragm for visualization of non-stained samples is part of the basic equipment. It can be replaced by an ergonomic turret condenser with all necessary Phase rings plus Darkfield stop.
INTEGRATED IN MOTIC’S SERIES OF UPRIGHT MICROSCOPES
For further use of optional accessories, the BA310 is integrated into Motic’s Upright microscope system. Phase contrast (positive and negative) is possible with slider and turret condenser; simple Darkfield as well as Polarization contrast can easily be performed. Multi-Viewing devices allow a traditional teaching situation with maximum knowledge transfer especially in pathology and histology. The BA310 offers a long-term functionality in university, clinic, and lab.
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Compound |
| Body Style | Binocular |
| Illumination Type | LED |
Product General Attributes | |
| Product Weight | 19.40 LBS |
| Shipping Weight | 22.31 LBS |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 19.4 lbs |
|---|
