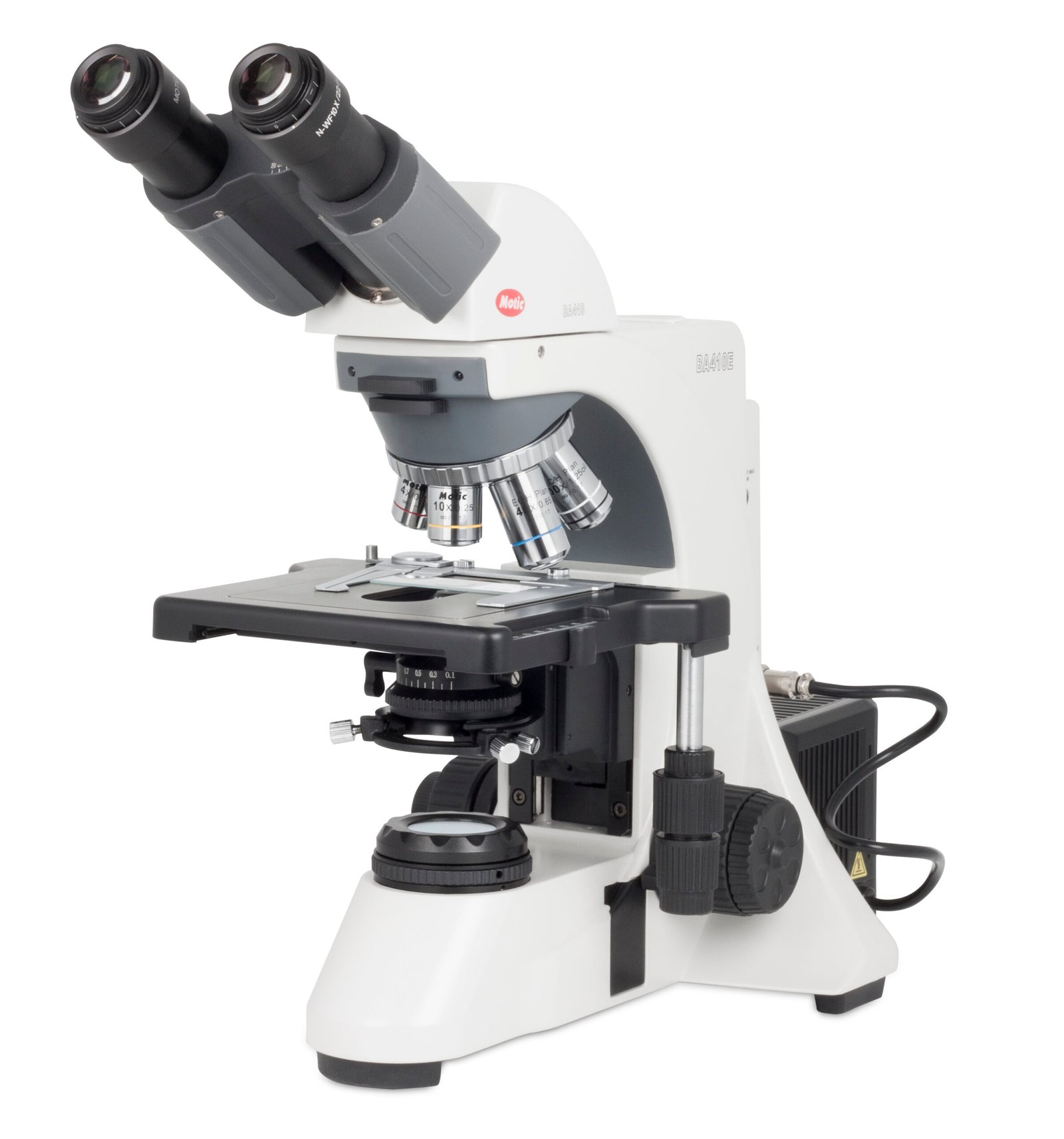

Motic BA410E BINO LED – Binocular Sextuple Microscope with LED Illumination

• Binocular microscope; 30° inclined, 360° rotating
• Widefield high eyepoint eyepieces WFPL 10X / 22mm
• Diopter adjustment on both eyepieces, with rubber eyecup (paired)
• Koehler illumination 3W LED with external lamp house and intensity control
• EC-H Plan Achromat objective classification

This version of the Motic BA410E is a binocular sextuple microscope with LED illumination and EC-H PL4X, EC-H PL10X, EC-H PL40X S, EC-H PL100X S-oil objectives for professional research. Universities and laboratories with applications in hematology, cytology, and histology will benefit from this flexible microscope platform with a superb performance in optics and mechanics.

Following Motic’s CCIS Infinity concept, the new Plan Apochromatic objectives may be chosen to get maximum image fidelity. Expanded resolution power in terms of numerical aperture and stunning color reproduction allows a reliable sample evaluation in all biomedical environments. The established EC-H Plan Achromatic bright field objectives are an integral part of the standard configurations, while Phase contrast is feasible with positive and negative Phase lenses.

The BA410E stand carries an encoded 6-fold nosepiece that memorizes the

light intensity setting for each objective position. This light memory function

replicates the last setting once the respective objective position is swung in again.

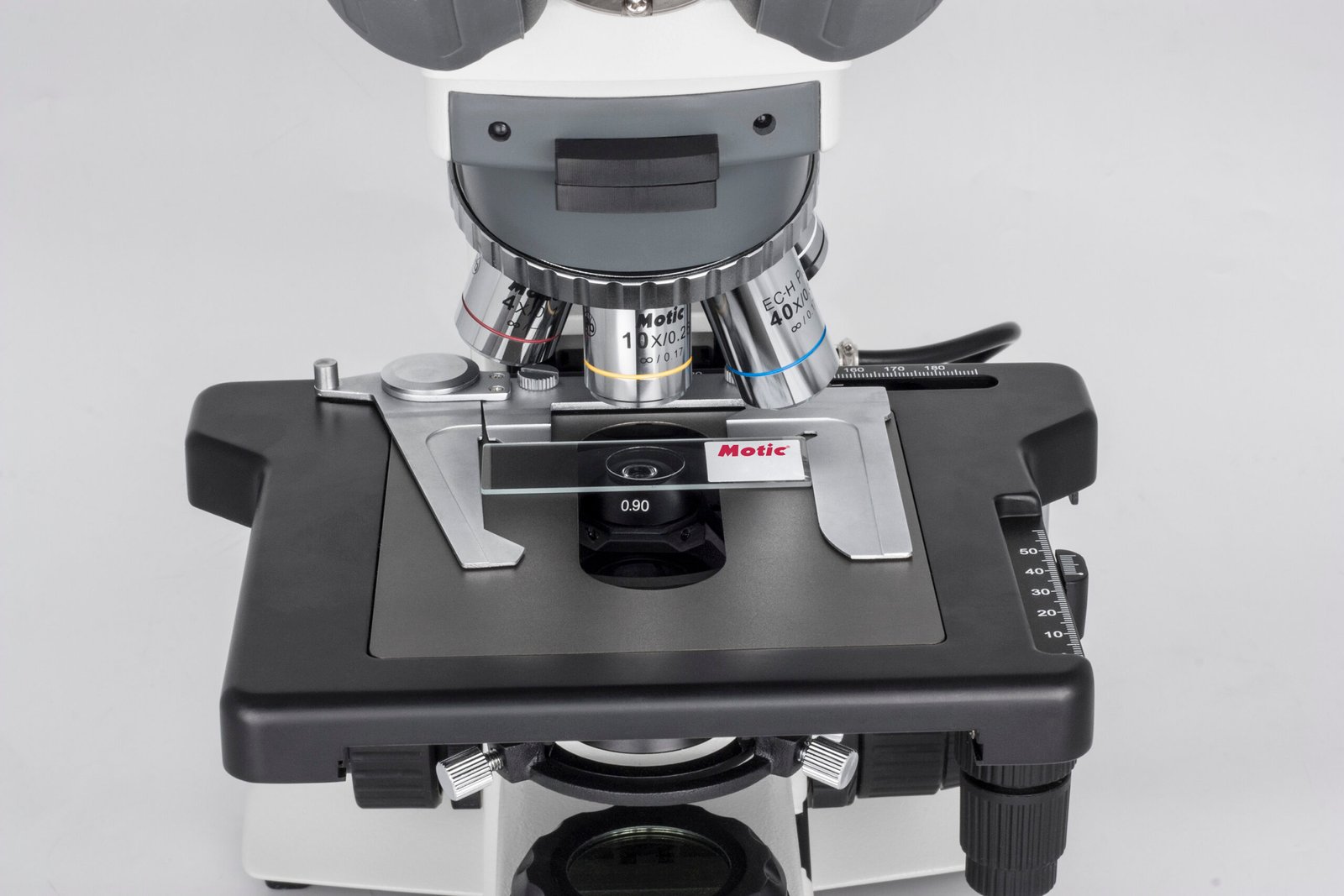

The rackless stage without a prominent gear rack allows a safe and fast throughput

of slides. A ceramic stage insertion withstands abrasion for a long lifetime.
