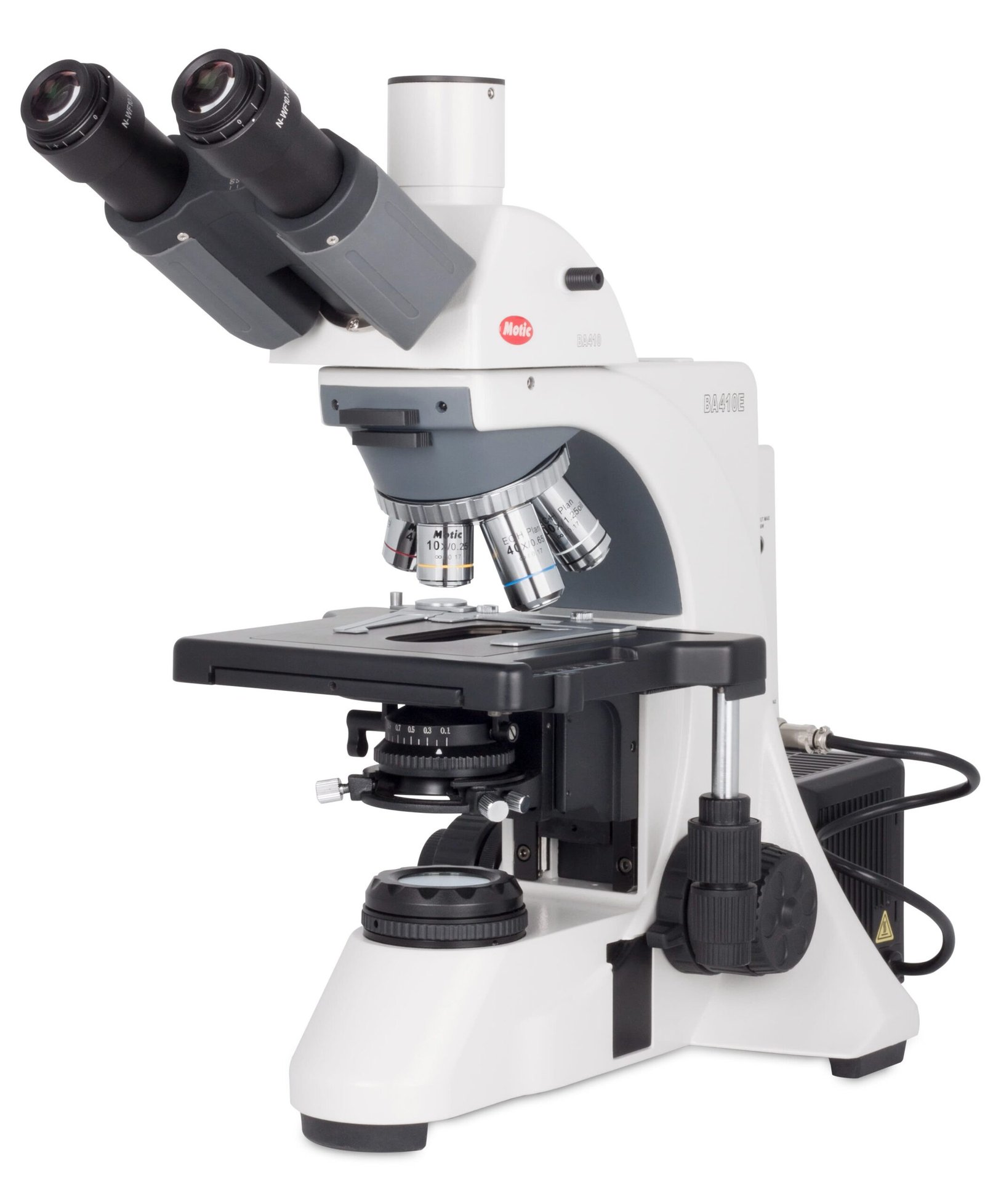

Motic BA410E – Trinocular Sextuple Microscope with LED Illumination

• Trinocular microscope; 30° inclined, 360° rotating, 80/20 light split
• Widefield high eyepoint eyepieces WFPL 10X / 22mm
• Diopter adjustment on both eyepieces, with rubber eyecup (paired)
• Koehler illumination 3W LED with external lamp house and intensity control
• EC-H Plan Achromat objective classification

This version of the Motic BA410E is a sextuple microscope with a trinocular head and EC-H PL4X, EC-H PL10X, EC-H PL40X S, EC-H PL100X S-oil objectives for professional research. Universities and laboratories with applications in hematology, cytology, and histology will benefit from this flexible microscope platform with a superb performance in optics and mechanics.

Following Motic’s CCIS Infinity concept, the new Plan Apochromatic objectives may be chosen to get maximum image fidelity. Expanded resolution power in terms of numerical aperture and stunning color reproduction allows a reliable sample evaluation in all biomedical environments. The established EC-H Plan Achromatic bright field objectives are an integral part of the standard configurations, while Phase contrast is feasible with positive and negative Phase lenses.

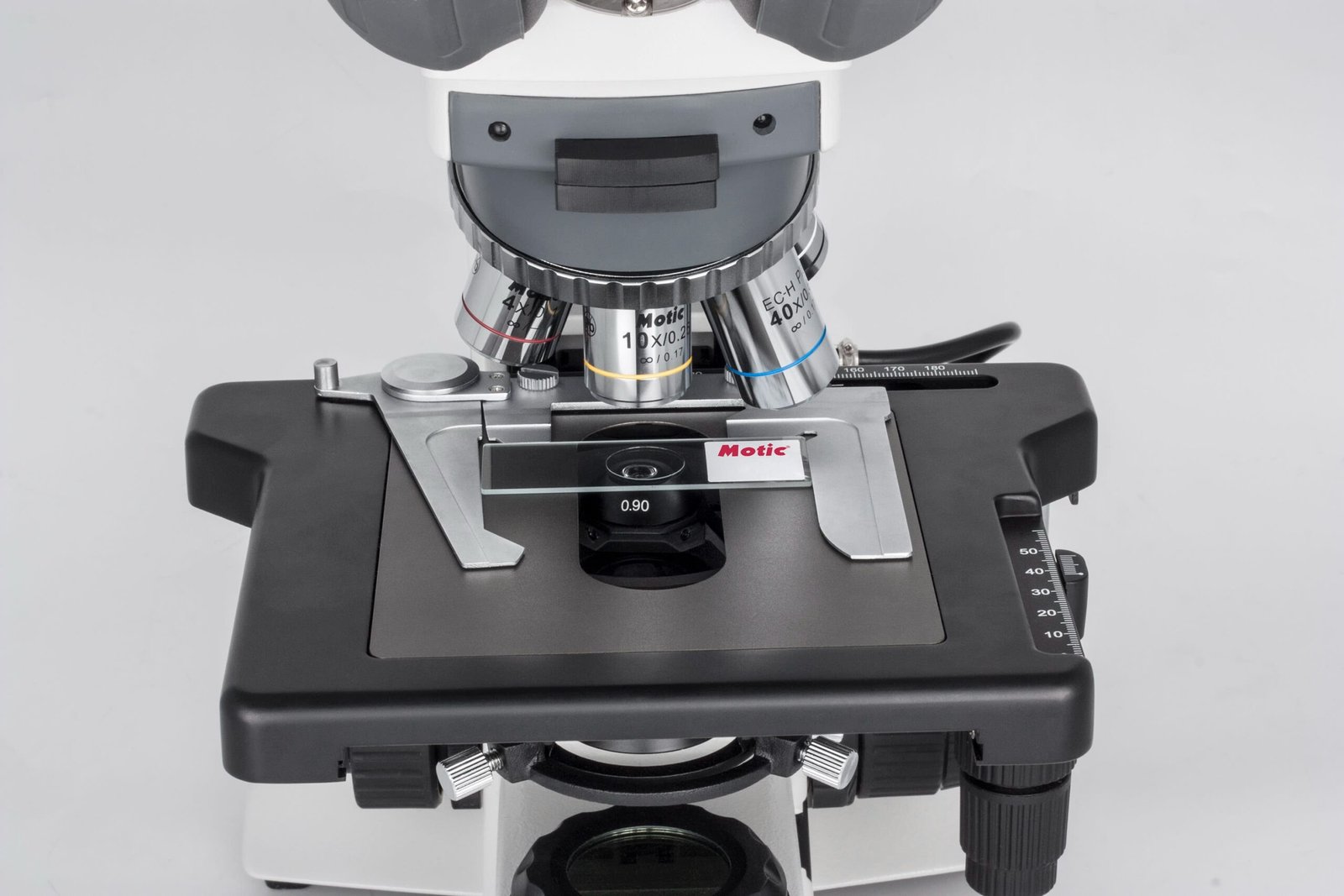

The BA410E stand carries an encoded 6-fold nosepiece that memorizes the light intensity setting for each objective position. This light memory function replicates the last setting once the respective objective position is swung in again. The rackless stage without a prominent gear rack allows a safe and fast throughput of slides. A ceramic stage insertion withstands abrasion for a long lifetime.

Documentation is a key issue in every aspect of microscopy, with highest importance in biomedical applications and industrial quality control. The BA410E follows this requirement like all Motic BA microscopes with traditional methods (photomicrography) or more flexible c-mount solutions.

Traditional photomicrography requires the trinocular version of the BA410E. This setup delivers high resolution images of small fields. Live images can be supplied by the software of the SLR camera manufacturer.

A more convenient approach is provided by Motic’s philosophy of easy digitization. The combination of the BA410E with a member of the Moticam camera series delivers excellent live images with a large field that can easily be saved for future analysis. The necessary c-mount adapter must be chosen in relation to the chip size of the digital camera. All Motic cameras come equipped with a complete software package to transform the BA410E into an analysis and documentation station.
