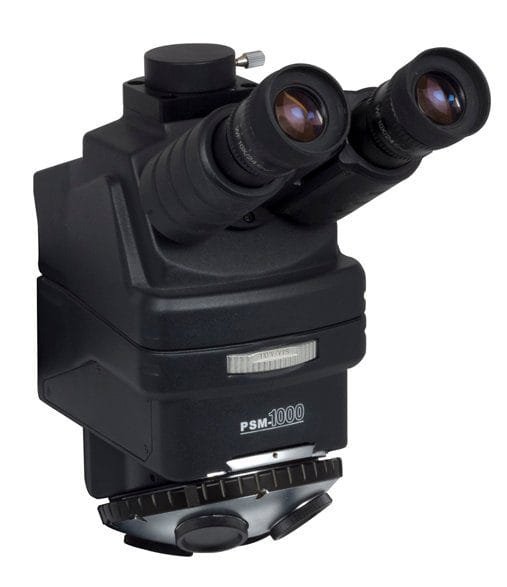

Motic PSM-1000E Head only

The Motic PSM-1000E (1100101700062) Probe Station Microscope head only is a conveniently laid out laser-ready system, ideal for the semiconductor & flat panel display industries. Constructed around specially coated optics and geared for inspection and laser work [355nm – 1064nm] in one system, the PSM-1000E employs a series of features to facilitate both functions. The PSM-1000E can be quickly converted from optical inspection to laser work by utilizing the 3-lens changeover turret and the beam splitter. The 3-lens changeover turret permits the user to select the spectrum to operate in or simply to magnify the image 2X [2000X maximum magnification with a 100X objective], whereas the beam splitter removes the optical prism to achieve the maximum transmission of the laser pulse. Current transmission efficiency tests put the PSM-1000E at 82% in the 1064nm spectrum.

Precise movements are crucial either when using a laser or inspection wafers or flat panels at high magnifications. Even with a resolution of 1 mm, the PSM-1000E’s focusing block can handle mounted weight up to 45lbs. The total stroke for the focusing block is 50mm with the option of being reversed for greater use of space.

The PSM-1000E is equipped standard with an adjustable forward-facing nosepiece. The mechanism of the nosepiece allows you to par center the objective by inserting two par centering keys above the objective for convenience and speed. Gone are the days of hunting and pecking with a hexagon key.
