NK CT-0800-5-MS – Secondary Current Transformer, 1 A to 5 A, Split-Core

Name: NK CT-0800-5-MS - Secondary Current Transformer, 1 A to 5 A, Split-Core - NESTES Instruments
SKU: NK CT-0800-5-MS
Price: 191.88 USD
Availability: InStock

Brand:

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

25 people are viewing this product right now

Original price was: $215.60.Current price is: $191.88.

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

800:1 or 800:5

Split-core case for convenient installation over large wires or bus bars.
1 A and 5 A secondary is compatible with standard power monitors and panel meters designed for the 1 A and 5 A input.
LS series with large sensing window (3.49” x 2.36”) available to measure current from 0–800 A to 0–1400 A.
Plated terminals for reliability.

SKU: NK CT-0800-5-MS Tags: Current Sensors, Current Transformers Categories: Current Transformers

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

NK CT-0800-5-MS

Split-core case for convenient installation over large wires or bus bars.
1 A and 5 A secondary is compatible with standard power monitors and panel meters designed for the 1 A and 5 A input.
LS series with large sensing window (3.49” x 2.36”) available to measure current from 0–800 A to 0–1400 A.
Plated terminals for reliability.

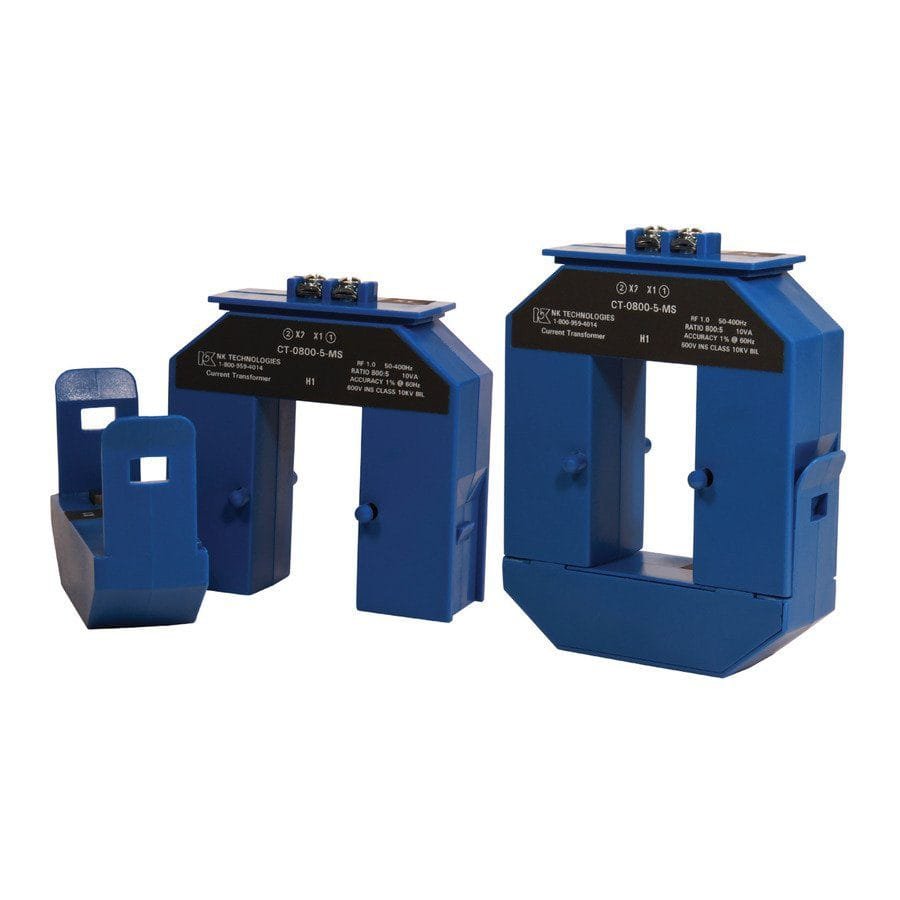

Secondary Current Transformer, 1 A to 5 A, Split-Core

The CT-LS 1 A and 5 A Secondary Current Transformers offer a compact, cost-effective means of measuring primary current. These current transformers provide an easy-to-install method to measure AC current, producing a 0–1 A and 0–5 A output proportional to the current flowing through the sensing window. The CT-LS series offers a large sensing window and a split-core design for easy installation.
