Oberon 8 Cal HRC2 Electric Vehicle Arc Flash and Shock Kit

This EV Arc Flash Kit provides everything needed to protect a worker while doing maintenance on an electric car or truck. It comes equipped with an Oberon hard cap and TCG face shield, balaclava, coveralls with escape strap, Class 0 glove kit, safety glasses, earplugs, and storage bucket. The 10-foot-long Kevlar strap, with a tensile strength of 3500 lbs, is permanently affixed to the coveralls to aid in an all-in-one solution for communication or rescue. A convenient pocket is placed on the back of the coveralls to safely tuck away the strap when not in use. The waterproof bucket comes equipped with a locking top to keep the kit dry and protected from harsh elements.

The Kit meets ANSI /ISEA 125 Level 2 Conformity and Arc Flash PPE Category 2 standards with an arc rating of 8cal/cm2. Please refer to NFPA 70E or CSA Z462 Standards for specific selection requirements.

Please refer to the sizing guide in the documents section for height and size specifications.

• Configuration: Coverall with Escape Strap
• Arc rating: 8cal/cm²
• Arc Flash PPE Category: 2
• Color: Navy Blue
• Standards: NFPA 70E, CSA Z462, ASTM F1506/F1959/F2178, ANSI/ISEA 125, Z87.1, Z89.1

• Configuration: Face Shield and Cap
• Arc rating: 17 cal/cm²
• Arc Flash PPE Category: 2
• Included Accessories: Scratch-resistant, Anti-fog coating
• Standards: NFPA 70E, CSA Z462, CSA Z94.1, ASTM F2178, ANSI/ISEA 125, Z87.1, Z89.1

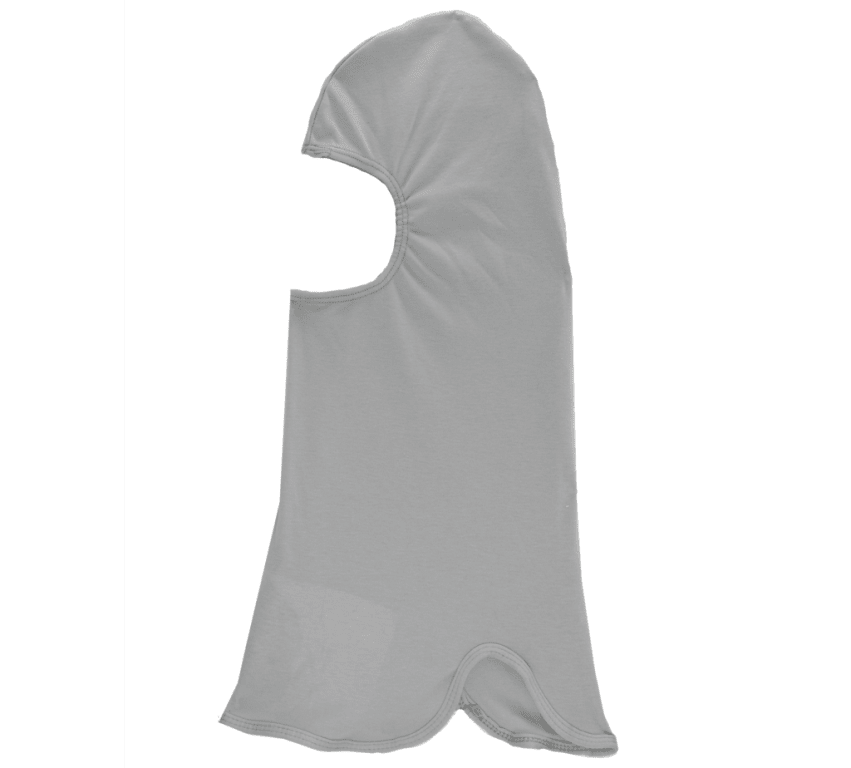

• Configuration: Balaclava
• Arc rating: 11 cal/cm²
• Arc Flash PPE Category: 2
• Color: Gray
• Standards: ANSI/ISEA 125 Level 2 Conformity

• Goatskin leather protector
• 11in rolled cuffs
• Canvas storage bag
• Standard: ASTM D120 and ASTM F696
• Protection Class 0: Up to 1000 VAC; 1500 VDC

• Bucket for Storage – fits face shield and cap, coveralls, balaclava, earplugs, safety glasses

True Color Grey (TCG) is a medium-density filter that allows all wavelengths of visible light to pass through without causing any color distortion. The end result is a nearly clear experience for the worker when performing complex electrical tasks. With the advent of this new technology, electrical workers will no longer struggle to see colored wires or colored electrical tape while working energized.
