Oberon ARCBKT-40KA-CUBE – Arc Flash Curtain Cube

• Cube framework (4.5-ft x 6.5-ft) made from durable schedule 80 PVC frame
• Three Aramid panels (4-ft x 5-ft) reinforced by Kevlar rope
• Meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40kA (BTP 517)
• Durable Aramid fabric is tested and designed to divert energy away from the worker while performing electrical tasks
• The cube can be moved from site to site and set up in various positions

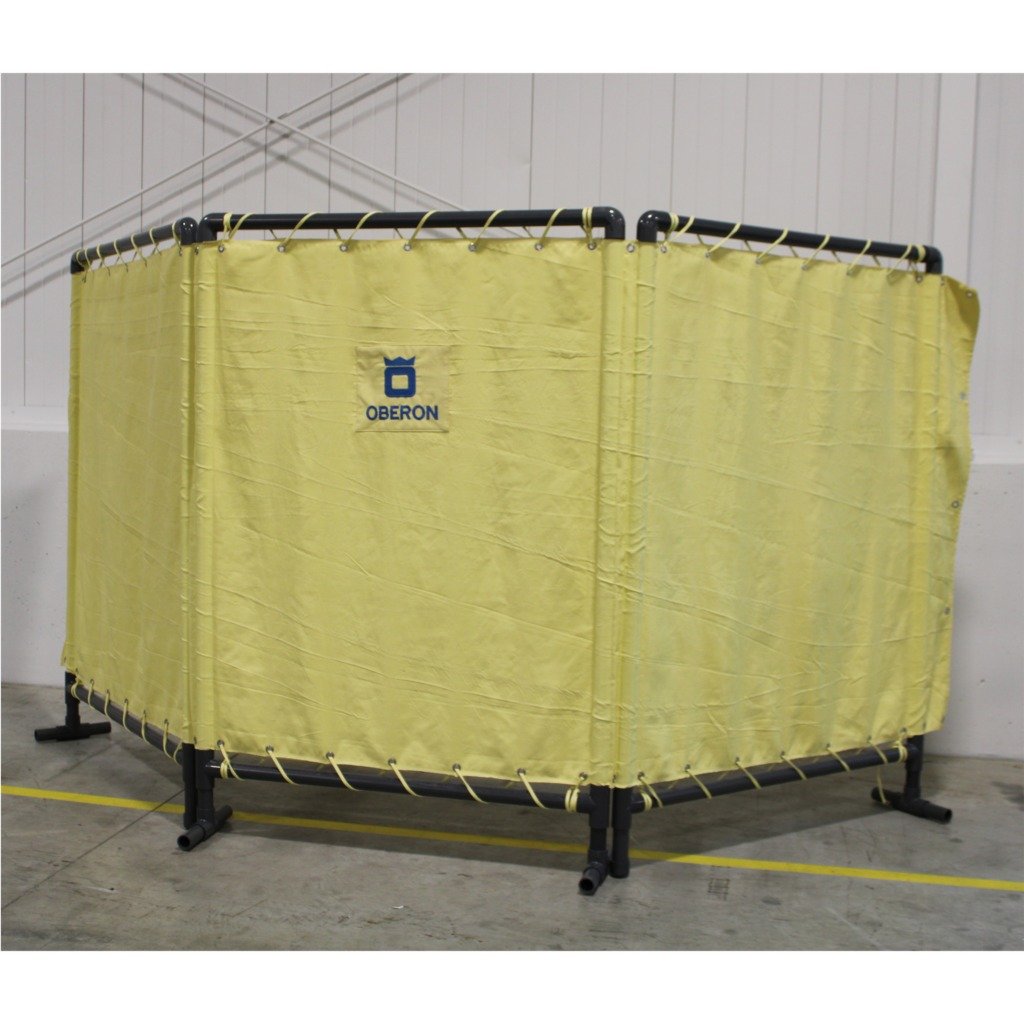

The Oberon ARCBKT-40KA-CUBE is an arc flash curtain cube consisting of 4.5-ft x 6.5-ft cube framework made from durable Schedule 80 PVC frame and three Aramid panels measuring 4-ft x 5-ft. The panels are reinforced by the use of Kevlar rope for added strength and stability.

The portable cube is made from a durable Aramid fabric that is tested and designed to divert energy away from the worker while performing everyday electrical tasks. It can also serve as an additional barrier to safeguard workers that are in close proximity to electrical equipment. Protect workers from a variety of work environments such as underground vaults, confined spaces, and anywhere electrical equipment is located.

The Arc Flash Curtain Cube meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40 kA (BTP 517). Please note: DOES NOT provide insulation from shock.

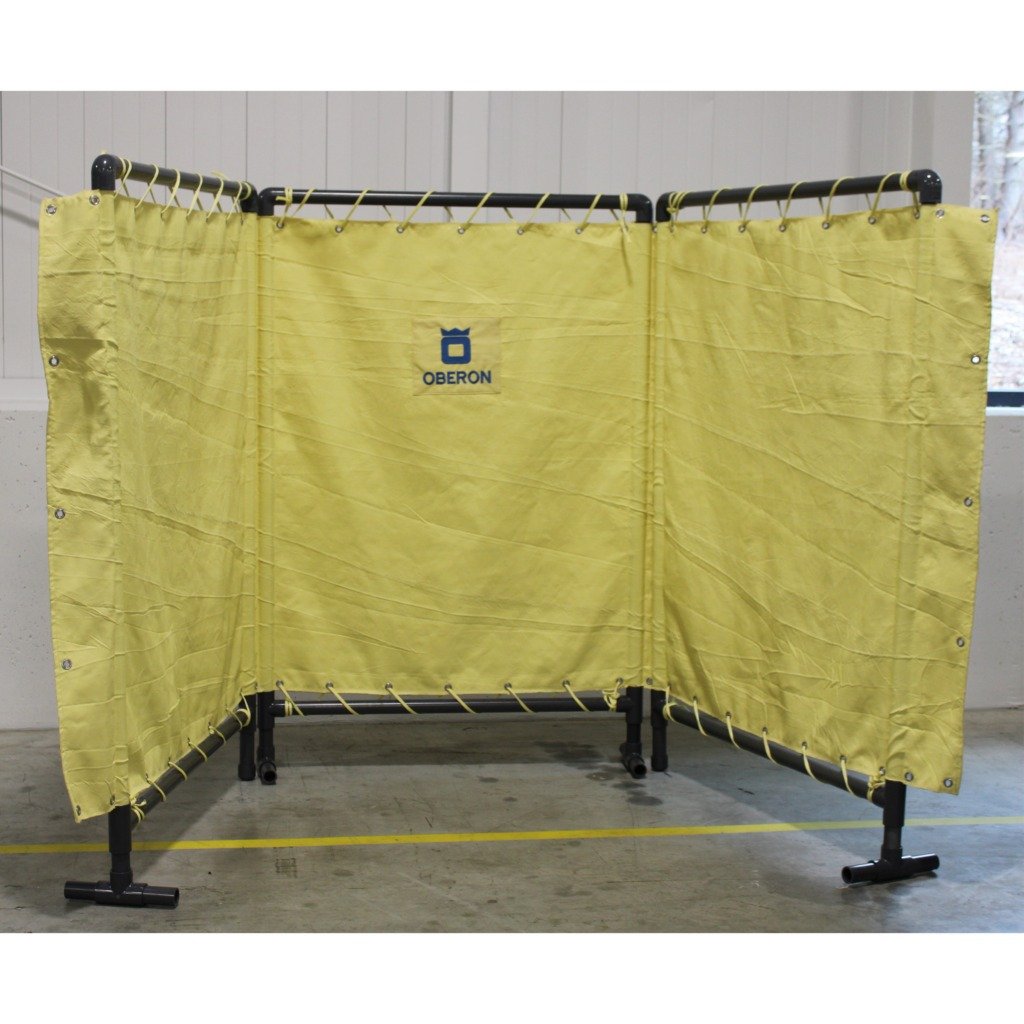

The Arc Flash Curtain Cube can be moved from site to site and set up in various positions to protect around a workspace.

The Curtain Cube’s sides are measured at 5-feet tall by 4-feet wide.

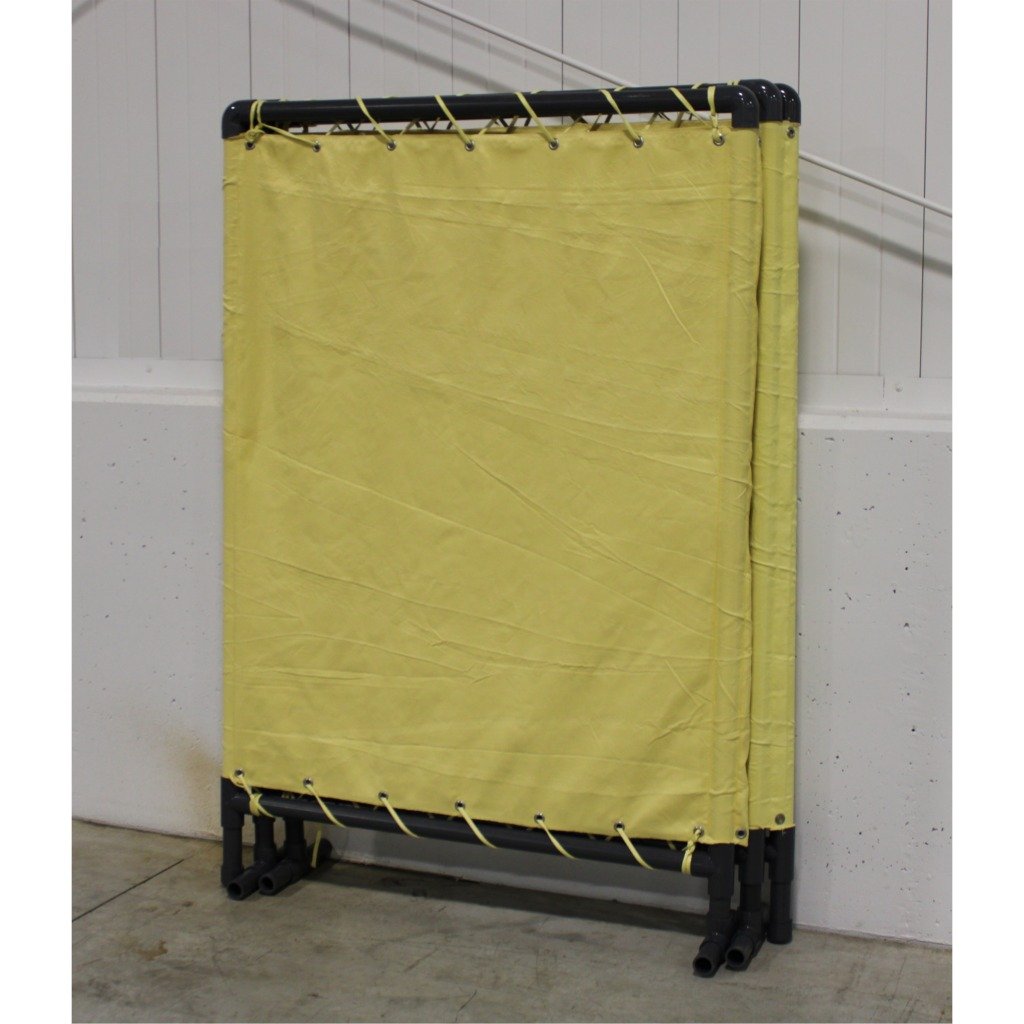

The Oberon Arc Flash Curtain Cube is designed to fold in on itself for easy storage.
