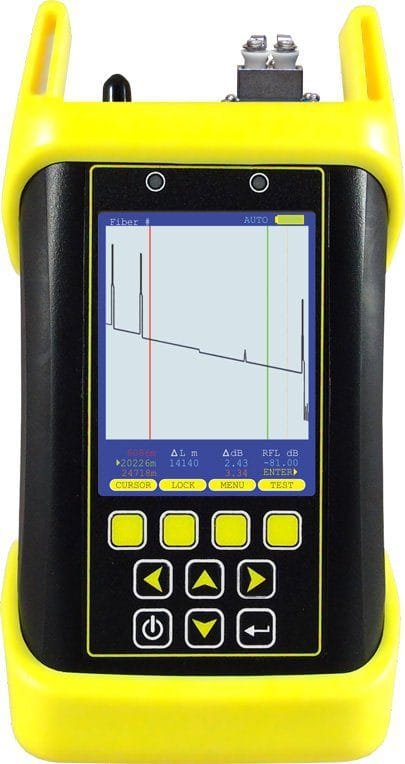

OWL WTO2-S35M OWLTrek II 1310/1550nm Singlemode OTDR with integrated OPM

OWL WTO2-S35M OWLTrek II 1310/1550nm Singlemode OTDR with integrated OPM

With an unbeatable combination of a small pocket-sized form factor, a large high-resolution 2.8” color LCD display, and some of the lowest pricing in the industry, the OWLTrek II OTDR from OWL is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on singlemode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class.

Affordability: In a time when it is becoming increasingly difficult to justify equipping an entire technical staff with high-end equipment, companies are even more cost-conscious than before. Outfit a majority of the installation/repair trucks with OWLTrek II OTDRs, and set aside a few high-end “expert” vehicles for high-priority roll-outs.

Usability: The OWLTrek II OTDR may be pocket-sized, but the large 2.8” high-resolution color LCD display can show even the longest traces with ease. And, for greater viewing flexibility and trace detail, OWL has implemented state-of-the-art MEMS technology which “flips” the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail.

Automatic Event Location: Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek II OTDR now brings this feature to the entry-level OTDR market. While in event location mode, the OWLTrek II OTDR marks events on the trace, has an event table showing the location, type, reflectance level, and loss of each event, and auto-zooms to the selected event.

Dynamic Range vs. Distance: OWLTrek II singlemode OTDRs are capable of finding breaks in singlemode optical fibers up to 80 miles to within +/- 6 feet. Additional splices and other loss producing events will limit end distance estimates. This is true for all OTDRs. However, passive singlemode Telco links are almost always less than 12 miles long. At this distance, OWLTrek II OTDRs have break finding capability of about +/- 1 meter! In fact, increased dynamic range is actually a disadvantage in almost all cases because of the increased OTDR cost (usually thousands of dollars more).

Live Mode

Live mode is an advanced feature normally found in high-end OTDRs. Live mode continuously shoots OTDR traces every few seconds, allowing users to monitor changes in the optical fiber in real-time. In addition, when the OWLTrek is attached to a PC, OWLView software includes a Live Viewer mode that takes the OTDR trace and expands it onto the PC display for easier viewing.

Automatic Screen Rotation

For greater viewing flexibility and trace detail, OWL has implemented state-of-the-art MEMS technology which “flips” the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail when zooming in on events.

OLWView OTDR Software

OWLView for OTDR software provides users with a powerful tool for analysis of fiber traces. and is included free of charge with each OWLTrek OTDR.

• Hard-disk trace storage
• Professional printed reports
• Event tables
• Event auto-marking
• Zoom in / out functionality
• Dual cursor positioning / locking
• Telcordia GR-196 .SOR version 2 file format
• Live Mode

Automatic Event Location / Event Tables

Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek OTDR now brings this feature to the entry-level OTDR market. The OWLTrek OTDR includes an event table showing the location, type, reflectance level, and loss of each event. Users can select an event to view, and automatically zoom in on the event on the OTDR display.
