OWL ZO2 ZOOM 2 (Zeroed Output Optical Meter)

OWL ZO2 ZOOM 2 (Zeroed Output Optical Meter)

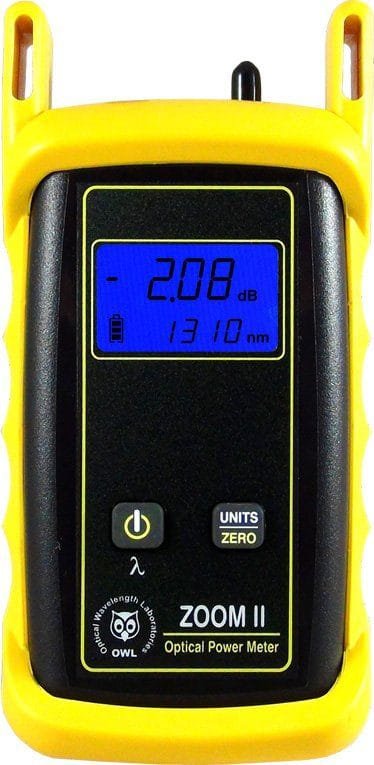

The ZOOM 2 is a high accuracy, high resolution, microprocessor controlled optical power meter. It has a wide 65 dB dynamic range, and is calibrated to measure 850, 1300, 1310, and 1550nm, making it ideal for both singlemode and multimode fiber testing, as well as 1490nm for measurement of FTTx PON networks.

It has an attractive handheld case with an easy-to-read graphical liquid crystal display and 2-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector for easy connection to ST, SC, and FC connectors, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The built-in charger port allows for wall power operation, as well as for charging 9- volt re-chargeable batteries.

The ZOOM 2 can store reference values for each wavelength to be used for optical loss measurements, and can display measurements in dBm, dB, and microwatts. The on-screen battery capacity indicator doubles as the battery charger display.

Other Features

• Simple 2-key operation
• Power measurements shown in dBm, dB, or microwatts
• Charger port allows for wall power operation or for charging 9-volt re-chargeable batteries

General Features

1. Charger Port / Optional VFL Port – Allows for charging of re-chargable 9-volt batteries, as well as wall power operation (9VDC transformer and 9-volt re-chargeable battery not included).
2. NOT USED
3. 2.5mm Universal Connector Port – accepts many popular 2.5mm ferrule connectors, including ST, SC, and FC. Also, for an additional charge, a 1.25mm universal cap is available (for connection to LC, MU, and other SFF connectors).
4. LCD Display – shows optical power/loss levels, power units, wavelength, and battery status.
5. Single press changes wavelength; holding button powers the unit ON or OFF.
6. Single press toggles the power units between dBm, dB, and uW; holding sets the reference for the selected wavelength.
