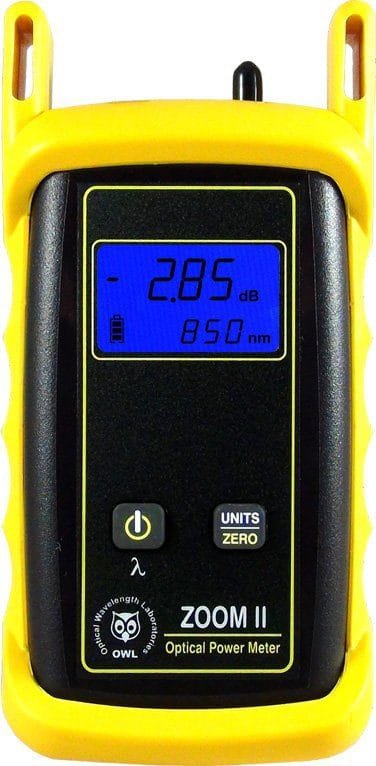

OWL ZO2S Silicon ZOOM 2 Optical Power Meter

OWL ZO2S Silicon ZOOM 2 Optical Power Meter

The Silicon ZOOM 2 is a high accuracy, high resolution, microprocessor controlled optical power meter. It has a wide 65 dB dynamic range, and is NIST traceable at 850nm, making it ideal for testing the majority of multimode fiber testing in premises networks.

It has an attractive handheld case with an easy-to-read graphical liquid crystal display and 2-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector for easy connection to ST, SC, and FC connectors, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The built-in charger port allows for wall power operation, as well as for charging 9- volt re-chargeable batteries.

The Silicon ZOOM 2 can store reference values for each wavelength to be used for optical loss measurements, and can display measurements in dBm, dB, and microwatts. The on-screen battery capacity indicator doubles as the battery charger display.

NOTE: Applications such as Telco and CATV only require the use of an optical power meter to measure optical power of their transmitters.
However, a majority of applications, such as optical loss measurements, will require the user to have a stabilized light source.
OWL has several test kit options using the Silicon ZOOM 2 for multimode testing.
