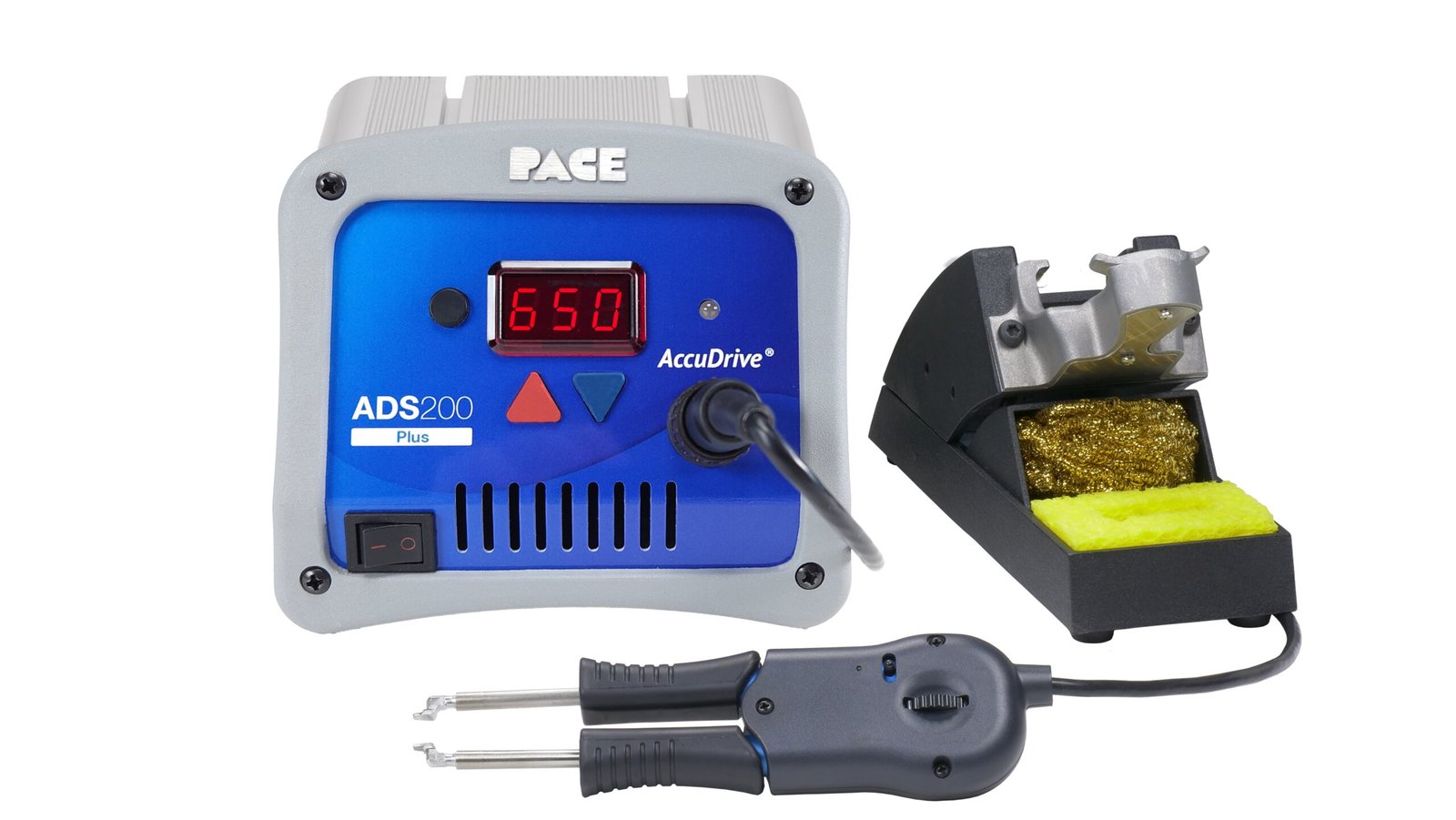

Pace ADS200 – Soldering Station with MT-200 MiniTweez Handpiece, ISB Stand and Tip (8007-0589)

In the case of 0201s, perfectly aligned tips are critical for success, thus the MT-200 has been specifically engineered for multi-axis tip alignment and rotational (theta) alignment that provides ultimate control and targeting accuracy. A Tip-Gap Adjustment Wheel adjusts the gap between the tips to reduce the distance from tip-end to tip-end, reducing grip stress and lessening operator fatigue during repetitive operations.

Designed exclusively for PACE’s AccuDrive power sources, the MT-200 uses patented, higher powered Blue-Series Tip-Heater Cartridges, providing up to 120 Watts of power per tip pair. A wide variety of tip geometries are available, and tips can be changed within seconds, heat up quickly, yet cost almost half of other competitive tweezer cartridges.

The included Instant SetBack (ISB) Tool Stand automatically reduces tip temperature when the MT-200 is placed in the stand, greatly increasing tip life. Also comes with 1mm Chip Tips PN 1130-1003-P1.
