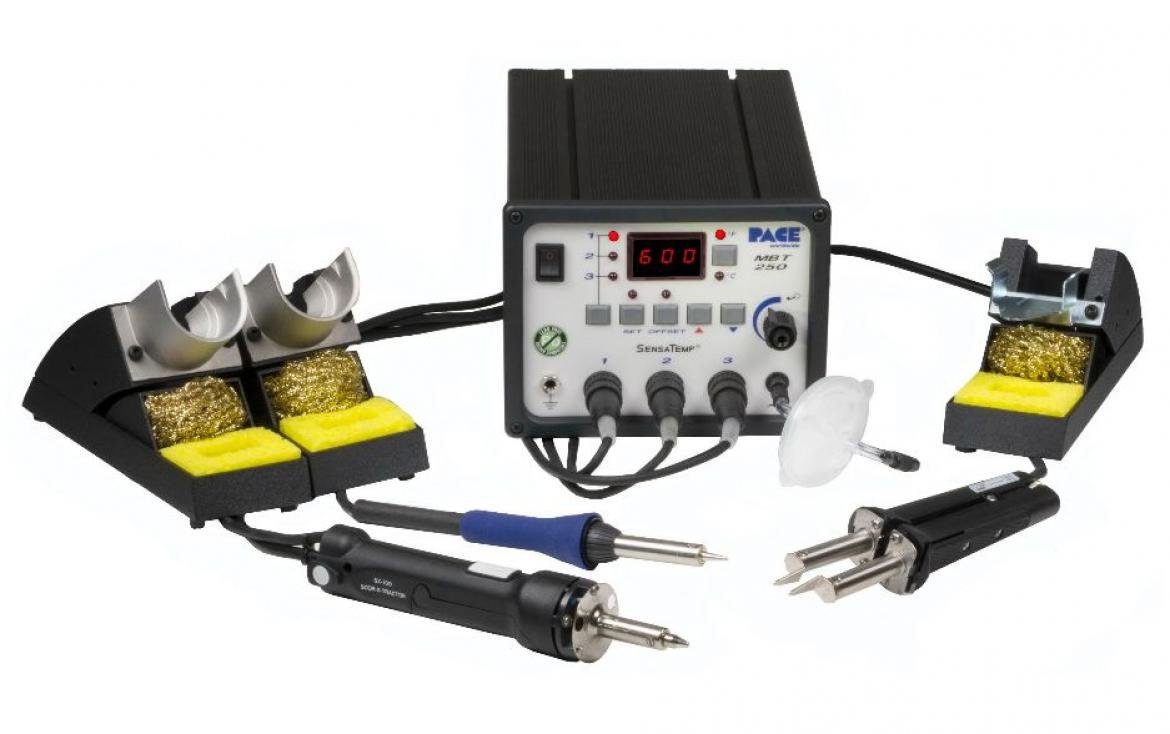

Pace MBT250-SDT Rework System – with PS-90 Iron, SX-100 Desoldering Iron and TT-65 Tweezer

• Soldering, desoldering, hot air
• Three independently controlled channels
• All channels can be used simultaneously
• Digital controls
• Uses SensaTemp handpieces

The MBT 250 Series of Soldering, Desoldering & Rework Systems are simply the most popular PACE series ever produced, for good reason. First introduced in the early 90’s, tens of thousands of units have been manufactured, many of which are still in use after 19 years! Renowned for its reliability, sustainability and longevity, PACE continues to support the MBT 250 Series with upgrades and enhancements. That’s why MBT 250’s are utilized at all major Army, Navy, Air Force, Marine Corps Depots, in thousands of intermediate level maintenance shops, and on commercial repair shop benches worldwide.

The self-contained MBT 250 Power Supply (PPS-85) features three individually powered and controlled handpiece channels, providing the capability to run 3 different SensaTemp handpieces simultaneously, and at different temperatures! A digital readout displays the current channel’s temperature information, error codes and programming status. The durable extruded aluminum chassis is ultra-rugged, ESD-safe and takes up minimal space.

Compatible Tips

The MBT250 SDT (solder, desolder, tweezer) includes the PS-90 iron, SX-100 desoldering iron and TT-65 tweezer. Compatible tips for each can be viewed by clicking the links below.

• Tips for the PS-90 soldering iron

  o Standard tips

  o Surface mount removal tips

• Tips for the SX-100 desoldering iron

  o Standard tips

  o Surface mount tips

• Tips for the TT-65 tweezer

  o Chip removal

  o PLCC removal

  o Thin-walled surface mount removal

  o LCC removal

The MBT 250 is compatible with the following SensaTemp handpieces:

• SX-100 Sodr-X-Tractor desoldering iron
• TT-65 ThermoTweez tweezer
• TP-65 ThermoPik
• PS-90 soldering iron
• TJ-70 ThermoJet hot air pencil
• SX-70 Sodr-X-Tractor desoldering iron
• PV-65 vacuum pick up wand
