PCE Instruments PCE-CSM 10 – Colorimeter (8mm Aperture) with 3.5” Touch Screen
33 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Colorimeter (8mm Aperture) with 3.5? Touch Screen
- Measuring aperture: 8 mm
- Measuring geometry: 8 degree/d
- 3.5″ touch screen display
- Wavelength range: 400 – 700mm
- Colour spaces: CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
- Black and white calibration
- Rechargeable lithium-ion battery
- Sensor: Silicon photoelectric diode
- Reflection factor range: 0 … 200 %
- Includes PC software
Guarantee Safe and Secure Payment Checkout
Description
PCE Instruments PCE-CSM 10
- Measuring aperture: 8 mm
- Measuring geometry: 8 degree/d
- 3.5″ touch screen display
- Wavelength range: 400 – 700mm
- Colour spaces: CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
Colorimeter (8mm Aperture) with 3.5” Touch Screen
Colorimeter PCE-CSM 10 for quality control / PC software included / Li-ion battery / different color spaces / black and white calibration / determination of reference values and samples / white calibration / 3.5″ touch screen

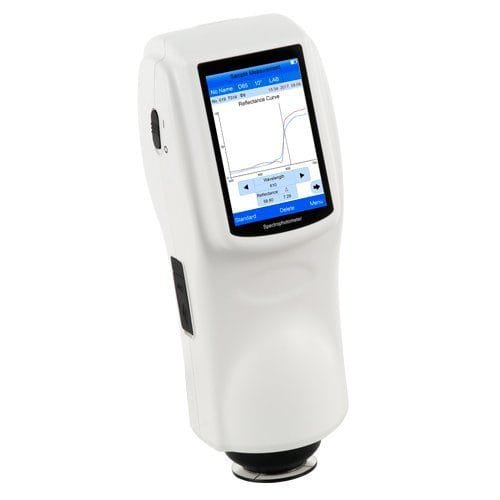

The colorimeter PCE-CSM 10 was developed for quality control, offers a high accuracy and comes with a 3.5″ touch screen display. When using the colorimeter, you can choose between different color spaces (CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 1000 reference values and up to 15000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
Color and Appearance/Spectrophotometers Template | |
|---|---|
| Type (Spectrophotometers) | Portable |
| Wavelength Range Min | 400 nm |
| Wavelength Range Max | 700 nm |
| Standard Observers | 10°, 2° |
| Illuminant | A, C, D50, D55, D65, D75, F1, F10, F11, F12, F2, F3, F4, F5, F6, F7, F8, F9 |
Product General Attributes | |
| Warranty | 2 YEARS |
| Interfaces I/O | RS-232, USB |
| Product Weight | 600 GRAMS (1.32 LBS) |
| Product Height | 90 MM (3.54 IN) |
| Product Length | 77 MM (3.03 IN) |
| Product Width | 230 MM (9.06 IN) |
| Shipping Weight | 2.80 LBS |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Shipping Height | 11.00 IN |
| Shipping Length | 13.00 IN |
| Shipping Width | 5.00 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2.8 lbs |
|---|---|
| Dimensions | 77 × 230 × 90 in |
