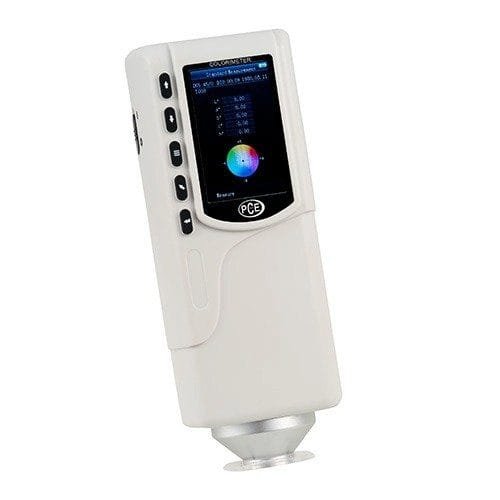

PCE Instruments PCE-CSM 4 – Handheld Colorimeter (20mm Measuring Aperture)

• Measuring aperture: 20mm
• Geometry: 45 degrees/0
• Sensor: Silicon photelectric diode
• Color spaces: CIEL*a*b*C*h, CIEL a* b*, CIEXYZ
• Color difference formula: Delta E*ab, Delta L*ab, Delta E*C*H

Spectrophotometer for quality control / digital software included / Li-ion battery / black-and-white contrast calibratable/measuring modes for various parameters/color analysis of black, white, red, green, yellow and blue

The Spectrophotometer proves to be a good multitasking device. It is designed to measure the color spectrum of various objects. Light consists of a broad spectrum of colors that are not always purely white, black or blue. A light source illuminates an object, which then absorbs part of that light and reflects another one. That reflected light can be then detected by a sensor in order to determine the reflected wavelengths and thus calculate its color. Spectrophotometers are often applied in areas of quality control in industrial sectors. Spectrophotometers of the PCE-CSM series are applied especially in industries where the characteristics of colors play a big role. Whether it is dental technology, painting industries or the production of plastic bags, the Spectrophotometer PCE-CSM 4 is an ideal product for quality management and thus assures the highest reliability, whenever it is important to assure a certain standard in optic quality.

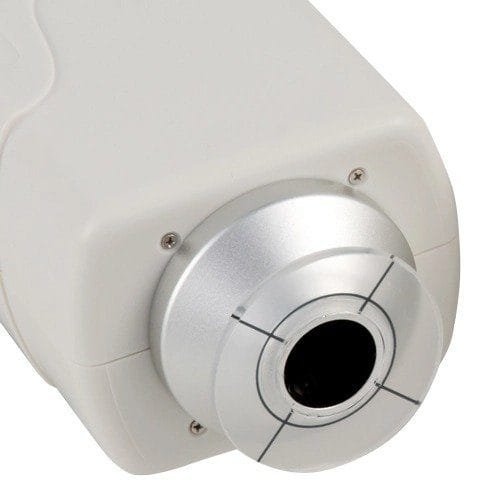

The Spectrophotometer supports an ergonomic design and features user-friendly menu navigation. The Spectrophotometer PCE-CSM 4 has a large measuring aperture of 20 mm. The supported color spaces of the Spectrophotometer PCE-CSM 4 are CIEL*a*b*C*h, CIEL*a*b and CIEXYZ. Thus the Spectrophotometer is designed for application in professional industries.

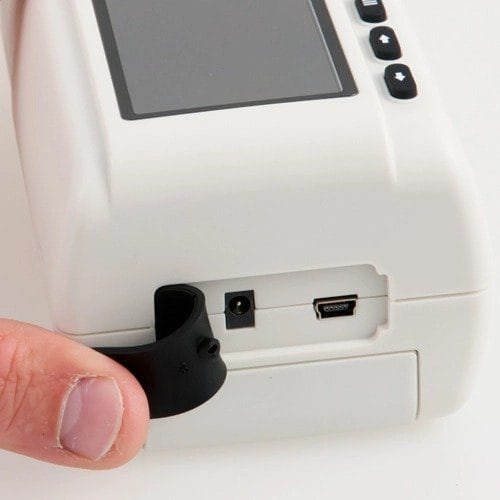

Another advantage of the Spectrophotometer of the PCE-CSM series is that it supports a vertical justification. This means that the whole device does not need to be placed on the object to analyze, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles, and even food. The Spectrophotometer PCE-CSM 4 is therefore ideally applied for measurements of e.g. meat, bananas, or tomatoes. Due to the software “CQCS3” that is included in the delivery, the measured data can be read out on a computer or laptop for a digital overview.

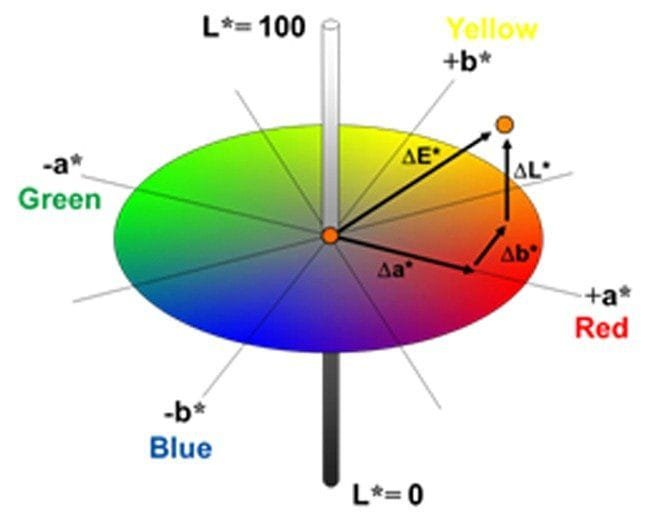

Here you can see the color space L*a*b. This color space covers all colors that are visible to the naked eye. L=100 stands for white and L=0 for black. “a+” and “a-” or “b+” and “b-” stands for the color contrasts red, green, yellow and blue.

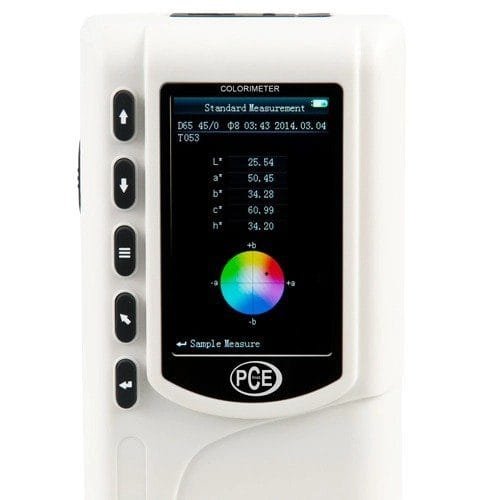

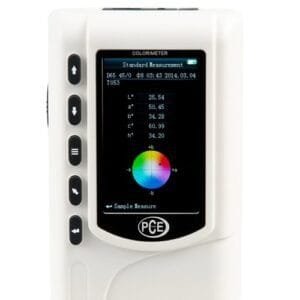

The menu of the Colorimeter PCE-CSM 4 contains all characteristics and settings that can be performed at the Colorimeter PCE-CSM 4. Such are the basic settings like time, language, date, but also settings about the recording and the color spaces that shall be displayed by the Colorimeter PCE-CSM 4.
