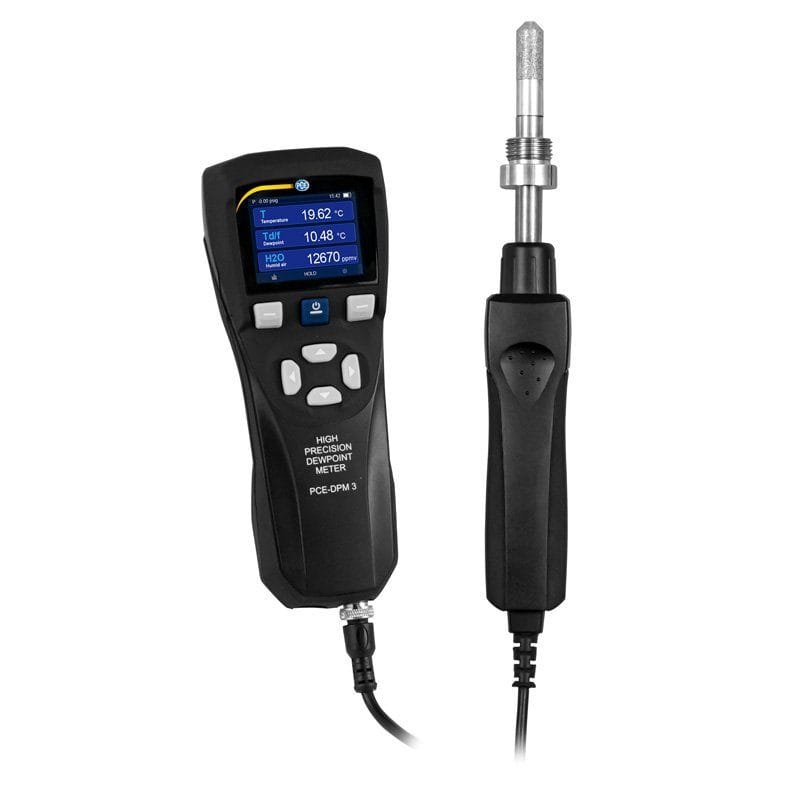

PCE Instruments PCE-DPM 3 – Portable Thermo-Hygrometer (Temperature, Humidity, Dew Point, H2O)

• Temperature measurement range: 14 – 140 F (-10 – 60 C)
• Relative humidity measurement range: 0 – 100%
• Dew point measurement range: -58 – 86 F (-50 – 30 C)
• H2O measurement range: 40 – 20,000 ppm
• G ½” connection thread

Hygrometer PCE-DPM 3

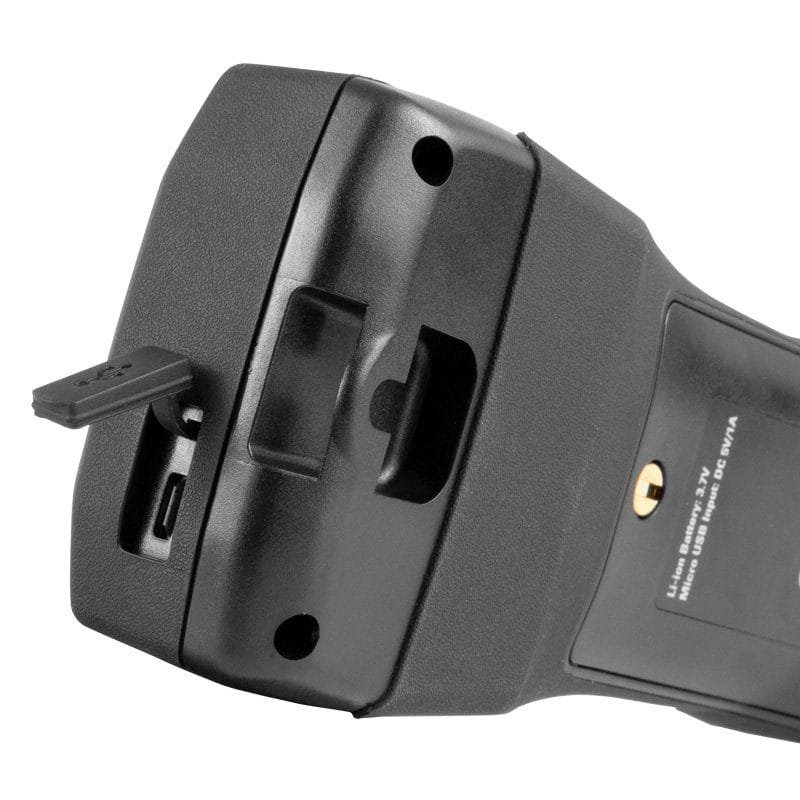

Sintered cap to protect against moisture and dust / Data can be read out via any computer / Data memory for approx. 50,000 measurement data / CSV format / Battery can be recharged via micro-USB / Easy operation

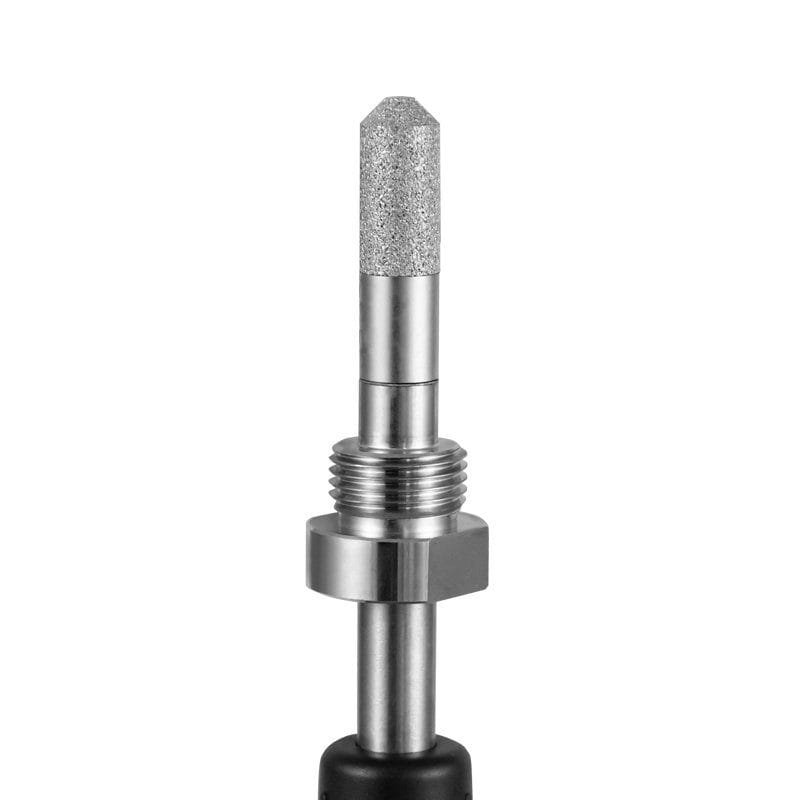

The hygrometer is a mobile testing device for monitoring the quality of compressed air on stationary and mobile compressed air generators. This hygrometer measures the temperature, the relative humidity, H2O and calculates the current dew point up to an ambient pressure of 20 bar. Thanks to the sintered cap, the hygrometer in the pressure lines is protected from dirt, moisture and high flow speeds. This increases the service life of the hygrometer’s sensors.

The data memory of the hygrometer enables the course of the measurement parameters to be recorded in a pressure line. The data recorded by the hygrometer is permanently stored in the internal memory. The memory can be read out directly on the hygrometer. The hygrometer can also be connected to an operating system independent computer via the micro-USB interface. This is made possible because the hygrometer is recognized as a mass data storage device. The data saved by the pressure dew point measuring device are saved in CSV format. The stored measurement data can thus be evaluated using any spreadsheet program.
