PCE Instruments PCE-MFM 3500 – Handheld Magnetometer with External Sensor (30000 G)

• DC Milli Tesla measuring range: 300 mT / 2000 mT / 2000.1 – 30000 mT
• DC Gauss measuring range: 3000 G / 20,000 G / 20,001 – 30,000 G
• AC Milli Tesla measuring range: 150 mT / 1500 mT
• AC Gauss measuring range: 1500 G / 15000 G
• Temperature measuring range: -20 – 50 C (-4 – 122 F)

Magnetometer PCE-MFM 3500

Gauss meter with external sensor / Measuring range up to 30,000 G / Leveling bubble / Built-up memory for up to 7,000 values ​​/ Software for live view and reading / Battery and also mains operation / Sensor cable approx. 1 m (3.3 ft) / Battery life approx. 100 hours

The magnetometer is a reliable measuring device for measuring the existing magnetic field. This magnetometer is suitable for measuring both static (permanent magnets) and alternating magnetic fields. The flat probe of the external probe on the magnetometer allows the operator to perform measurements even in very small openings. The measuring range of up to 30,000 G in the magnetometer covers a wide range of measuring tasks. In addition to measuring the magnetic field, the magnetometer also measures the temperature at the same time. The magnetometer also has an adjustable alarm function. This adjustable alarm function in the magnetometer warns the operator immediately as soon as a set measured value is exceeded.

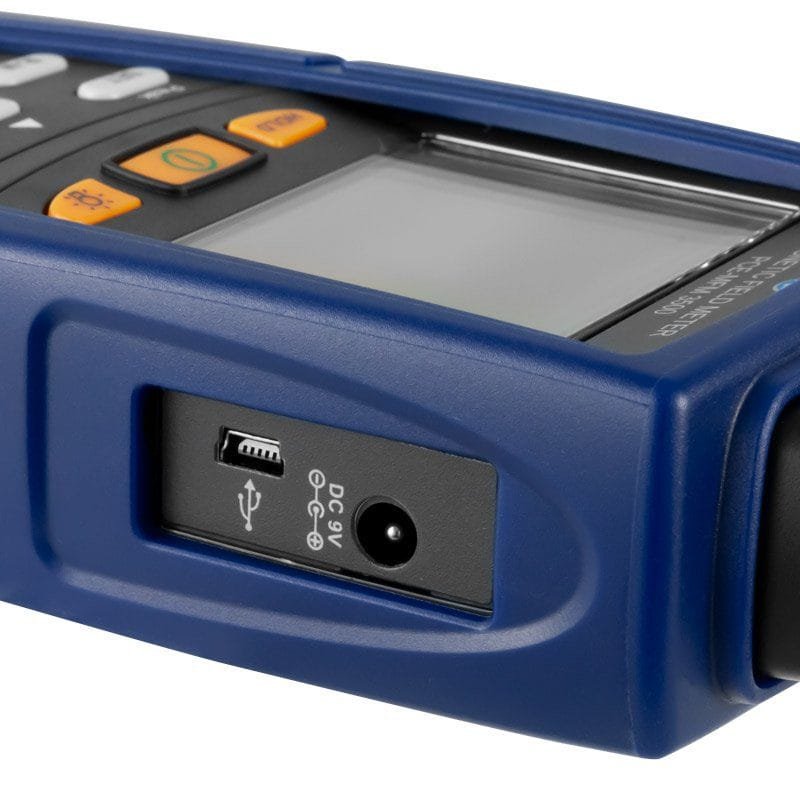

As an additional function, the magnetometer has a memory function. Thanks to the built-in memory, measured values ​​can be stored automatically as well as manually with the magnetometer. To analyze the measured data, the magnetometer can be connected to a PC via the mini-USB interface. With the software, the data stored on the magnetometer can be read out and analyzed. In addition, the software can be used for live viewing and operation of the magnetometer.
