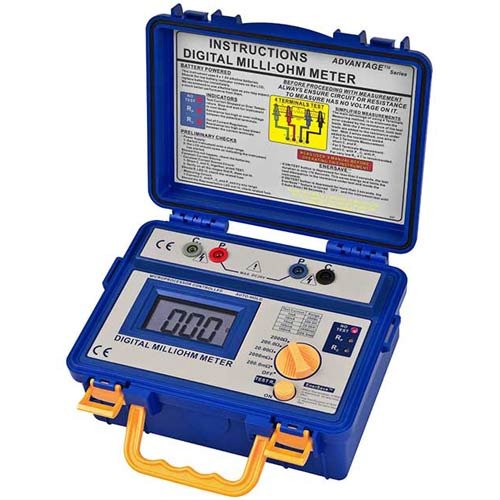

PCE Instruments PCE-MO 2002 – Milliohmmeter with Ruggedized Waterproof Carrying Case (Battery Power)

• Ranges: 0 – 200 mΩ (100 μΩ) / 0 – 2000 mΩ (1 mΩ) / 0 – 20 Ω (10 mΩ) / 0 – 200 Ω (100 mΩ) / 0 – 2000 Ω (1 Ω)
• Test current: 1 mA (range of 2000 Ω) / 10 mA (range of 200/20 Ω) / 100 mA (range of 2000 m Ω/ 200 mΩ)
• Measurement system with four conductors with alligator clips
• Ruggedized and waterproof carrying case
• Surge fuse in measurement inputs

This Milliohm Meter comes with a housing protected against water intrusion. With the Milliohm Meter PCE-MO 2002 Series, you can measure from 100 μΩ up to 2000 Ω. With this Milliohm Meter, measurement values are displayed by means of an LCD display with 3.5 digits and good readability. Milliohm Meter detects the measurement value, a constant current is mated on the object that is going to be measured, and then the voltage drop is tested. It allows measuring the resistance in coils, generators, transformers, parallel and secondary circuits, commutators, and relays. It measures binding energy in planes, rail systems, boats, and electrical installations in both industry and home. It allows continuity tests in circular systems (ring network) in industry and home. To test compression elements in airlines, testing works, and maintenance of electric cupboards and elements such as fuses, connectors, and contacts. It comes calibrated by the manufacturer, and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.
