Description
PCE Instruments PCE-PA 8300-2
- Voltage measurement range of 10 V – 600 V AC
- Current measurement range of 30 A – 3000 A AC (Set 2)
- Performance measurement range of 0 kW – 9.999 MW (VA/VAR)
- Simultaneous display of harmonics and waveform
- Graphic Phasor diagram
Power Meter with 3 Current Clamps (600 V AC / 3000 A AC)

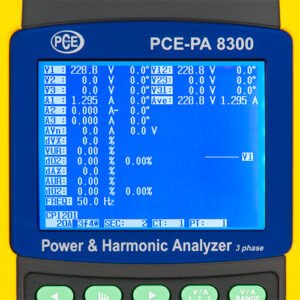

PCE-PA 8300 Power Meter
3-phase / 3 current clamps / LCD graphic display / SD card memory

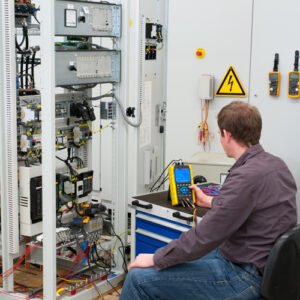

The PCE-PA 8300 is a Power Meter that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 Power Meter is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.
Set 2: Includes 3 flexible Rogowski coils for measurements up to 3000 A AC
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase, Single Phase |
| Maximum Current AC | 3000 A |
| True Power / Work ( W) | Yes |
| Apparent Power (VA) | Yes |
| Reactive Power (VAR) | Yes |
| Display (Power Quality) | Graphical |
| Graphical Display Type | LCD |
| Transient Capture | Yes |
| Displays Waveform | Yes |
| Energy | Yes |
| Phasor Diagrams | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Maximum Harmonics Range | 50 |
| Current Clamps Included | Yes |
| Crest Factor | Yes |
| CAT Rating | III |
| CAT Voltage Rating (V) | 600V |
Product General Attributes | |
| Warranty | 2 YEARS |
| Interfaces I/O | RS-232, USB |
| Storage | SD Card |
| Product Weight | 1010 GRAMS (2.23 LBS) |
| Product Height | 8.3 IN |
| Product Length | 4.92 IN |
| Product Width | 2.52 IN |
| Data Logging | Yes |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
