PCE Instruments PCE-SC 09 – Class 1 Sound Level Meter Calibrator (94, 114 dB)
45 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Class 1 Sound Level Meter Calibrator (94, 114 dB)
- Sound pressure level: 93 dB, 114 dB
- Accuracy class: EC 942, class 1
- Frequency: 1000 Hz for A, B, C, and D frequency weighting
- Adapter for various microphones
- Sound level accuracy: ± 0.3 dB (20°C / 68°F, 760 mm Hg)
- Microphone size: 1″, 1/2″ (with included adapter), 1/4″ (with optional adapter)
Guarantee Safe and Secure Payment Checkout
Description
PCE Instruments PCE-SC 09
- Sound pressure level: 93 dB, 114 dB
- Accuracy class: EC 942, class 1
- Frequency: 1000 Hz for A, B, C, and D frequency weighting
- Adapter for various microphones
- Sound level accuracy: ± 0.3 dB (20°C / 68°F, 760 mm Hg)
Class 1 Sound Level Meter Calibrator (94, 114 dB)
Class I Sound Level Meter Calibrator PCE-SC 09
The PCE-SC 09 sound level calibrator is a battery-powered sound source for direct and quick calibration of sound level meters and other systems for noise measurement. With adaptors, it can be placed on ½- and ¼-inch microphones. The calibration reference is 1000 Hz. This is the reference frequency for the internationally standardized evaluation curves. This means that with this calibrator you can calibrate sound level test equipment with A-, B-, C- or D weighting filters or with linear sound levels. The calibration pressure is 94 ±0.3 dB (1 Pa) and 114 ±0.3 dB (10 Pa).

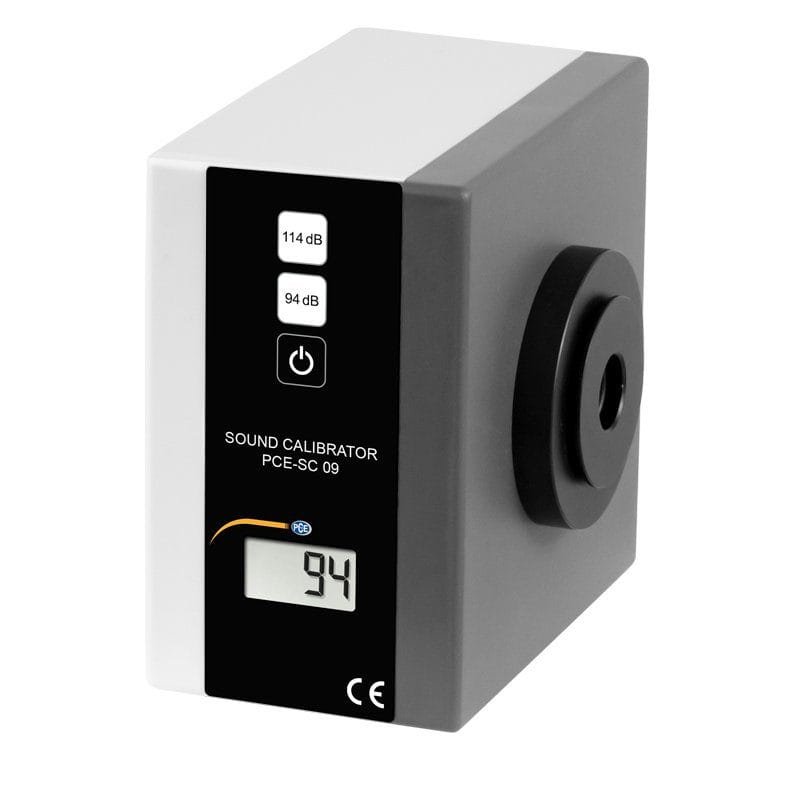

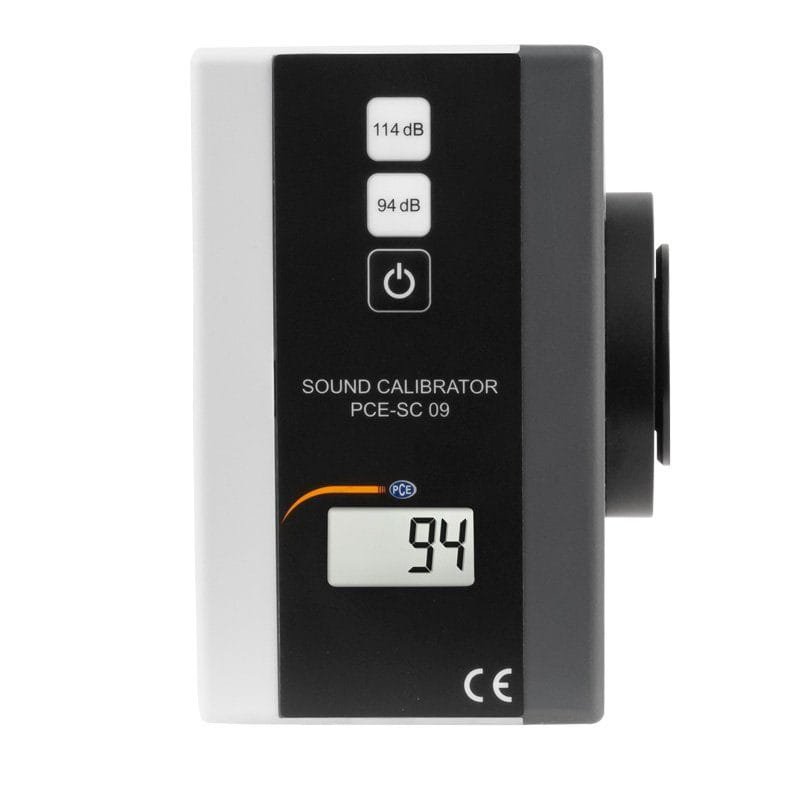

Device Layout
1. Membrane keypad with control elements

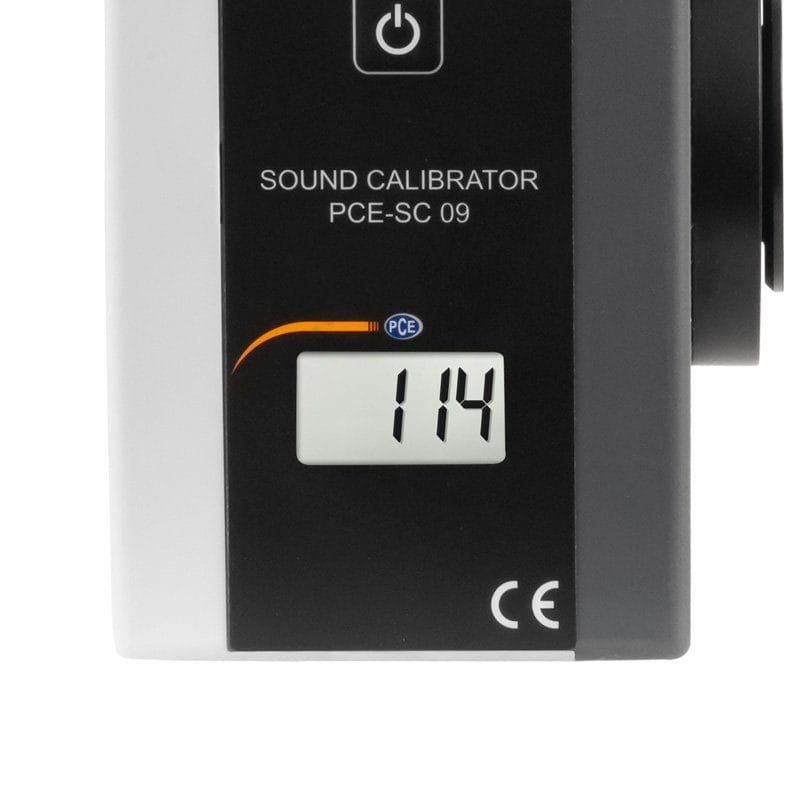

2. Display
3. 1/2 inch adaptor
4. Microphone aperture with calibration speaker located behind it
Environmental Testers / Physical Property/Sound Level Meters Template | |
|---|---|
| Minimum Sound Level | 94 dB |
| Maximum Sound Level | 114 dB |
| Display (Sound Level Meter) | Digital |
| A Frequency Weighting | Yes |
| B Frequency Weighting | Yes |
| C Frequency Weighting | Yes |
| Frequency Range Max | 1000 Hz |
| Calibrator Capability | Yes |
| Type (Sound Level Meter) | I |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE, FCC, RoHS |
| Product Weight | 250 GRAMS (0.551 LBS) |
| Product Height | 75 MM (2.95 IN) |
| Product Length | 100 MM (3.94 IN) |
| Product Width | 100 MM (3.94 IN) |
| Shipping Weight | 2.80 LBS |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 250 lbs |
|---|---|
| Dimensions | 100 × 100 × 75 in |
