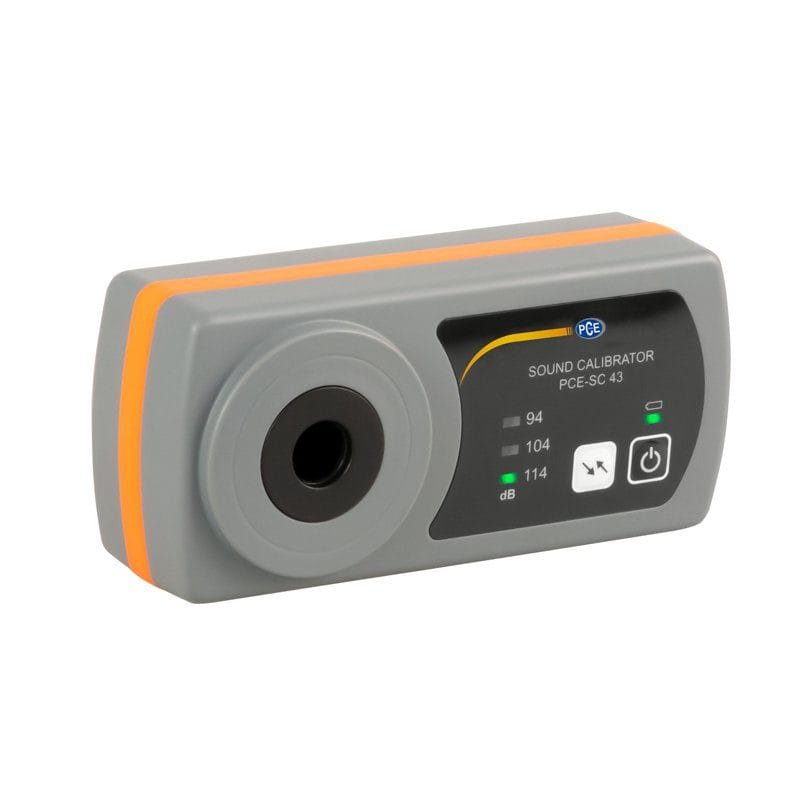

PCE Instruments PCE-SC 43 – Class 2 Sound Level Meter Calibrator (94, 104, 114 dB)

• Sound pressure level: 94 dB, 104 dB, 114 dB
• Accuracy class 2
• Frequency: 1000 Hz for A, B, C and D frequency weighting
• 1/2-inch microphone connection
• 50 hours of battery life

Class 2 Sound Level Calibrator PCE-SC 43

The calibration frequency for the class II sound level calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II sound calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II sound calibrator. This means that an additional 104 dB sound pressure level is available. With an accuracy of ± 0.4 dB, the class II sound calibrator is particularly precise. This means that the Class II sound calibrator can be used to check sound measuring devices for their accuracy and, if necessary, to adjust them. The class II sound calibrator can optionally be equipped with an ISO certificate.

With a battery life of 50 hours, the class II sound level calibrator has a particularly long operating time. The integrated automatic switch-off automatically switches off the class II sound calibrator after 20 minutes of inactivity.

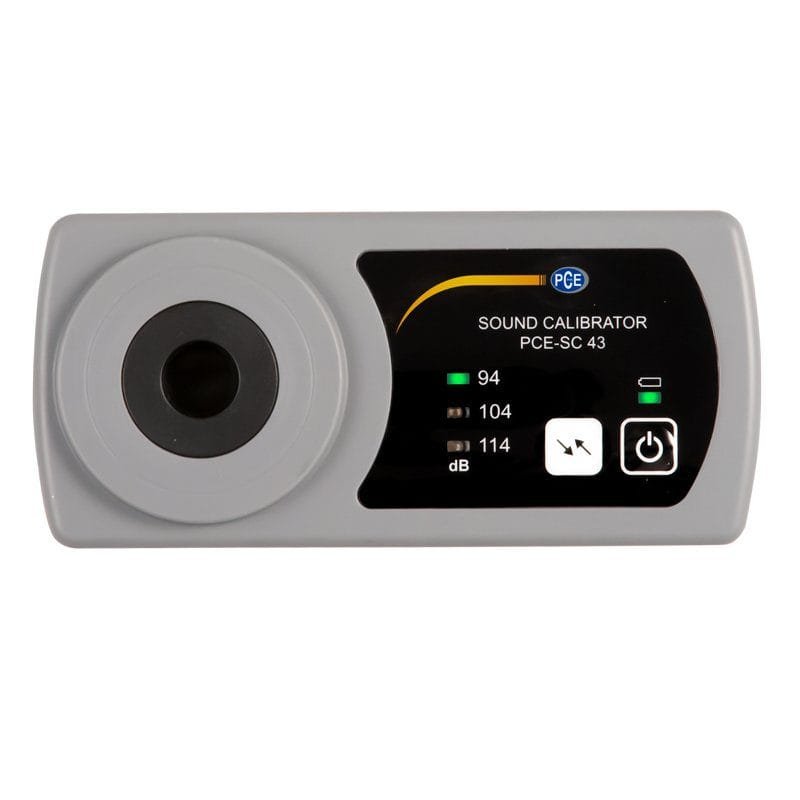

1. On / off key

2. Operating status LED green/red

3. Test chamber

4. dB range key

5. Green 94 dB status LED

6. Green 104 dB status LED

7. Green 114 dB status LED

8. Battery compartment
