PCE PCE-932 – Pressure Meter (0 – 400 bar)
38 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Pressure Meter, 0 to 400 bar
- Measuring range: 0 to 400 bar (depending on sensor)
- Measures system pressure in all media (e.g., gases, liquids, etc.)
- Offers min, max and hold functionality
- Recalibration not required when changing sensors
- Selectable units: bar, psi, kg/cm2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, atmosphere
- Accommodates SD cards up to 16 GB (comes with 2GB SD card)
- Features power-saving auto shut-off (can be disabled), a low battery indicator and an adjustable measurement rate
- Provides high accuracy and quality at an affordable price
- Contains an RS-232 interface for real-time data transfer to PC (requires optional software – see also)
- Ideal for research and development applications as well as testing and optimizing processes
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-932
- Measuring range: 0 to 400 bar (depending on sensor)
- Measures system pressure in all media (e.g., gases, liquids, etc.)
- Offers min, max and hold functionality
- Recalibration not required when changing sensors
- Selectable units: bar, psi, kg/cm2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, atmosphere
Pressure Meter (0 – 400 bar)
Please note: Pressure sensors are sold separately. See also for recommendations.

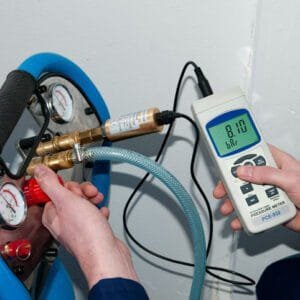

PCE-932 is an easy-to-use, digital, handheld device for high pressure measurement in hydraulic and compressor systems, pumps, tanks and silos in chemical, manufacturing, plastics and HVAC industries. This portable pressure measuring device can be connected to pressure sensors with ranges up to 400 bar (each with a 1.2 m / 3.9 ft connecting cable).
Measurement values are stored in a Microsoft Excel-compatible format to the included SD card memory. PCE-932 comes calibrated from the factory, but an ISO calibration certificate may be obtained for an additional fee. See also for ISO calibration details.
HVAC Equipment and Instruments/Manometer Template | |
|---|---|
| Type (Manometer) | Digital |
| Max Pressure | 400 Bar (160585.52 IN of H2O) |
| Engineering Units (HVAC) | bar, inch H2O, inch Hg, kg/cm2, mmHg, psi |
| Measurement | Gauge |
| Min/Max/Hold | Yes |
Product General Attributes | |
| Warranty | 2 YEARS |
| Storage | SD Card |
| Product Weight | 0.77 LBS |
| Product Height | 6.97 IN |
| Product Length | 2.68 IN |
| Product Width | 1.77 IN |
| Shipping Weight | 2.80 LBS |
| Battery Type | AA |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.77 lbs |
|---|---|
| Dimensions | 2.68 × 1.77 × 6.97 in |
