PCE PCE-UV34 – UVA/UVB Light Meter

• Measures UVA and UVB radiation
• External sensor with cosine correcting filter
• Minimum, maximum and data hold functions
• UV detector spectrum from 290 nm to 390 nm
• Two ranges: 0-2mW/cm^2, 0-20mW/cm^2

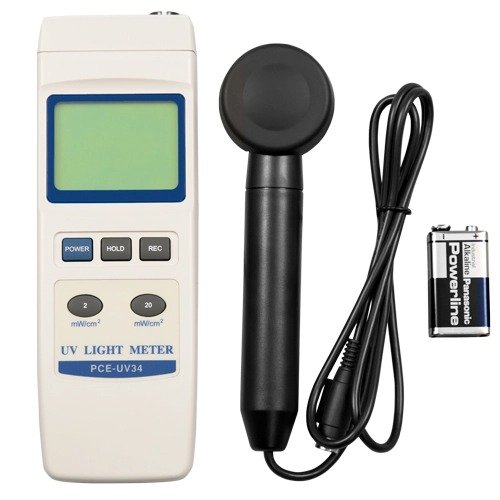

The PCE-UV34 is a light meter that measures UVA and UVB radiation. The included external sensor with a cosine correcting filter connects via the probe input of the meter. The PCE-UV34 is equipped with two measurement ranges: 0.000 to 1.999 mW/cm2 and 1.999 to 19.99 mW/cm2. The device operates on a wavelength of 290 nm to 390 nm.

With this Radiation Meter, you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from the damage from high exposure and possible sunburn. There are many industrial and laboratory applications that the PCE-UV34 is suitable for.

Industrial Applications

• Monitoring blue light radiation hazards in welding
• UV sterilization
• Graphic arts
• Photochemical matching
• UV EPROM erasure
• Photoresist exposure
• Curing of inks, adhesives and coatings

Laboratory Applications

• Weathering (degradation studies)
• UV sterilization
• Virology
• Microbial genetics
• DNA research
• General laboratory use

4-1. Display                                      4.9. Stand

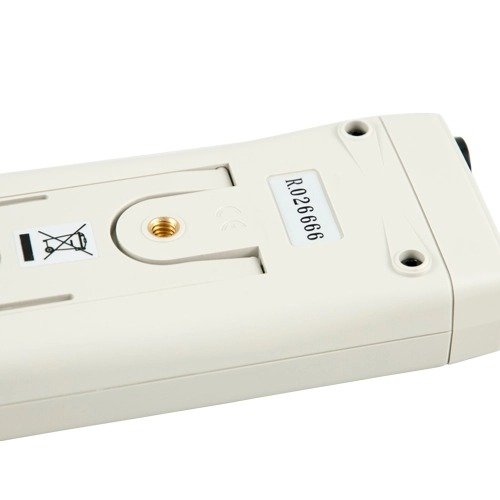

4-2. Power button                         4-10. Tripod fix nut

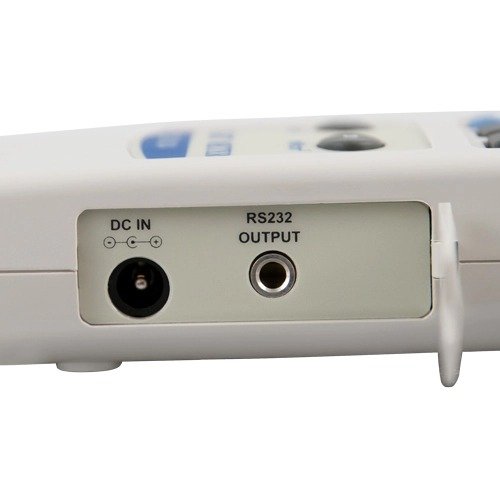

4-3. Hold button                            4-11. RS-232 output terminal

4-4. REC button                             4-12. DC 9V power adapter                                                                                input

4-5. 2mW/cm^2 button/              4-13. UV probe handle

         Zerobutton

4-6. 20mW/cm^2 button             4-14. UV sensor

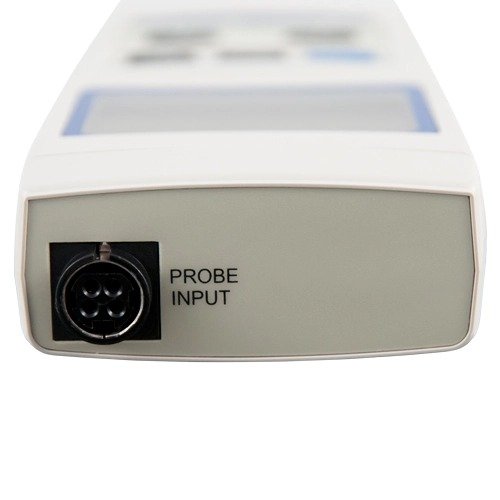

4-7 Probe input socket                4-15. UV probe plug

4-8. Battery compartment/cover
