PCE PCE-VM 21 – Microscope Inspection System
35 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Microscope Inspection System
- All-in-one inspection system with microscope, CCD camera and 8-inch LCD screen
- 10x to 75x magnification
- Transmitted light and incident light illumination
- Adjustable height for viewing of larger objects
- Data transfer to PC via USB 2.0 connection
- User-friendly menu in 8 different languages
- Fixed-increment, crossed-scale reticle for orientation purposes
- Image recording functionality
- Direct viewing on the LCD display
- Screen resolution of 800 x 600 pixels
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-VM 21
- All-in-one inspection system with a microscope, CCD camera, and 8-inch LCD screen
- 10x to 75x magnification
- Transmitted light and incident light illumination
- Adjustable height for viewing larger objects
- Data transfer to PC via USB 2.0 connection
Microscope Inspection System

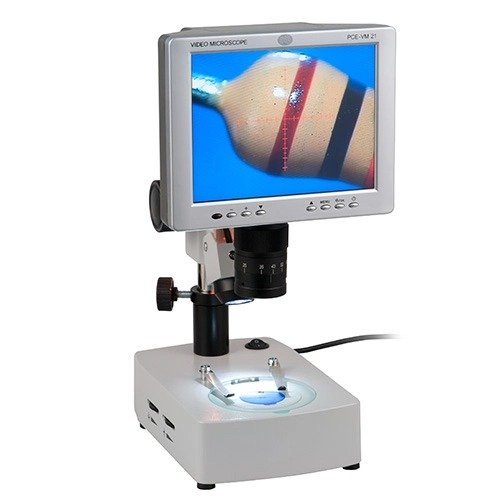

The PCE-VM 21 is a microscope inspection system consisting of an optical microscope, CCD camera, and 8-inch LCD monitor. With the 75x magnification, it is possible to view very small components, electronics, even medical instruments very clearly.
The PCE-VM 21 reduces eye strain during soldering of printed circuit boards (PCB’s), investigating of material defects, and inspecting components. This microscope inspection system is ideal for quality assurance testing, electronics repair, medical instrument reprocessing and more.

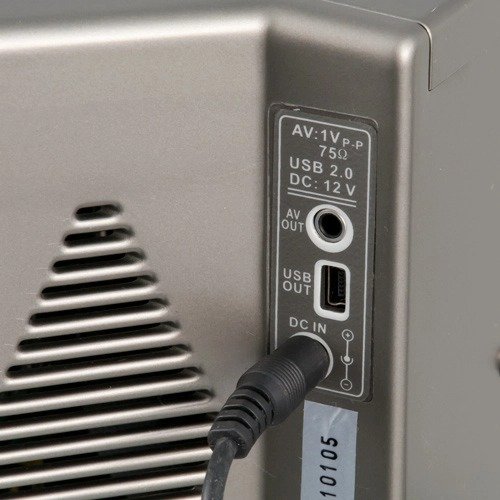

Via the USB interface imaging can be sent to a computer for further analysis, image saving, photographing, measuring, and printing.
Optical Data
| Magnification | 10x – 75x |
| View Range | 13.5 X 10 ~ 2.1 X 1.5 |
| Focus (optical lens) | 0.7X-4.5X (ratio: 1:6.5) |
| Focus (CCD ocular) | 0.5X |
| Focus (entire optical lens) | 0.35X-2.25X |
| Working Distance | approx. 95 mm |
| CCD camera lens size | 1/3 inch |
| LCD Resolution | 600 x 800 |
Microscopes/Video Inspection Systems Template | |
|---|---|
| Magnification max | 75 x |
| Illumination Type | Halogen |
| Body Style | Video |
| Camera Included | Yes |
| Working Distance | 95 MM |
| Digital Zoom | No |
| Magnification min | 10 x |
Product General Attributes | |
| Product Weight | 10.6 LBS |
| Shipping Weight | 12.19 LBS |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 10.6 lbs |
|---|
