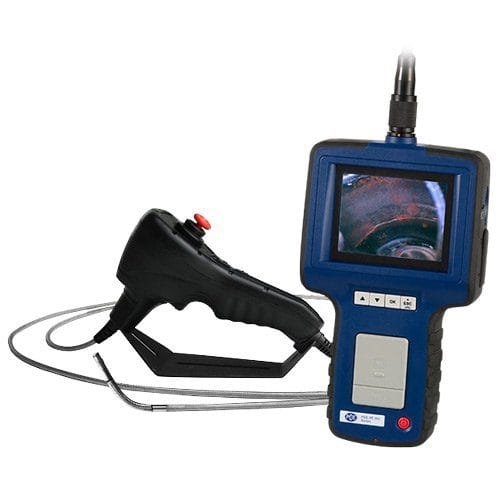

PCE-VE 370HR3 – Four Way Articulating Inspection Camera, 3m Cable

Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
17 people are viewing this product right now
Shipping calculated at checkout.
or
Add to quote
Estimated delivery:4 days

Four Way Articulating Inspection Camera, 3m Cable

  • Camera specs: 640×480 resolution; CMOS sensor; 30 fps; 6.0mm (Diameter); 4-Way articulation
  • Cable specs: 3m (Length); 90mm bend radius; Flexible
  • Lighting: 3 LED lights
  • Display: 3.5 TFT LCD
  • Interface: Mini USB 1.1 / AV out
  • Industrial borescope with 4-way articulating camera head for diagnosing hard-to-reach places
  • IP67 protection rated
  • Boost function, lightens image, for improved image quality in dark environments
  • Stores recorded images, videos directly to an SD card (included)
SKU: PCE Instruments PCE-VE 370HR3 Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

PCE-VE 370HR3 Four Way Articulating Inspection Camera, 3m Cable

  • Industrial borescope with 4-way articulating camera head for diagnosing hard-to-reach places
  • Camera specs: 640×480 resolution; CMOS sensor; 30 fps; 6.0mm (Diameter); 4-Way articulation
  • Cable specs: 3m (Length); 90mm bend radius; Flexible
  • Lighting: 3 LED lights
  • Display: 3.5 TFT LCD

PCE Instruments PCE-VE 370HR3 Four Way Articulating Inspection Camera, 3m Cable

The PCE Instruments PCE-VE 370HR3 is a four-way articulating videoscope, industrial endoscope, inspection camera or borescope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 3 LED lights for optimal illumination. In addition, digital image magnification or zoom of up to 2x is available, plus boost functionality for improved image quality in the dark.

The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 3m (9.8ft) cable length and 6.0mm (0.24in) diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

PCE-VE 370HR3 Features

  • 6.0mm (0.24in) diameter waterproof camera head, picture and video recording
  • 3m (9.8ft) long flexible
  • 3.7V rechargeable lithium-ion battery
  • 3.5 in TFT LCD monitor
  • Includes SD memory card, USB cable, carrying case
  • Boost function offers improved image quality in dark environments
  • IP67 protection rating
  • 3 LED lights

Borescopes / Boroscopes/Video Borescopes Template

Shaft Length3 M (118.11 IN)
Shaft Diameter6.0 MM (0.006 M)
Screen Size3.5 IN
Detachable ScreenNo
Screen TypeTFT LCD
Video Resolution (Boroscopes)320×240
Image Resolution640×480
Digital Zoom X2
Video Output FormatNTSC, PAL
IP RatingIP67

Product General Attributes

Interfaces I/OUSB
StorageSD Card
Product Weight1.00 LBS
Product Height8.15 IN
Product Length4.65 IN
Product Width1.46 IN
Shipping Weight7.50 LBS
Battery TypeLi-ion
Power Supply VoltageBattery Powered

Reviews

There are no reviews yet.

Be the first to review “PCE-VE 370HR3 – Four Way Articulating Inspection Camera, 3m Cable”

Manuals/Guides

Weight7.5 lbs
Dimensions4.65 × 1.46 × 8.15 in
