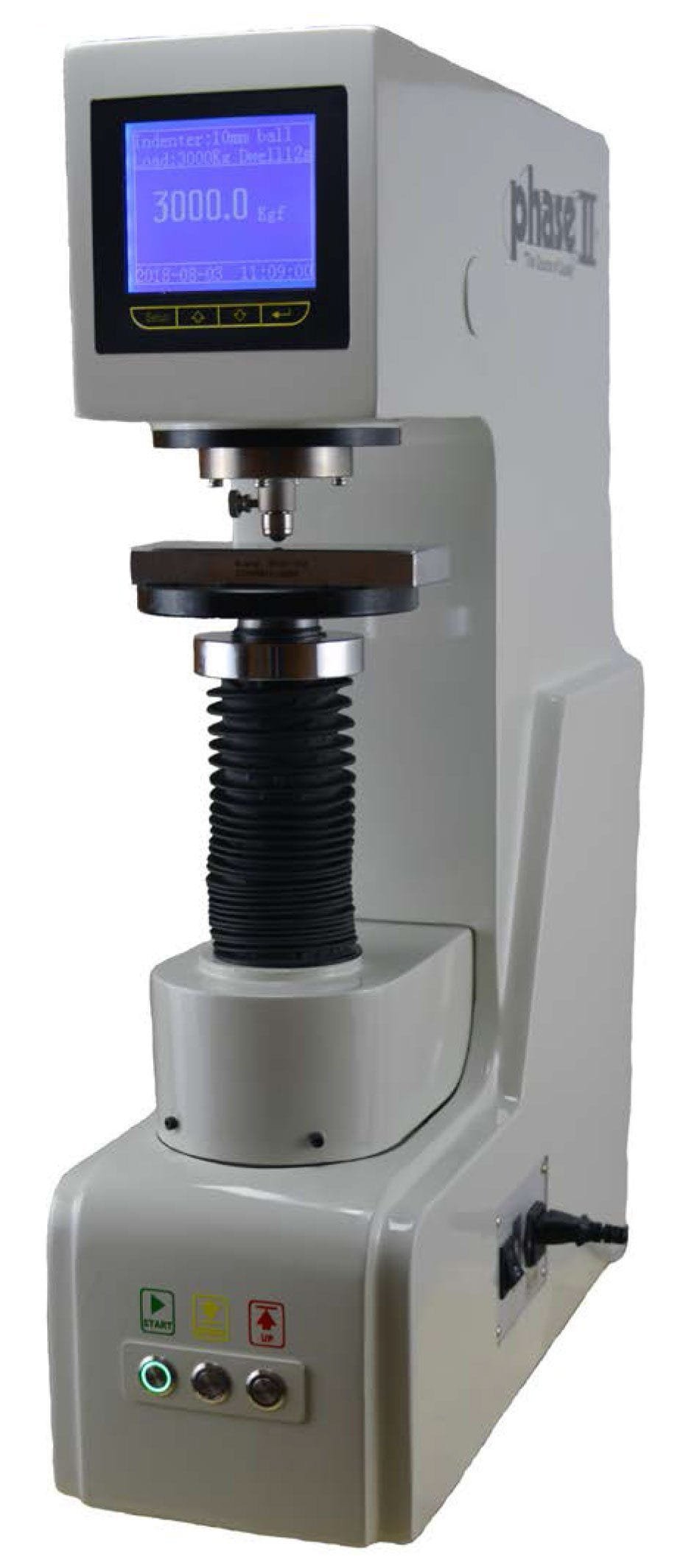

Phase II+ 900-358 – Brinell Hardness Tester with Auto Z-Axis

• Load Cell driven system provides precise control of test force application
• Direct digital reading
• Engineered to obtain highly sensitive and accurate readings
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
• Measuring Range: 8-650HBW

Innovative closed-loop technology. The tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor, and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations. The gross weight of the tester is 50% less than the traditional dead weights type tester. Test load selection by keyboard and LCD screen. Fully automatic test cycles. The Brinell hardness Tester features a fully automatic test cycle, and load application, holding, and unloading is performed fully automatically. This greatly improves the reproducibility of test results since operator influence is eliminated. Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen. The directions for 0.102F/D2 ratios selected according to the materials and hardness range can be shown on the screen. Equipped with a 20X optical microscope to measure the diameter of Brinell indention. Brinell Hardness Calculator (BHC) makes the hardness value calculation easier and more convenient.
