PIE 820PM Single Channel Multifunction Process Calibrator, Panel Mount Version

PIE 820PM Panel Mount Multifunction Calibrator

Now you can panel mount PIE 820 & 830 Multifunction calibrators. As part of a calibration bench, the PIE 820PM or 830PM provide an accurate multifunction calibrator that is easy to use and may be removed for annual calibration. Panel mounting a multifunction calibrator is useful whether you are putting a calibration bench in your instrument shop, require a manual loading station in a control panel or for use as a built-in process simulator.

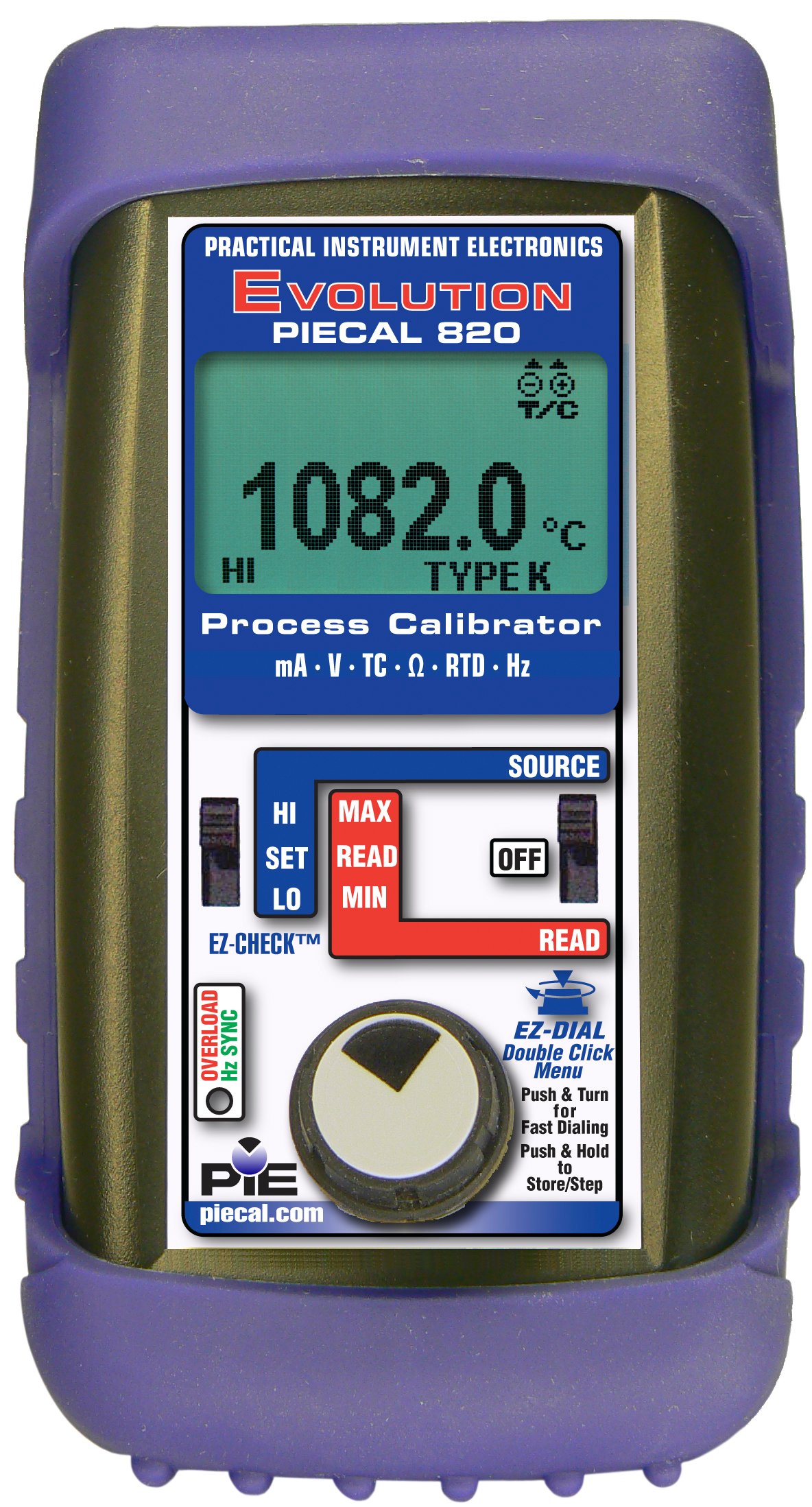

The new PIECAL 820 is smaller and easier to use than other multifunction calibrators. Six single function calibrators with advanced features are squeezed into a single surprisingly small package that fits into a pocket.

This technician friendly calibrator is all about ease of use. An intuitive EZ-DIAL Double Click Menu makes it simpler to setup than larger calibrators with their complicated button filled panels and confusing menus. Use the PIECAL 820 right out of the box instead of wasting time learning to use more complex calibrators.

The PIECAL 820 Process Calibrator combines all milliamp loop functions and sources and reads DC Volts and millivolts, 14 thermocouple types, 9 RTD curves, ohms and process frequency signals. For troubleshooting connections it has a continuity tester with tone. All ranges have auto storing MIN/MAX readings and three output set points for fast calibration of zero, midpoint and span. Advanced features include automatic detection of 2, 3 and 4 wire RTDs plus configurable automatic stepping and ramping. A LED flashes green for frequency sync and lights up red for signal overload and invalid signal conditions.

The toolbox tough design includes a backlit display for use in dark environments, protective rubber boot with built in stand, hands free carrying case and test leads. NIST Calibration Certificate and three year warranty are included at no extra cost. Optional six year extended warranty is available for low total cost of ownership. Or choose the 3 year replacement warranty and eliminate unbudgeted expenses when the calibrator is used where equipment is regularly damaged.

The PIECAL 820 is the best value multifunction calibrator combining ease of use, accuracy, signal compatibility and compact size to make calibration as easy as pie!

Calibrator functions

• Calibrate milliamps and voltage
  • Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV
  • Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV
  • Simulate 2 Wire transmitters
  • Power up transmitters and loops with built in 24 V power supply
  • Simplify HART hook ups with built in 250 ohm resistor
• Calibrate directly in temperature (°C & °F)
  • Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
  • RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
  • Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
  • Resistance up to 4010 ohms
• Checkout flow and vibration systems
  • Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
  • Hz, 9999.9 Hz, 20.000 kHz

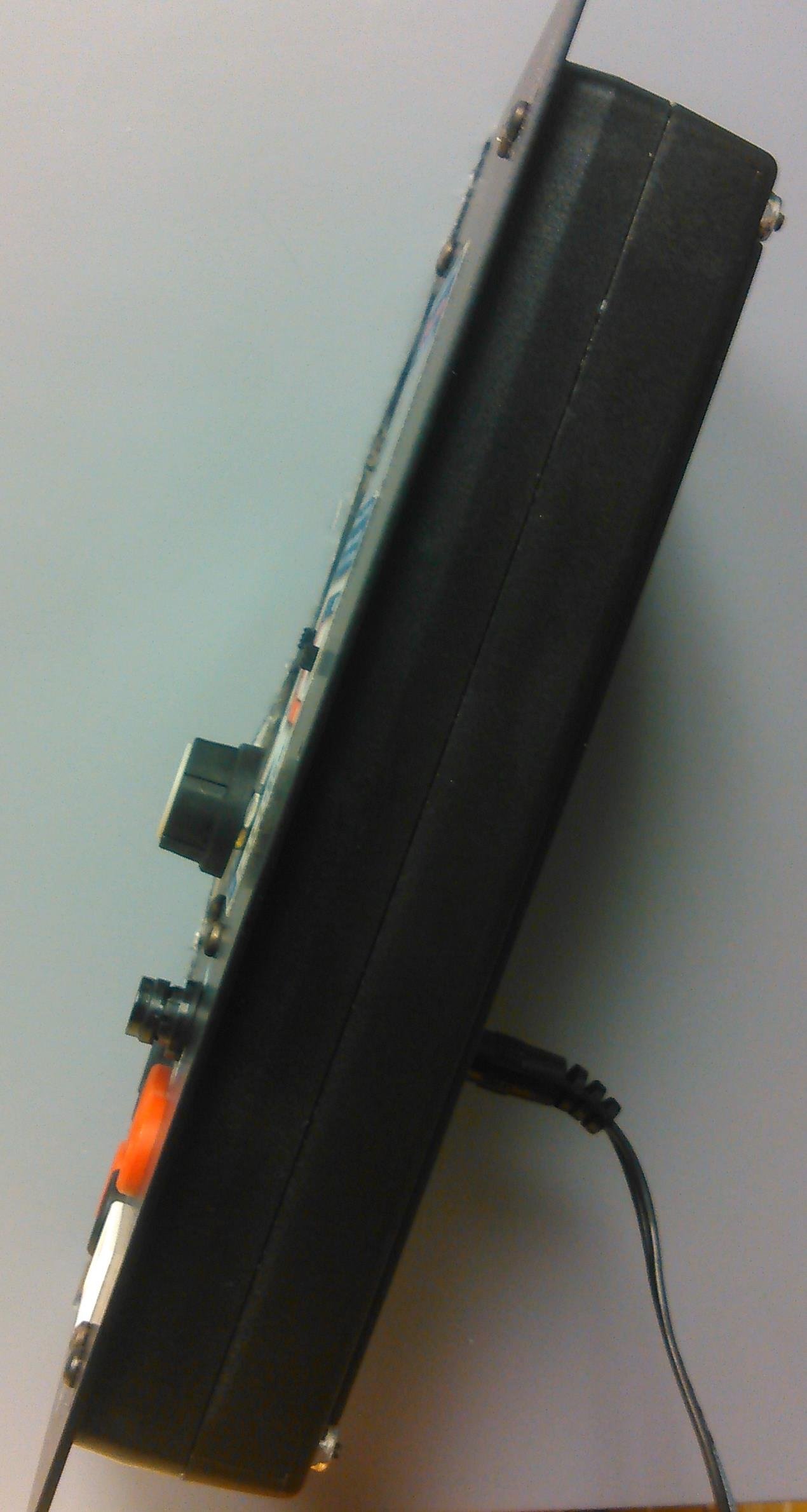

PIE 820PM Dimension

Advantages of the PIECAL 820 over the Altek 820

• Automatic stepping & ramping
  • Setup 2, 3, 5 & 11 steps or continuous ramp from 5 to 60 seconds to match your test procedures
• Larger Display with Backlight
  • Easy viewing in dark locations
• More Resistant to Accidental Damage
  • Rubber Boot and Stronger Switches
• More Thermocouple & RTD ranges with 0.1° resolution and better accuracy
  • Compatible with smart transmitters, multichannel recorders, PLCs and DCSs
• Smaller & 25% lighter
  • Pocket sized and easier to carry
• LED for optical pickups
  • LED flashes green in synch with frequency output. Illuminates red for overload conditions.
