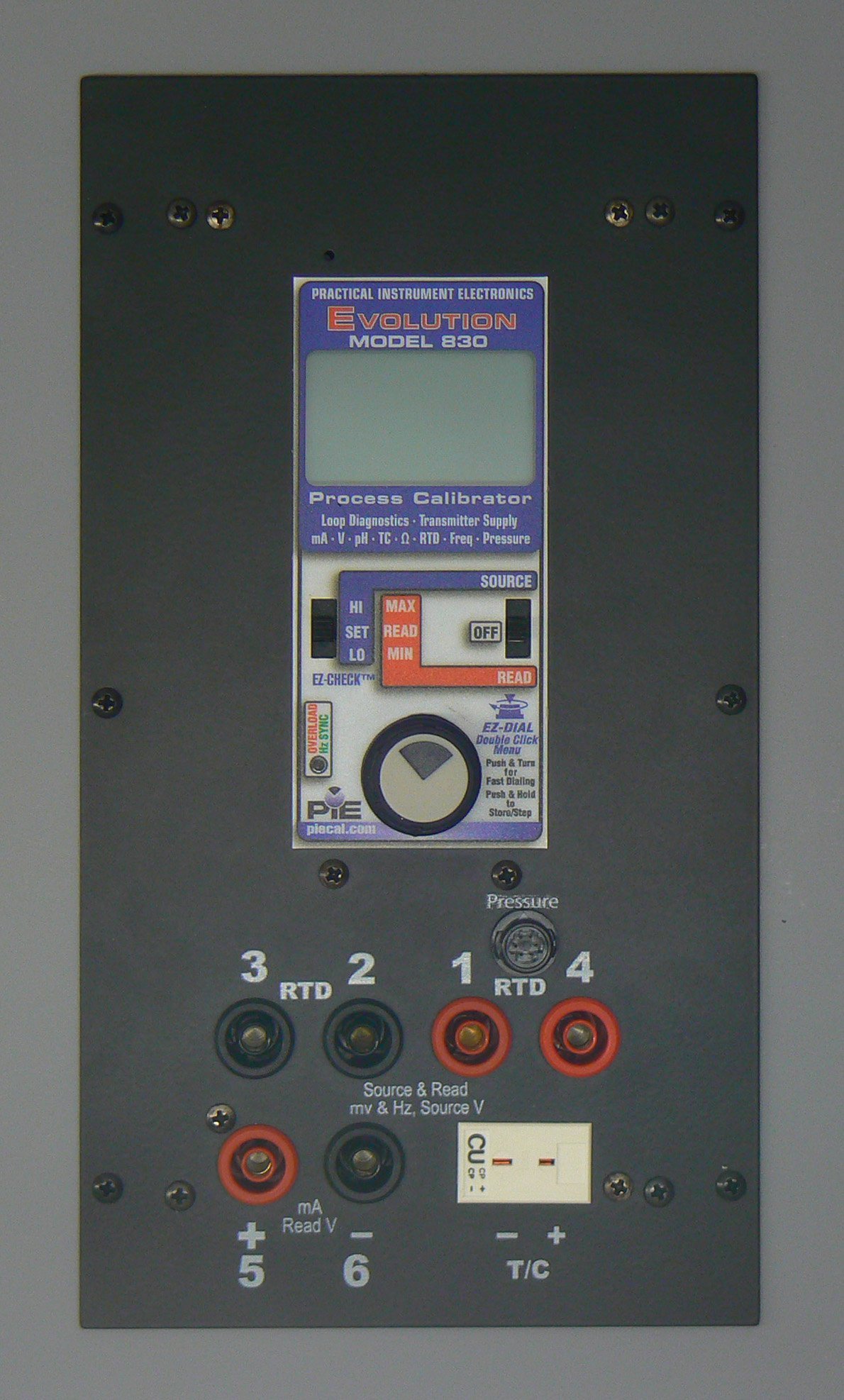

PIE 830PM Panel Mount Diagnostic Multifunction Calibrator

PIE 830PM Panel Mount Diagnostic Multifunction Calibrator

Now you can panel mount PIE 820 & 830 Multifunction calibrators. As part of a calibration bench, the PIE 820PM or 830PM provide an accurate multifunction calibrator that is easy to use and may be removed for annual calibration. Panel mounting a multifunction calibrator is useful whether you are putting a calibration bench in your instrument shop, require a manual loading station in a control panel or for use as a built-in process simulator.

The PIE Model 830 is more than a multifunction calibrator. It is also a loop detective that is able to diagnose common problems that other test equipment just can not find. Have a flooded junction box or unknown ground faults? Our Loop Diagnostic technology will detect it. Or use the LoopScope to see at a glance all the parameters – milliamps, voltage and resistance – in the loop.

Stop throwing away perfectly good transmitters only to find the problem is somewhere else in the loop. Setup the PIE Model 830 as an isolated universal transmitter and turn on the Loop Diagnostics. The display will tell you EXACTLY the sensor input, the current output and if there is any uncontrolled current in the loop due to a ground fault, corrosion bridge or moisture. If the control system sees no problem when the 830 is acting as a transmitter THEN you can replace the faulty transmitter. With RTDs the 830 automatically detects which of the 2, 3 or 4 wires are connected and unbroken quickly alerting you to a sensor problem.

Calibrator functions

• Calibrate milliamps and voltage
  • Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV
  • Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV
  • Simulate 2 Wire transmitters
  • Power up transmitters and loops with built in 24 V power supply
  • Simplify HART hook ups with built in 250 ohm resistor
• Calibrate directly in temperature (°C & °F)
  • Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
  • RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
  • Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
  • Resistance up to 4010 ohms
• Checkout flow and vibration systems
  • Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
  • Hz, 9999.9 Hz, 20.000 kHz
• Source pH signals to calibrate pH transmitters and instruments
  • Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to +414.12 to -414.12 mV
• Measure pressure with optional pressure modules
  • 32 modules for gauge, differential, compound and absolute pressure
• Two isolated channels allow you to calibrate transmitters, PLC’s and other instruments with one unit

First calibrator with FIVE troubleshooting tools

1. Detect hidden loop problems
   • Quickly diagnose troublesome ground faults & current leakage with patented Loop Diagnostic technology. These problems are undetectable with other instruments!
2. Check all loop parameters at once with the LoopScope
   • Simultaneously displays current, voltage and resistance to let you know the condition of a live loop. Finds problems with power supplies & loops with too many loads. Patented by PIE!
3. Automatically detect 2, 3 or 4 wire RTDs
   • Trouble shoot sensor connections and find broken wires with patented technology. LCD indicates which of the four wires are connected to an RTD sensor.
4. Swap out faulty transmitters to diagnose control issues
   • Easily setup the 830 as a universal isolated transmitter for temperature, frequency, millivolt or pressure. If the loop is back under control you know the transmitter was faulty. Turn on the LoopScope to simultaneously see the loop current, power supply voltage and loop loads for troubleshooting.
5. Troubleshoot wiring problems without a multimeter
   • Built in continuity checker with beeper quickly finds broken wires or shorts in instrumentation wiring. Also handy for checking operation of relays and controller outputs.

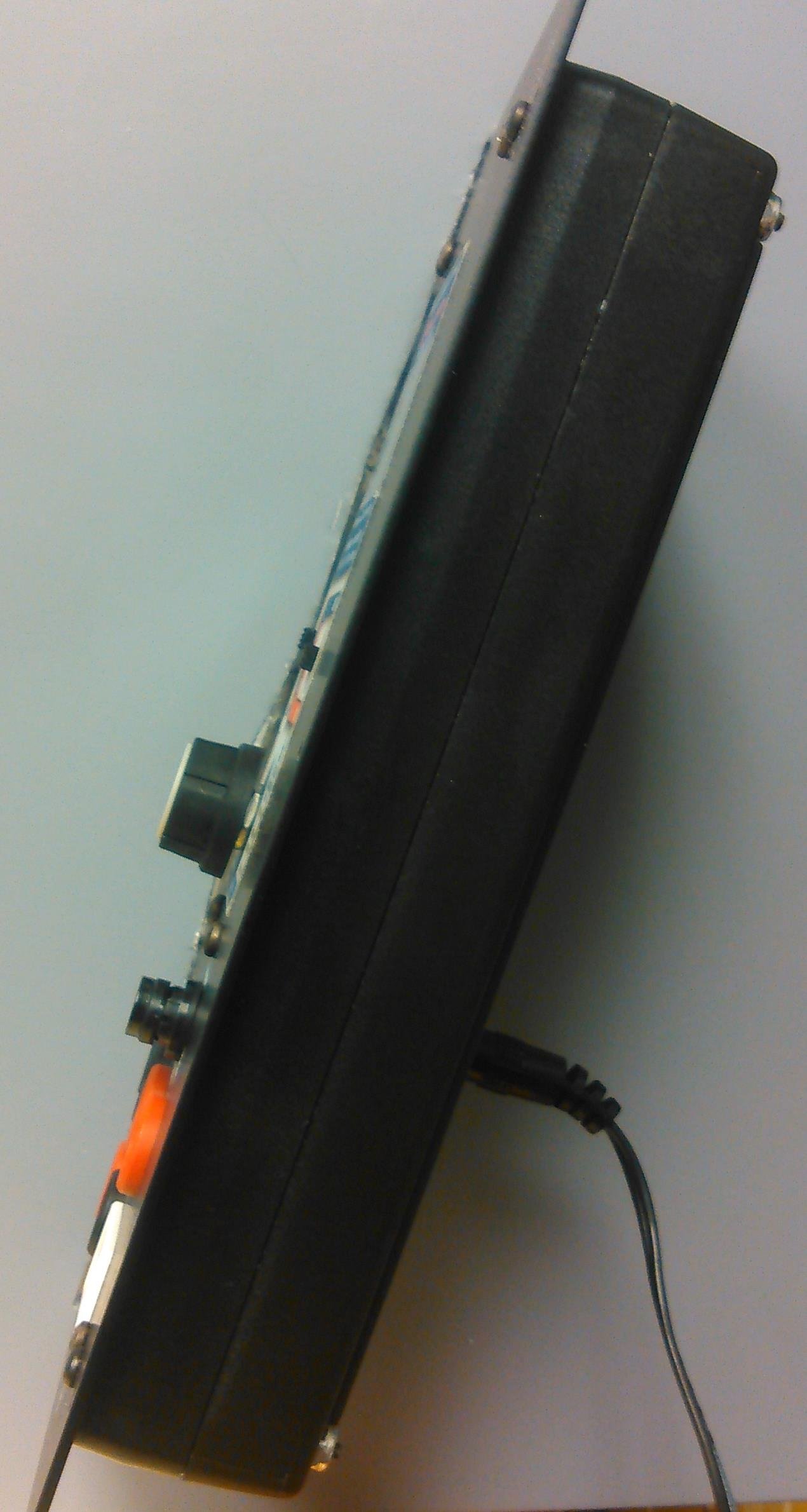

PIE 830PM Dimension

Advantages of the PIE 830 over the Altek 830

• Higher Accuracy
  • Accurate to 0.006 mA, Pt 100 Ohm RTD to 0.2°C/0.4°F, Type K to 0.3°C/0.6°F, pH to 0.003 pH
• Loop Diagnostics – Unique to PIE
  • Only multifunction calibrator that can power up a loop and tell you that there is moisture, corrosion or a ground fault causing current to leak to ground.
• Simulates a pH probe
  • Calibrate pH transmitters & analyzers before attaching probe to verify that each is working correctly.
• Isolated internal 24 V loop supply
  • Calibrate 2-wire transmitter with electrical isolation between the input and the output for more accurate and stable readings.
• Wider range of pressure modules & scales
  • Choose from 32 different modules with up to 32 engineering units for greater compatibility with your processes.
• Works with more instruments
  • Compatible with smart transmitters, multichannel recorders, PLCs and DCSs -GUARANTEED! More Thermocouple & RTD ranges with 0.1° resolution and better accuracy.
• Smaller & lighter
  • Pocket sized and easier to carry
• LED for optical pickups
  • LED flashes green in sync with frequency output. Illuminates red for overload conditions.
• Easier to hook-up
  • Diagrams are shown on the display indicating where to plug in the test leads.
