Protimeter MMS3 FLOORING KIT – Moisture Kit for ASTM F2170 Testing in Concrete Floor Slabs

• Moisture measurement kit for ASTM F2170 Testing in concrete floor slabs

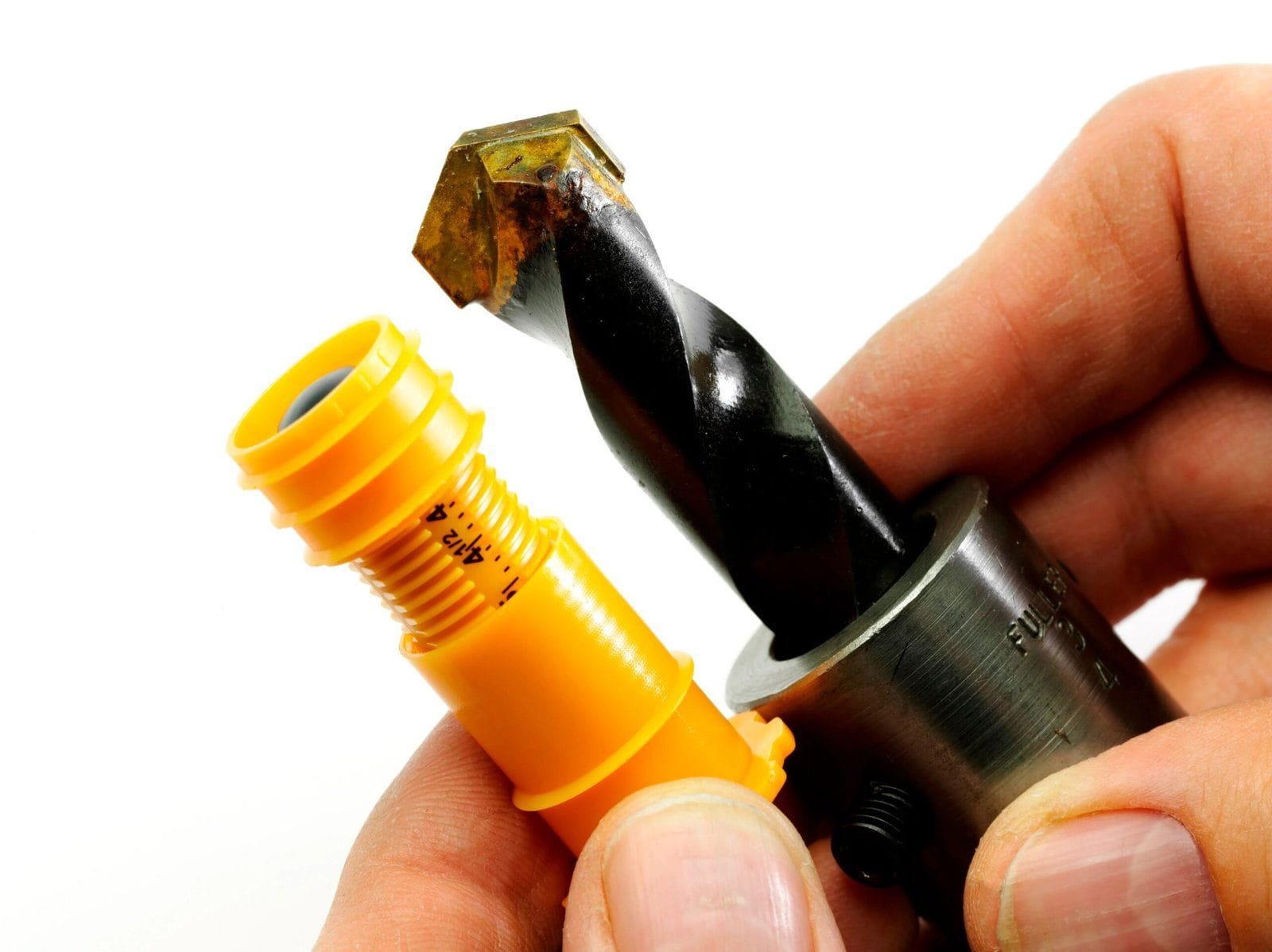

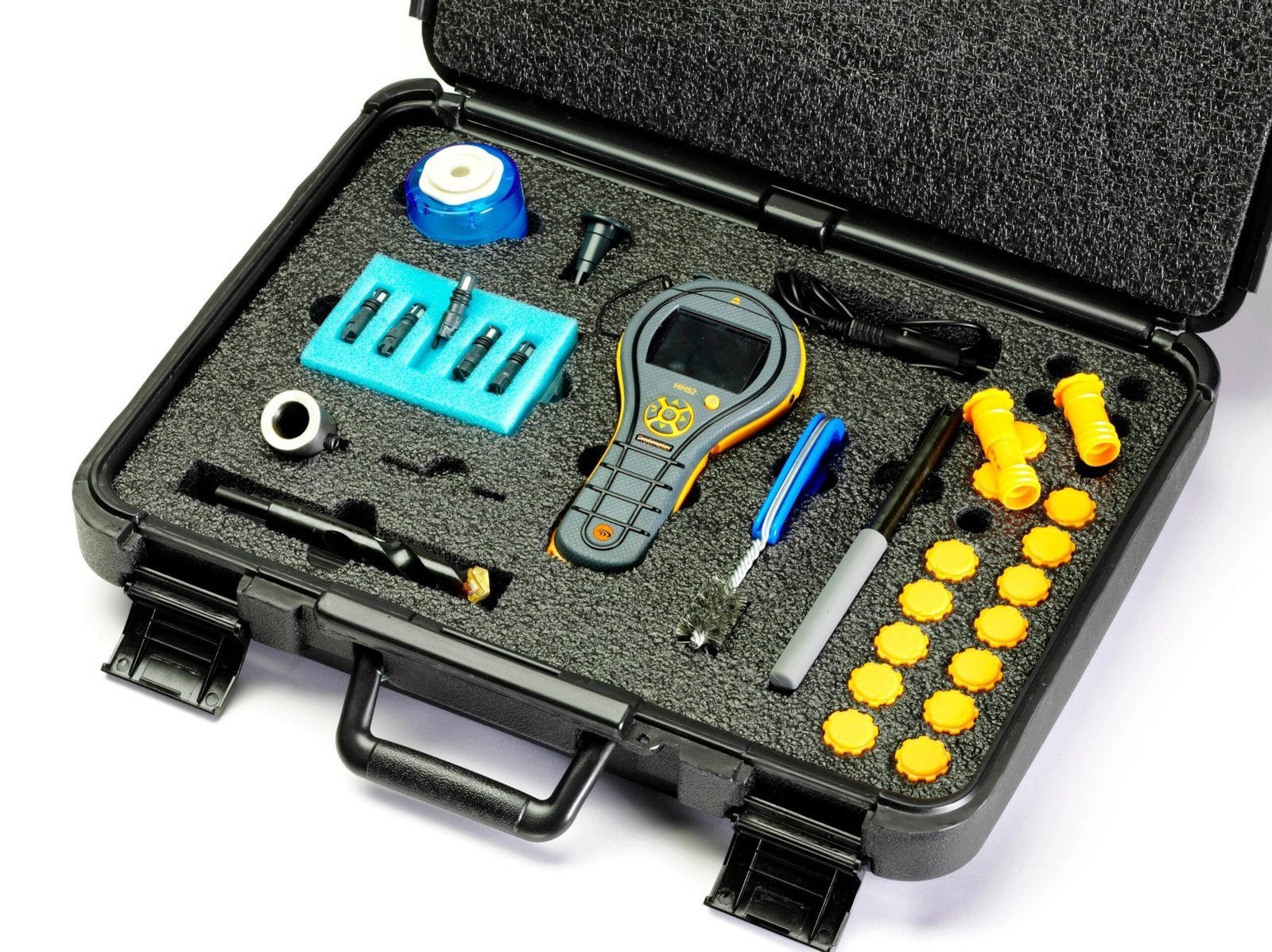

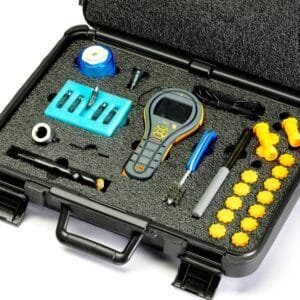

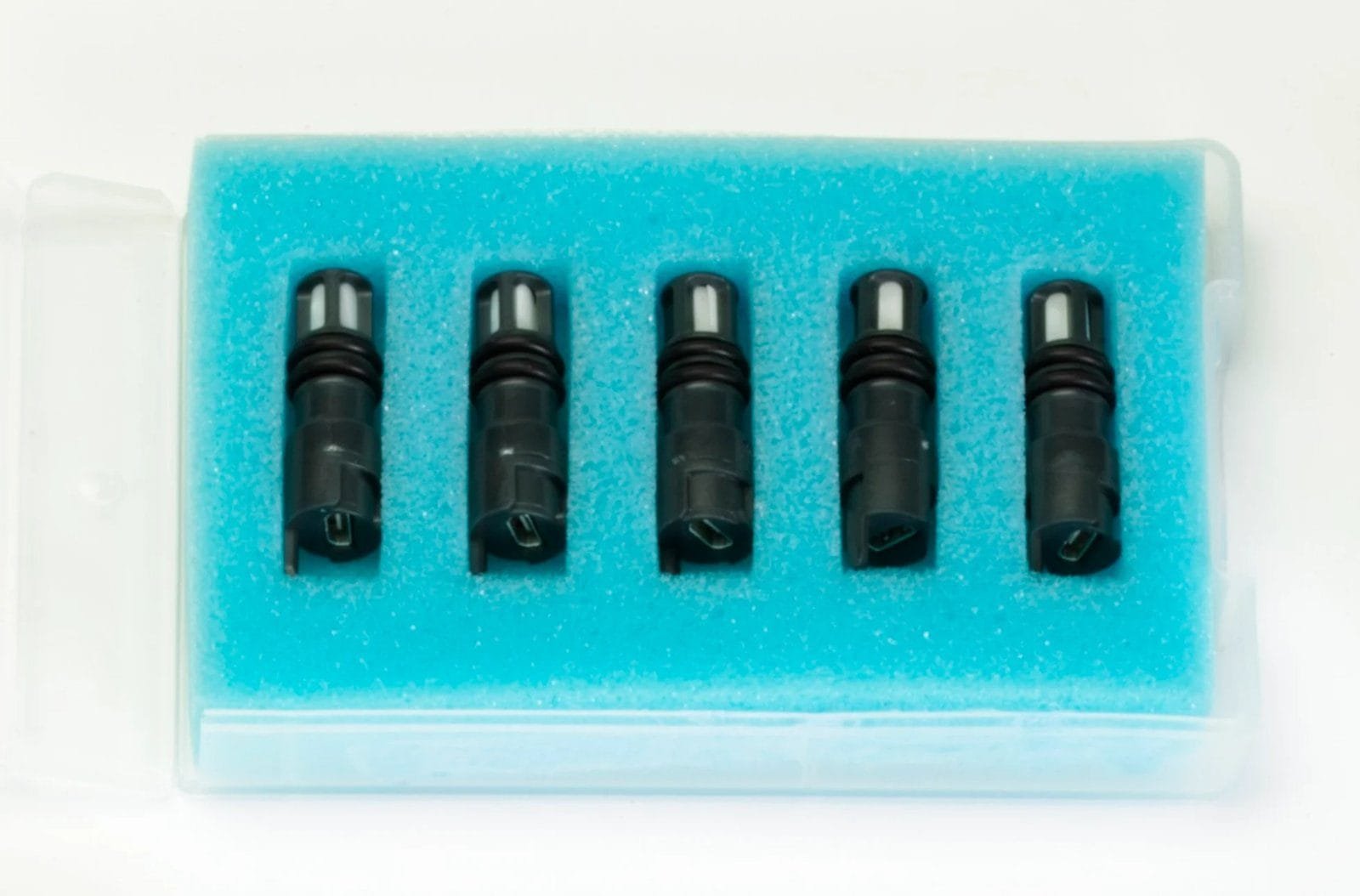

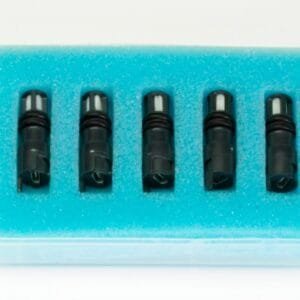

• Includes MMS3, 5 Protimeter Mini Hygrostick Probes, humidity sleeves, masonry bit, extraction tool
• Pin moisture measurement with built-in calibration check
• Non-invasive moisture measurement with sensitivity mode feature
• Non-contact surface temperature measurement with Infrared (IR) laser pointer

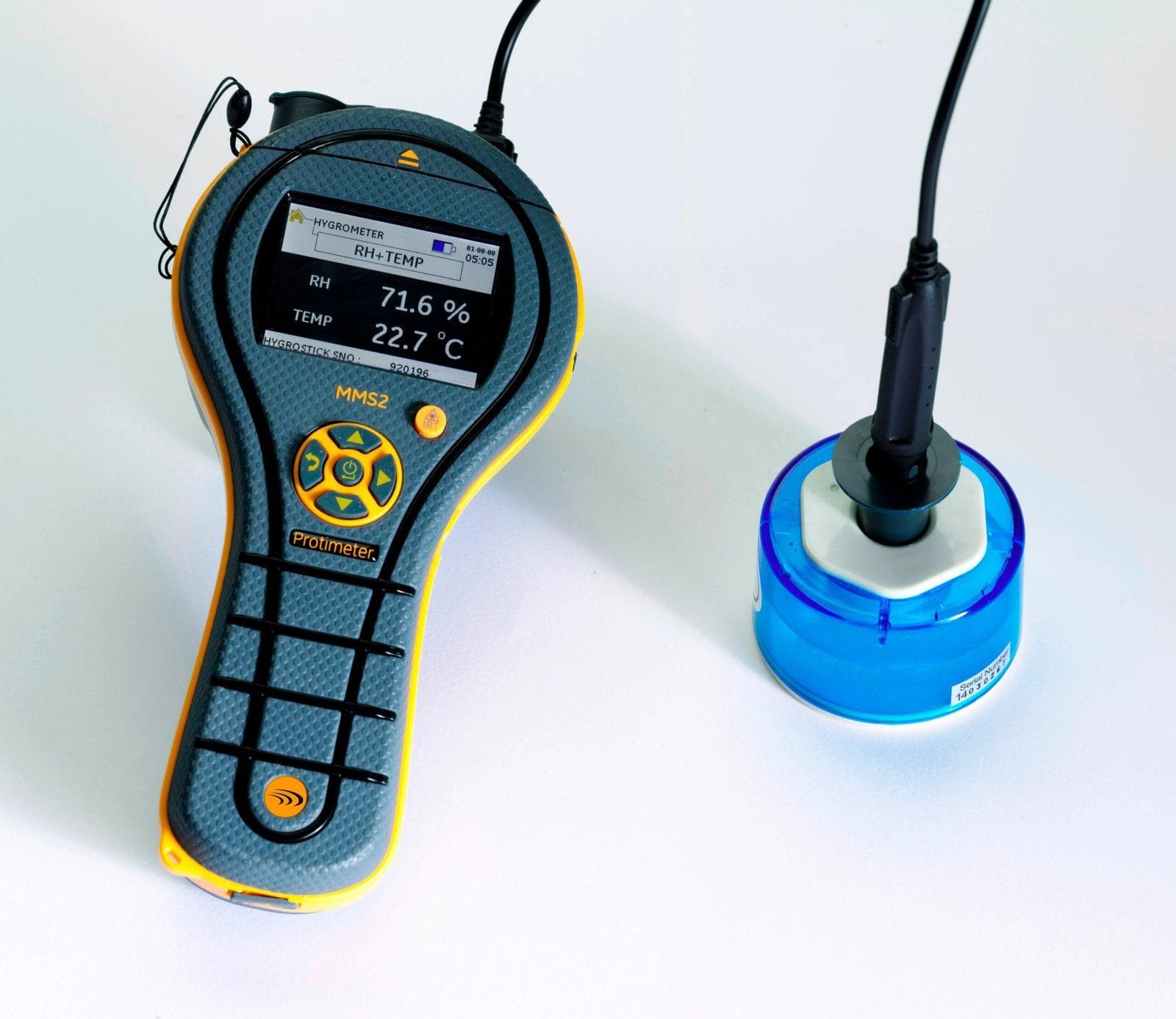

The new Protimeter MMS3 Flooring kit has been developed to fully comply with the ASTM F2170 standard for in situ humidity test in concrete. Included is the multi-function Protimeter MMS3 that also allows rapid evaluation of the slabs moisture level. The new patent pending adjustable sleeves allow the user to make measurements in 4” to 6” concrete slabs without the need for cutting the sleeves. Mini Hygrostick sensors are reusable making this the most cost effective system available.

The Protimeter MMS3 Flooring kit allows flooring inspectors to make moisture measurements in concrete floor slabs using the relative humidity in-situ probe method. The In-situ humidity test is being adopted worldwide and is considered the most accurate way for contractors and inspectors to ensure that the moisture levels in the concrete slab meet the recommended requirements prior to installing a floor covering.

Moisture levels in floor slabs are critical to understand as excessive moisture can lead to catastrophic and expensive floor failures. Global standards are in place such as ASTM F2170.

Measurements Include:

• In situ relative humidity and temperature – required for ASTM F2170 standard
• Relative humidity and temperature in the ambient conditions – required for ASTM F2170 standard
• Surface temperature – required for ASTM F2170 standard
• Noninvasive instant moisture evaluation used prior to in-situ RH moisture test
• Pin type moisture measurement, evaluating wood floor materials
• Data logging

The Protimeter MMS3 represents the latest in moisture measurement technology. The ergonomic 4-in-1 design allows for fast and accurate full building diagnostics both on and below the surface, from new building construction to refurbishing projects in existing buildings. Also, with built-in hygrometric capabilities and an infrared (IR) laser thermometer, the MMS3 also assesses indoor air quality conditions. The Protimeter MMS3 measures moisture in wood and wood floors, drywall, concrete and concrete block, stucco, plaster, masonry and other building materials.

The Protimeter MMS3 Moisture Meter is a four-in-one moisture measurement system:

1. Measure (pin mode) – use built-in pin, heavy duty moisture probe, deep wall probes, or hammer probes

2. Search (non-invasive mode) – pinless RF finds moisture for 3/4in to 5in below surface

3. Hygrometry – measures RH and temp, dew point and surface temp, surface proximity to dew point, grains per pound, and multiple psychrometric calculations

4. Surface Temperature (IR) – checks surface temp using laser pointer

The Protimeter MMS3 is ideal for the following applications – Fire and flood damage restoration, concrete floor moisture measurement, home inspection, building survey, moisture mapping, and more.

Protimeter MMS3 Features

• Pin moisture measurement with built-in calibration check
• Non-invasive moisture measurement, sensitivity mode feature, simple field calibration
• Non-contact surface temperature measurement with infrared (IR) laser pointer
• Psychrometric calculations
• Manual and automatic data logging up to 10,000 records
• Data reporting and processing through Protimeter PC software
• Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
• Easy-to-use interface with color display; multiple built-in languages

Protimeter MMS3 Series Model Breakdown, please click here for details
