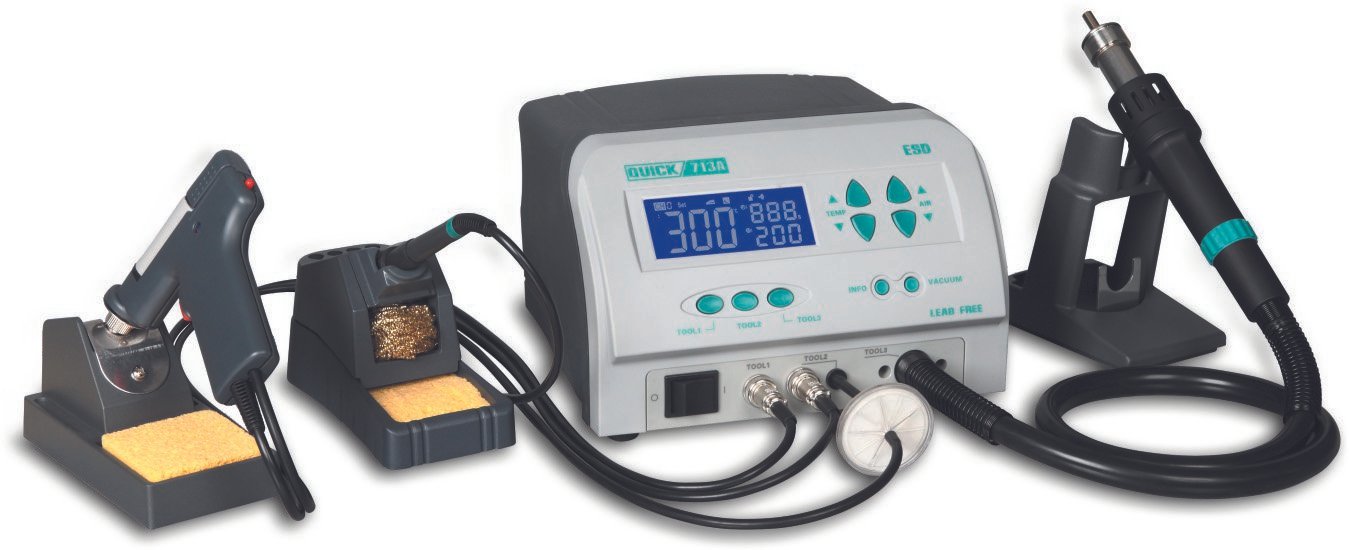

Quick 713A – Three Channel Rework System with Soldering, Hot Air and Vacuum
22 people are viewing this product right now
Original price was: $1,637.43.$1,037.82Current price is: $1,037.82.
Shipping calculated at checkout.
Estimated delivery:3 days
3-in-1 Rework System
- Three channel rework system
- Soldering, hot air and vacuum functionality
- Digital displays and controls
- 90 watt soldering iron
- 1000 watt hot air handpiece
- 1-120 L/min airflow for hot air
- 90 watt desoldering iron
- 600mm Hg vacuum pressure
- For soldering tips, click here
- For hot air, many nozzle styles are available
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description
Quick 713A – Three Channel Rework System with Soldering, Hot Air and Vacuum
The Quick 713A is a three channel rework system with soldering, desoldering and hot air functionality. The 713A features an internal pump and does not require an external source of compressed air to operate.
The soldering portion of the 713A offers 90 watts of heating power, with a temperature range of 125-930°F and stability of ±2°. Many different tips sizes and geometries are also available, making it suitable for a variety of applications.
The hot air section features a 1000 watt handpiece, with a temperature range of 215-930°F. Air volume is adjustable between 1-120 L/min, with several dozen nozzles also available. Nozzles are available in many different sizes and designed for use with a variety of package types, including QFP, SOP, BGA and many more. The hot air handle also features a built-in vacuum pen.
The 713A also contains a 90 watt desoldering handpiece, with vacuum pressure of 600mmHG. It features easily changed filters for quick removal of solder and flux, making it not only affordable, but user friendly.
Desoldering Equipment / Rework Template | |
|---|---|
| Functionality (Soldering Equipment) | Hot Air, Soldering, Vacuum (Desoldering) |
| Channels | 3 |
| Display Type | Digital |
| Power Supply Voltage | 110V |
Product General Attributes | |
| Warranty | 1 YEARS |
| HTS/Schedule B Number | 8515.19.0000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
