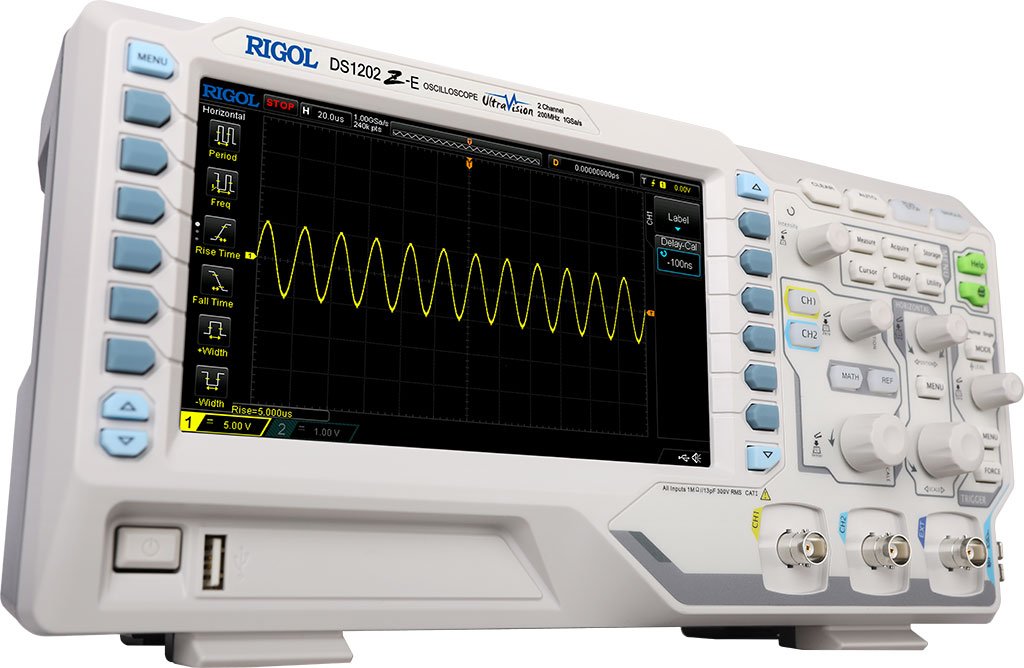

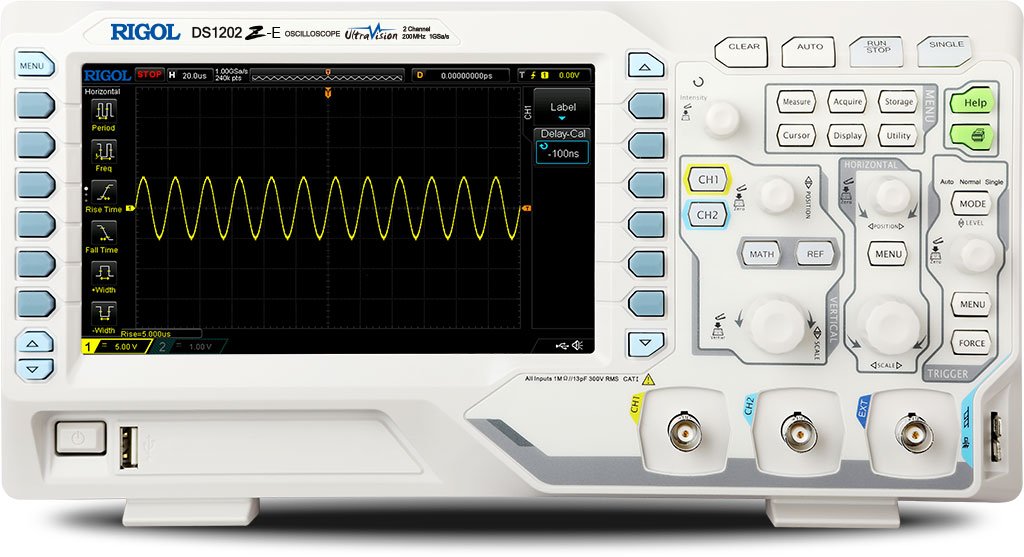

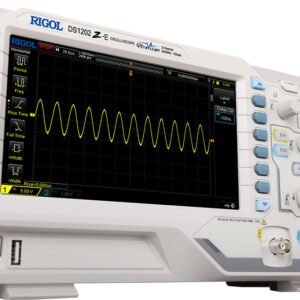

Rigol DS1202Z-E – Two Channel / 200 MHz Digital Oscilloscope

Rigol DS1202Z-E – Two Channel / 200 MHz Digital Oscilloscope

• High performance at an outstanding price
• Two channels
• 200 MHz bandwidth
• Real-time sample rate up to 1 GSa/s
• Memory depth up to 24 Mpts

The Rigol DS1202Z-E offers high performance at an unprecedented price. With two channels and a 200 MHz bandwidth, the DS1202Z-E is ideal for applications from education to design.

The DS1202Z-E also comes with a FREE software package (BND-MSO/DS1000Z) already built in – a $312 value. This package includes the following options:

• AT-DS1000Z – Advanced Triggering Option
• MEM-DS1000Z – Memory Depth Upgrade
• REC-DS1000Z – Real Time Waveform Record and Relay Option
• SA-DS1000Z – Serial Bus Analysis Option

Product Dimensions: Width × Height × Depth = 12.3″ x 6.3″ x 4.8″
Weight: 6.4 pounds

Innovative UltraVision Technology(Analog Channel)

• Deep Memory Depth (up to 24 Mpts)
• Higher Waveform Capture Rate (up to 30,000 wfms/s)
• Real-time Waveform Recording & Playback (up to 60,000 frames)
• Intensity Graded Color Display

Features and benefits

UltraVision: up to 30,000 wfms/s waveform capture rate

UltraVision: deep memory (up to 24 Mpts)

UltraVision: waveform recording and playback functions

UltraVision: intensity graded color display

Serial bus trigger and decoding functions (RS232/UART, I2C, SPI)

A variety of trigger functions
