Rigol DS7000-PWR – Power Analysis Measurement Option
43 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Power Analysis Measurements
- Power analysis option for DS7000/MSO7000 oscilloscopes
- Used with measuring power quality and output ripple
- Full power analysis will still require Ultra Power Analyzer
Guarantee Safe and Secure Payment Checkout
Description
Rigol DS7000-PWR – Power Analysis Measurement Option
- Power analysis option for DS7000/MSO7000 oscilloscopes
- Used with measuring power quality and output ripple
- Full power analysis will still require Ultra Power Analyzer
The DS7000-PWR is the power analysis option for DS7000 and MSO7000 oscilloscopes. The DS7000-PWR can be used for measurement of power quality, as well as output ripple. Please note, full power analysis will still require Ultra Power Analyzer.
| MSO/DS7000 | Ultra Power Analyzer | |
| Power Quality | DS7000-PWR | Support |
| Output Ripple | DS7000-PWR | Support |
| Current Harmonics | Support | |
| Inrush Current | Support | |
| Switching Loss | Support | |
| Safe Operating Area | Support | |
| Modulation | Support |

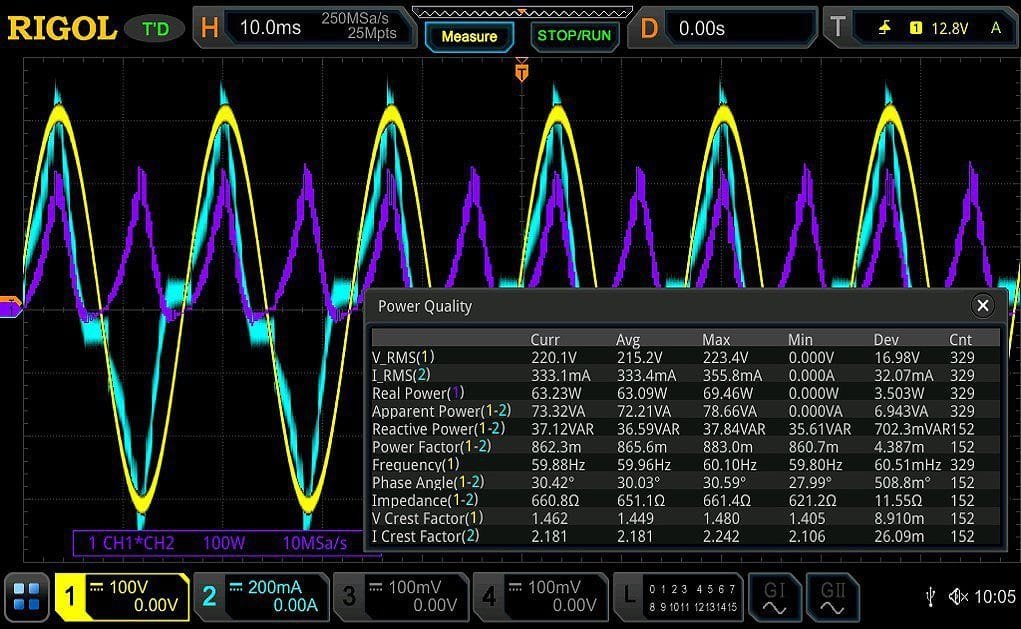

Power Quality Analysis – Characterizing the quality of the AC in
Output Ripple Analysis – Characterizing the quality of DC out
Rigol DS7000/MSO7000 series oscilloscopes are available with a variety of software options.
- DS7000-2RL – Memory Upgrade to 250MPts
- DS7000-5RL – Memory Upgrade to 500MPts
- DS7000-COMP – RS232/UART Protocol Trigger and Analysis
- DS7000-EMBD – I2C and SPI Protocol Trigger and Analysis
- DS7000-AUTO – CAN and LIN Protocol Trigger and Analysis
- DS7000-FLEX – FlexRay Protocol Trigger and Analysis
- DS7000-AUDIO – I2S Protocol Trigger and Analysis
- DS7000-AERO – MIL-STD-1553 Protocol Trigger and Analysis
- DS7000-PWR – Power Analysis Measurements
- DS7000-BND – All Option Bundle (Serial Decodes, Power)
Product General Attributes | |
|---|---|
| Product Height | 12.00 IN |
| Product Length | 18.00 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9030908010 |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 12.00 IN |
| Shipping Length | 18.00 IN |
| Shipping Width | 11.00 IN |
You must be logged in to post a review.
| Dimensions | 18 × 11 × 12 in |
|---|
