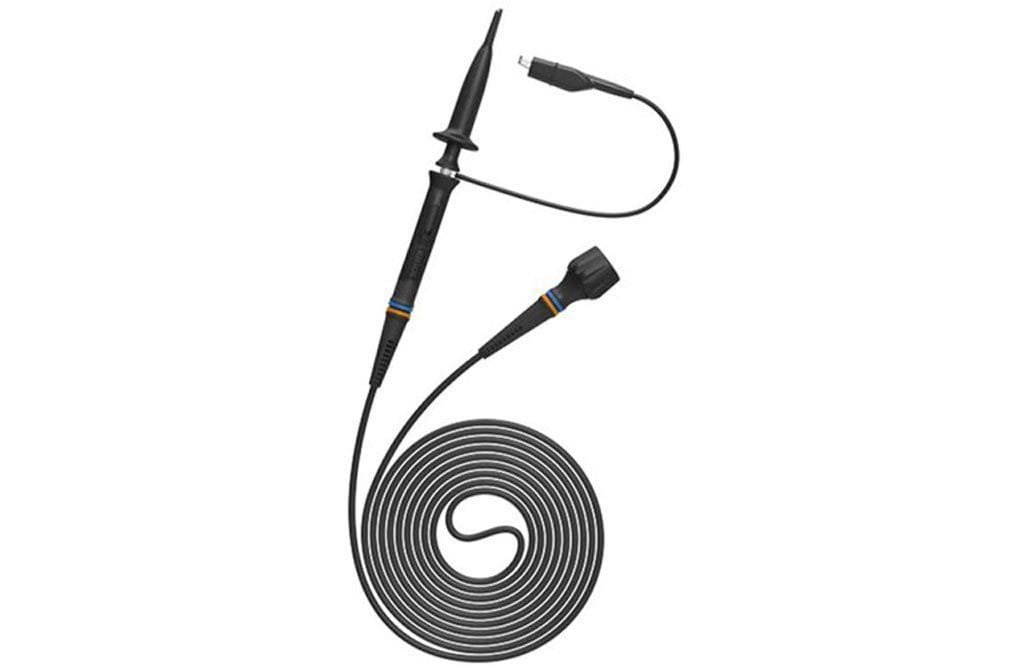

Rigol PVP2350 Standard / Passive Oscilloscope Probes
37 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
PVP2350 — 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode — Replaces the RP3300A
- PVP2350: 1X/35MHz, 10X/350MHz, one/two Probes Kit
- 10X or 1X Switchable
- 10 pF to 25 pF Compensation Range
- 1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
- 10X: 10MΩ ±1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage
- New Design in appearance brings you perfect user experience
Guarantee Safe and Secure Payment Checkout
Description
Rigol PVP2350 – Passive Probe
- PVP2350: 1X/35MHz, 10X/350MHz, one/two Probes Kit
- 10X or 1X Switchable
- 10 pF to 25 pF Compensation Range
- 1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
Before taking any measurement using a probe, first check the frequency compensation of the probe and adjust it to match the oscilloscope used. Generally, the oscilloscope provides a calibration signal output terminal at the front panel.
Connect the probe (set the probe attenuation to 10X) to the signal output terminal to display a square waveform on the oscilloscope. Insert the adjustment tool into the compensation adjustment hole at the probe head and rotate it clockwise/counterclockwise until the properly compensated square waveform is displayed (flat-top square waveform).
Frequency Compensations
Product General Attributes | |
|---|---|
| Product Height | 12.00 IN |
| Product Length | 18.00 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9030908961 |
| ECCN Number | 3A992.a |
| Country of Origin | China |
| Shipping Height | 12.00 IN |
| Shipping Length | 18.00 IN |
| Shipping Width | 11.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 18 × 11 × 12 in |
|---|
