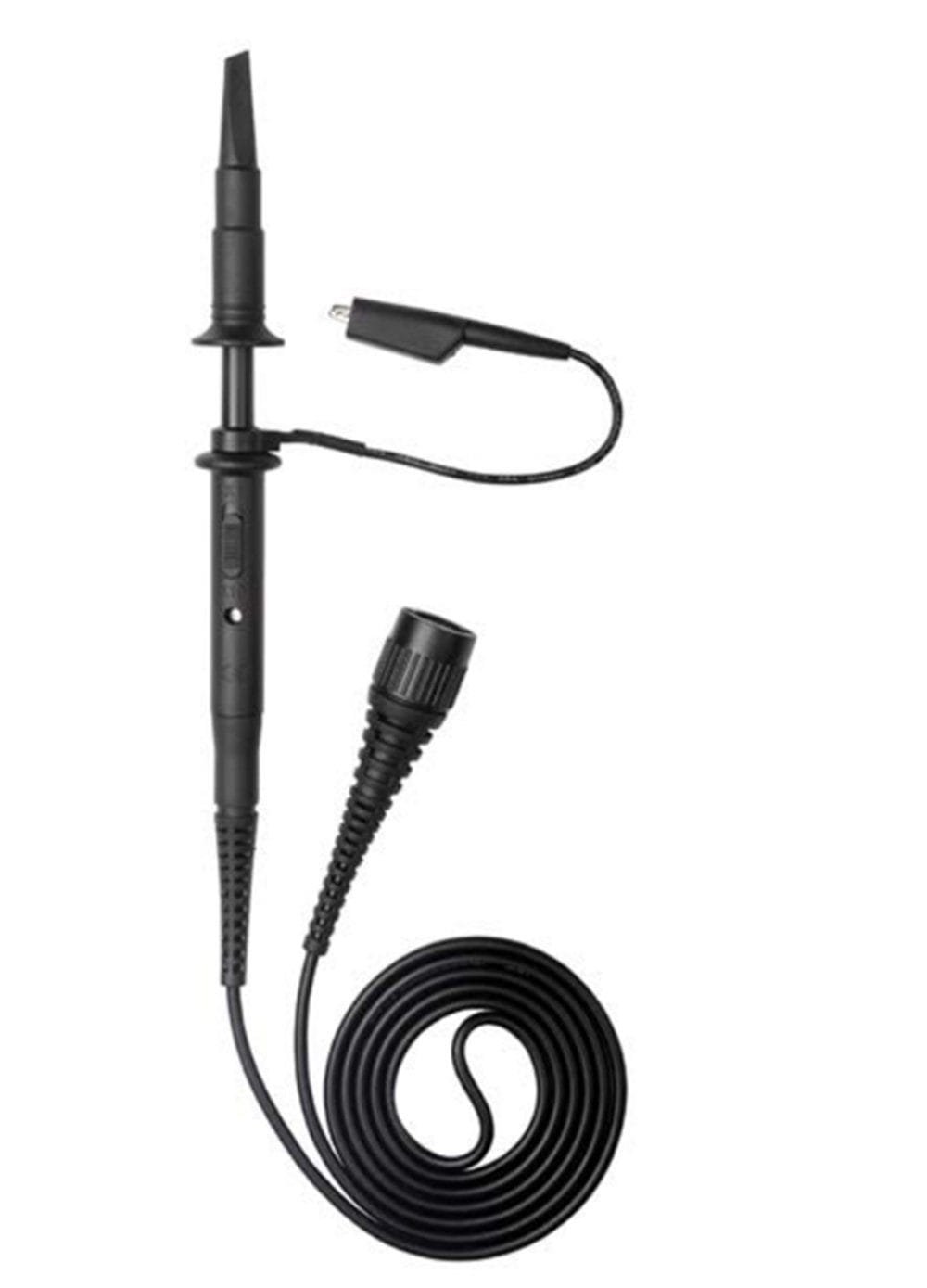

Rigol PVP3150 – 150 MHz Passive Probe with 1x:10x Selector
48 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
150 MHz Passive Probe with 1x:10x selector. With bandwidth of 20 MHz in 1x mode
- 150 MHz Passive Probe
- Bandwidth of 20 MHz in 1x Mode
- Compensation Range: 10 pF to 25 pF
- Cable Length: 120 ± 2 cm
- Probe Tip Diameter: 4.8 mm
Guarantee Safe and Secure Payment Checkout
Description
Rigol PVP3150 – 150 MHz Passive Probe with 1x:10x Selector
- 150 MHz Passive Probe
- Bandwidth of 20 MHz in 1x Mode
- Compensation Range: 10 pF to 25 pF
- Cable Length: 120 ± 2 cm
- Probe Tip Diameter: 4.8 mm
Frequency Compensation
Before taking any measurement using a probe, first check the frequency compensation of the probe and adjust it to match the oscilloscope used. Generally, the oscilloscope provides a calibration signal output terminal at the front panel. Connect the probe (set the probe attenuation to 10X) to the signal output terminal to display a square waveform on the oscilloscope. Insert the adjustment tool into the compensation adjustment hole at the probe head and rotate it clockwise/counterclockwise until the properly compensated square waveform is displayed (flat-top square waveform).
Undercompensated
Overcompensated
Properly Compensated
Product General Attributes | |
|---|---|
| Product Height | 12.00 IN |
| Product Length | 18.00 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9030908961 |
| ECCN Number | 3A992.a |
| Country of Origin | China |
| Shipping Height | 12.00 IN |
| Shipping Length | 18.00 IN |
| Shipping Width | 11.00 IN |
You must be logged in to post a review.
Manuals/Guides
Manuals
| Dimensions | 18 × 11 × 12 in |
|---|
