Rigol RSA5032 Real Time Spectrum Analyzer

Rigol RSA5032 Real Time Spectrum Analyzer

The Rigol RSA5000 real time spectrum analyzer offers uncompromised performance and capability, all at a fraction of the price of similar instruments. Available in two bandwidths, and with an optional tracking generator, Rigol makes an RSA5000 suited for your specific application.

The RSA5000 features outstanding swept spectrum performance and up to 40MHz real-time bandwidth with category leading 7.45µs POI. This makes it a great choice for users in spectrum monitoring, transmitter testing, RF component characterization, as well as EMI applications. In addition, users integrating hopping/channel shifting technologies in crowded ISM bands, integrating PLL technology in their designs, trying to identify sources of interference, or trying to characterize rapidly pulsing applications will all benefit from the seamless capture capabilities of the real-time spectrum analysis capability and the 7.45µs 100% POI.

Outstanding Performance in Traditional Swept Spectrum Analysis

• 1ms Full Span sweep
• Expanded Vertical Range to +30dBm
• Reduced Phase Noise to -108dBc/Hz
• 1 Hz RBW

Reduced Noise Floor (DANL) to -165dBm

• Up to 40MHz Real-Time Bandwidth
• >146,000 FFT/sec
• Delivers down to a 7.45µs 100% Probability of Intercept

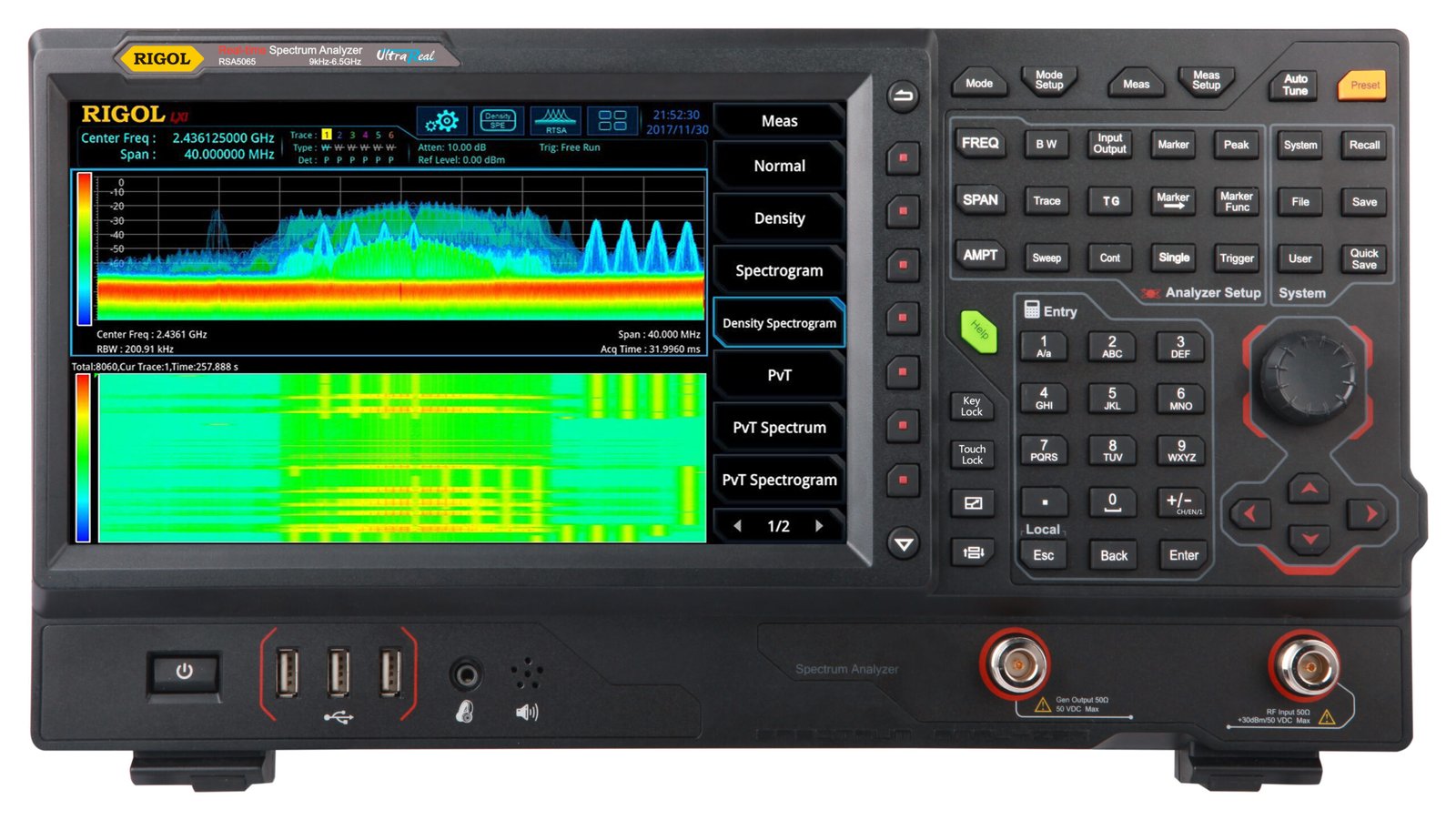

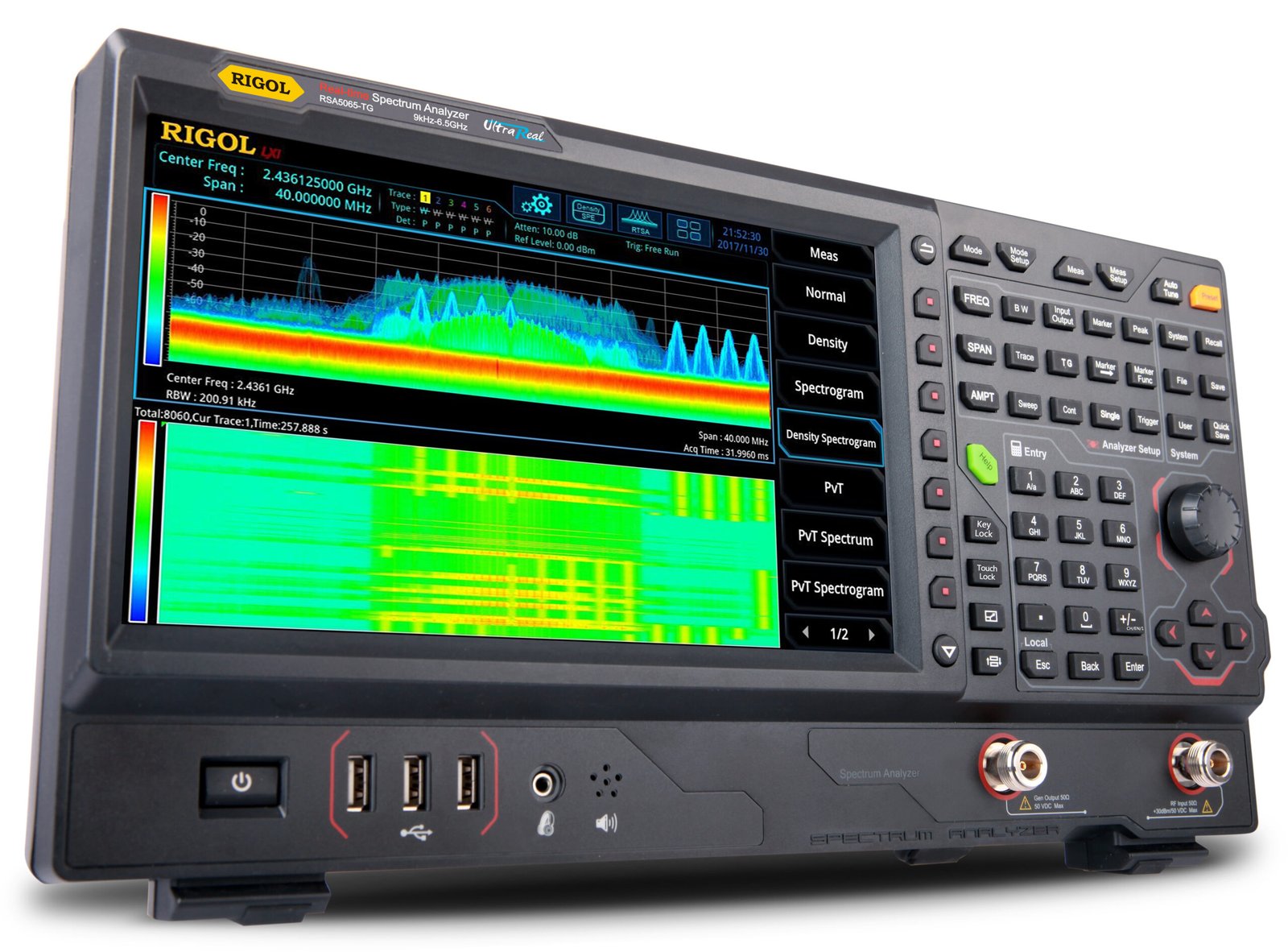

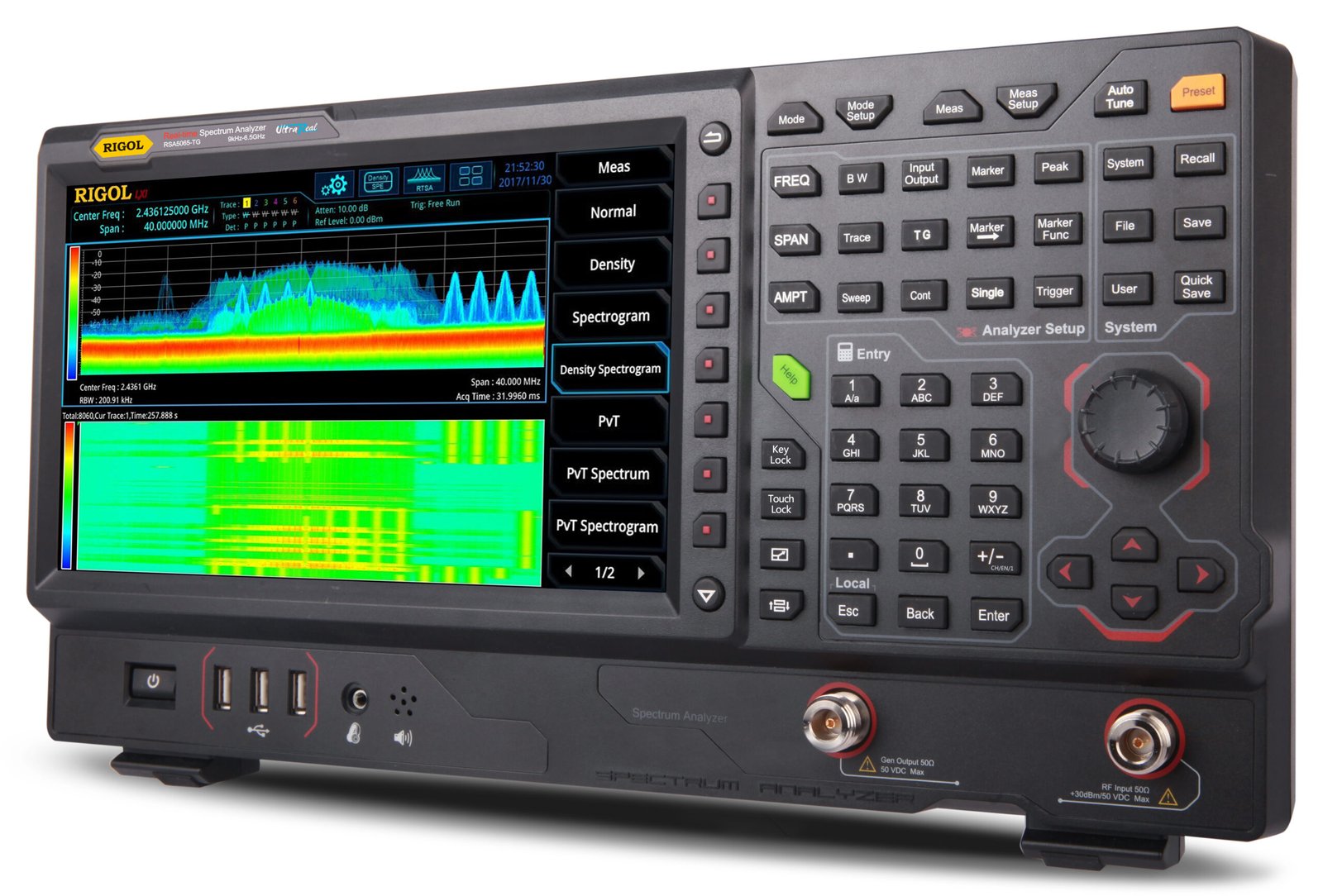

• 7 Display Modes (Normal, Density, Spectogram, Power V Time, Density & Spectogram, PVT & Spectrum, PVT & Spectrogram
• Frequency Mask Trigger

Flexible User Interface allows customer to interact with the unit as they chose

• 10.1 Inch Capacitive Touch Screen Display with Gesture Support
• Linux OS with a Quad Core Processor
• Mouse/Keyboard support
• Traditional Knob and Button support
