Rohde and Schwarz NRP-Z211 – Two Path Diode Power Sensor (10 MHz – 8 GHz)
- Frequency range: 10 MHz to 8 GHz
- Level range: -60 dBm to +20 dBm
- Connector type: N
- Please see below for information on connection accessories for use with a computer or instrument
The R&S NRP-Z211/-Z221 two-path diode power sensors combine all key characteristics relevant for their use in production. These USB sensors are cost-effective, fast and precise. The sensors support the same measurement functions as the R&S NRPxxS three-path diode power sensors and offer the best price/performance ratio in their class.
Mid-class sensor with tried and tested technology
The two-path diode power sensors use the tried and tested Rohde & Schwarz multipath technology. With two overlapping diode paths measured in parallel and a wide dynamic range of 80 dB, the power sensors feature high measurement accuracy and speed.
Connection to your computer or instrument
NRP-Z power sensors offer several options for connection to your computer or instrument.
- NRP-Z2 – Sensor extension cable
- In some cases the signal source is far away from the base unit. Therefore, four different sensor extension cables are available to get a total length of 3, 5 or 10 meters
- NRP-Z3 – USB adapter (active)
- Developed for applications requiring external triggering of the power sensor. It also offers a separate power supply.
- NRP-Z4 – USB adapter (passive)
- Provides all basic functions, as it handles the transmission of settings and measurement data as well as the power supply of the sensor via the USB bus
- NRP-Z5
- Can host up to 4 R&S NRPxxS(N), NRPxxT(N), NRPxxA(N) or NRP-Z sensors. A professional trigger solution allows simultaneous internal and external triggering of all connected sensors

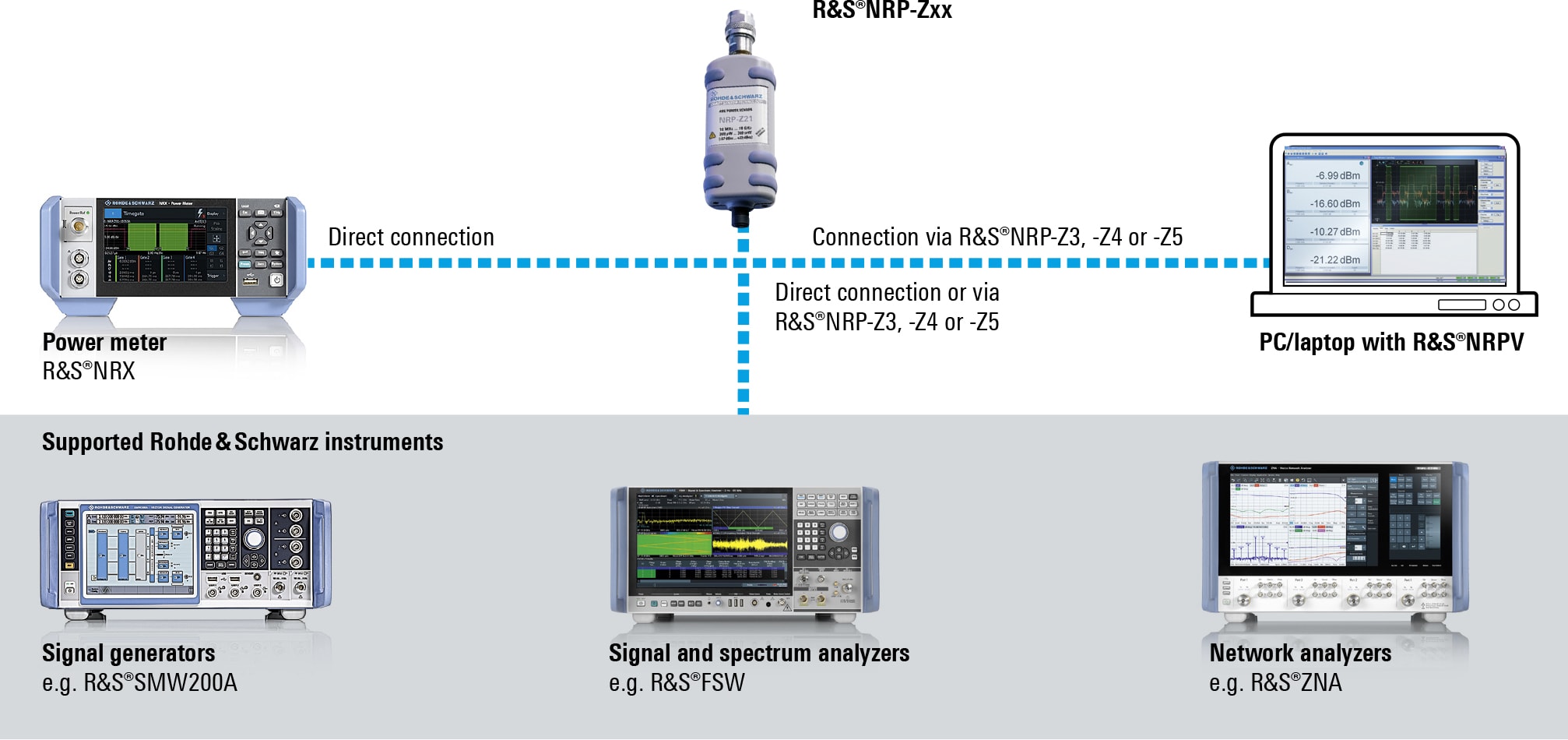

Multiple ways to operate the R&S NRP power sensors
NRP series overview
Rohde & Schwarz offers several varieties of its NRP power sensor. The NRPxxS(N), NRPxxT(N), NRPxxTWG, NRPxxA(N) and NRP-Zxx power sensors are immediately ready for use. In contrast to conventional power sensors, no calibration is required prior to making measurements since the sensors are fully characterized over frequency, level and temperature and feature longterm stability. All calibration data is stored in the sensors, so they function as independent measuring instruments. Usually, no zeroing is required. Users can plug in a sensor and simply start measuring.
| Versatile use of the R&S NRP power sensors | ||||||
| Available measurement functions (modes) | ||||||
| Sensor type | Features | Continuous average | Trace | Timeslot/time gate | Burst average | Statistics |
| NRPxxS(N) three-path diode power sensors | fast, accurate and packed with features to measure CW and modulated signals | ✓ | ✓ | ✓ | ✓ | – |
| NRP33SN-V TVAC-compliant three-path diode power sensor | specially designed for use in thermal vacuum (TVAC) chambers | ✓ | ✓ | ✓ | ✓ | – |
| NRPxxT(N)/TWG thermal power sensors | most accurate power measurements for reference applications and use in calibration labs | ✓ | – | – | – | – |
| NRPxxA(N) EMC average power sensors | accurate average power measurements for EMC applications | ✓ | – | – | – | – |
| NRP-Z8x wideband power sensors | time domain analysis and automatic pulse analysis for radar applications and universal use | ✓ | ✓ | ✓ | ✓ | ✓ |
| NRP-Z211/-Z221 two-path diode power sensors | cost-effective power measurement solution for production | ✓ | ✓ | ✓ | ✓ | – |
| NRP-Z27/-Z37 power sensor modules | level calibration of signal sources in conjunction with the FSMR measurement receiver | ✓ | – | – | – | – |
| NRP-Z28/-Z98 level control sensors | highly accurate signal level generation in conjunction with a signal generator | ✓ | ✓1) | ✓1) | ✓1) | – |
RF and Microwave Power Sensors Template | |
|---|---|
| LAN version | No |
| Minimum Frequency (RF Power Sensors) | 10 MHz |
| Maximum Frequency (RF Power Sensors) | 8 GHz |
| Sensor Technology | Diode |
Product General Attributes | |
| Unique Features | 2 path diode power sensor |
| Product Height | 1.22 IN |
| Product Length | 6.69 IN |
| Product Width | 1.89 IN |
| Shipping Weight | 0.76 LBS |
| HTS/Schedule B Number | 9030390100 |
| ECCN Number | EAR99 |
| Country of Origin | Germany |
| Shipping Height | 1.22 IN |
| Shipping Length | 6.69 IN |
| Shipping Width | 1.89 IN |
