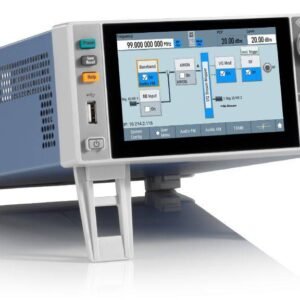

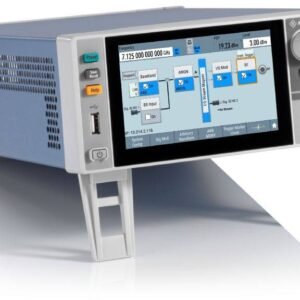

Rohde & Schwarz SMCV100BP2 – Vector Signal Generator (Catalog 3662.0344P03)
32 people are viewing this product right now
Original price was: $15,585.00.$14,026.50Current price is: $14,026.50.
Shipping calculated at checkout.
Estimated delivery:3 days
Package SMCV100B Vector Signal Generator Contains serialized product+options: R and S SMCV100B Vector Signal Generator 1432.7000K02 consisting of: – R and S SMCV100B Vector Signal Generator – R and S SMCVB-B103 – R and S SMCVB-K197 – R and S SMCVB-K198 – R and S SMCVB-K199
- Catalog number 3662.0344P03
- Package includes SMCV100B: AM/FM/φM (via baseband), pulse modulation, custom digital modulation
- Frequency range: 8 kHz to 3 GHz
- Multi-standard platform for broadcast, navigation, cellular and wireless applications
- Full software option defined vector signal generator with 5″ touchscreen
- High output power up to +25 dBm
- Modulation bandwidth up to 240 MHz
- Convenient operation on 5″ touchscreen
Guarantee Safe and Secure Payment Checkout
Description
Rohde & Schwarz SMCV100BP2 – Vector Signal Generator (Catalog 3662.0344P03)
- Catalog number 3662.0344P03
- Package includes SMCV100B: AM/FM/φM (via baseband), pulse modulation, custom digital modulation
- Frequency range: 8 kHz to 3 GHz
- Multi-standard platform for broadcast, navigation, cellular and wireless applications
- Full software option defined vector signal generator with 5″ touchscreen
The R&S SMCV100B vector signal generator is the first multi-standard platform for automotive, broadcast, navigation, and wireless applications. This makes the R&S SMCV100B unique for use in many applications, from the lab to production and wherever different technologies meet.
The R&S SMCV100B vector signal generator features a new direct RF DAC concept for RF signal generation. This concept enables I/Q modulation and up conversion in the digital domain, which eliminates the I and Q imbalance errors and LO leakage associated with traditional analog I/Q modulators.
The R&S SMCV100B options concept is fully software defined. No hardware options are required to obtain full instrument functionality. This software concept applies to upgrading the RF frequency, memory, I/Q modulation bandwidth and all other R&S SMCV100B options for other applications.
Thanks to its flexible and customizable design, the instrument is ready to meet future requirements. Options can easily be added via software keycodes, allowing users to quickly upgrade functions and add bandwidth, output power and even frequency range.
The intuitive, touchscreen based operating concept makes the R&S SMCV100B very ergonomic and practical to use.
Generators / Counters/RF Signal Generator Template | |
|---|---|
| Type(Generator) | Bench |
| Minimum Frequency Range (kHz) | 3 GHz (3000 MHz) |
| Maximum Frequency Range | 8 kHz (0.008 MHz) |
| Modulation Types (generator) | AM, FM |
| Memory for Presets | No |
Product General Attributes | |
| Warranty | 3 YEARS |
| Warranty Details | 3 years main unit. 1 year other parts |
| Interfaces I/O | LAN / Ethernet, USB |
| Product Weight | 10.36 LBS |
| Product Height | 3.82 IN |
| Product Length | 14.41 IN |
| Product Width | 8.74 IN |
| Shipping Weight | 12 LBS |
| ECCN Number | FREI-INLAND |
You must be logged in to post a review.
Manuals/Guides
Spec SheetsApplication Notes
| Weight | 10.36 lbs |
|---|---|
| Dimensions | 14.41 × 8.74 × 3.82 in |
