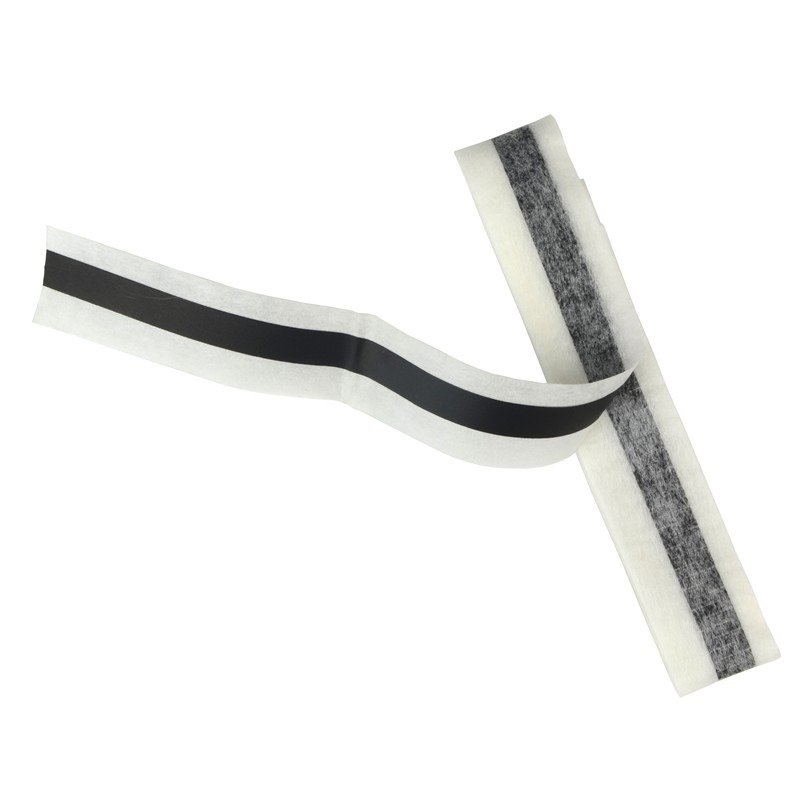

SCS 2209 – Single-Wire Disposable Wrist Strap

The SCS 2209 Disposable Wrist Strap meets the ANSI/ESD S20.20 wrist strap system required limit tested per ESD TR53, providing cost-effective personnel grounding for visitors to the ESD-protected area. Wrist Strap is designed for one-time use. The wrist strap is ideally suited for shipment along with ESD-sensitive items [ESDS] providing the means to ground personnel to open ESDS packaging and install contents.

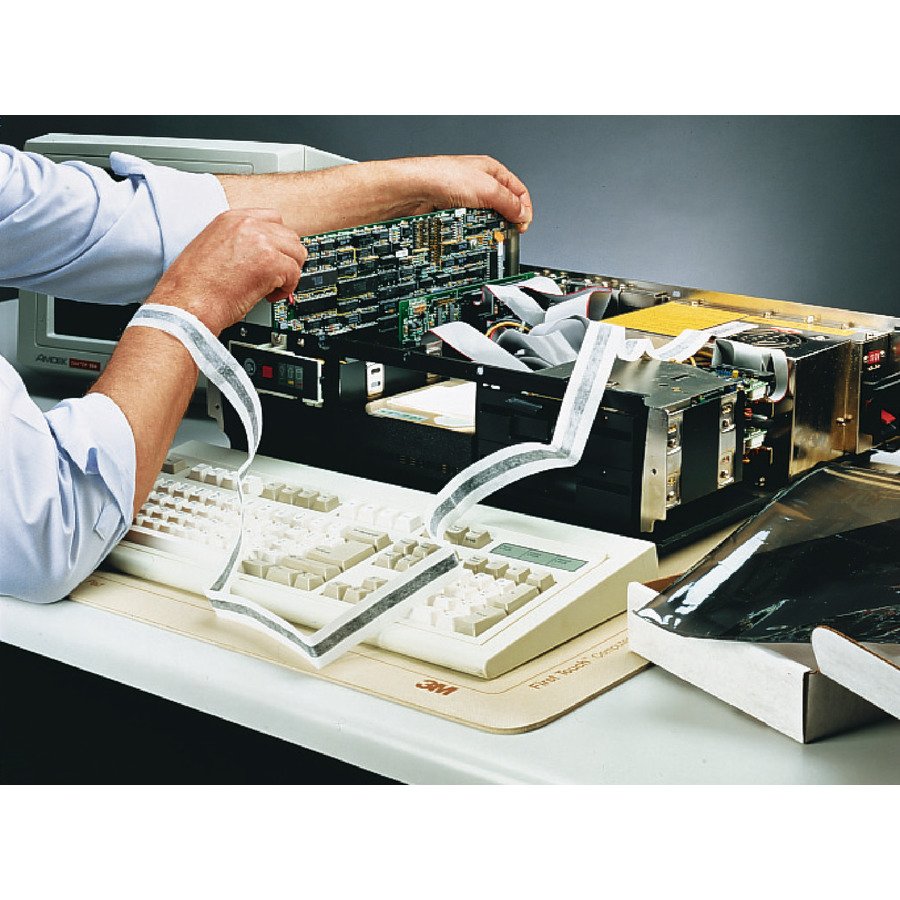

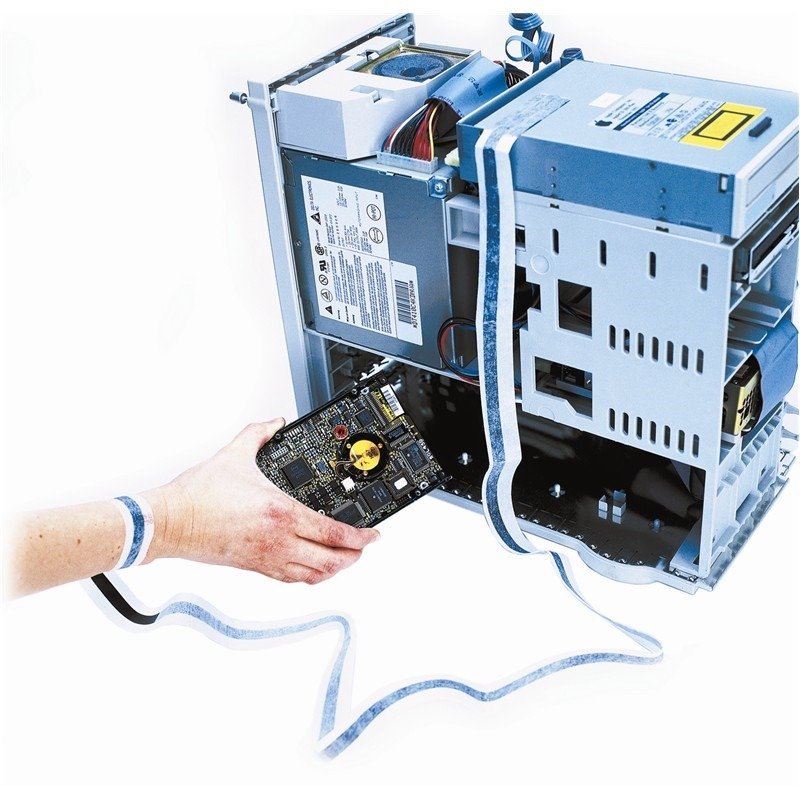

A hypoallergenic adhesive provides 360-degree contact with the skin to minimize skin-to-band resistance. At the other end, the conductive adhesive on the copper foil adheres to any convenient ground point or, as illustrated, to equipment chassis to provide equipotential bonding. Current limiting resistance is fabricated into the plastic ribbon below the wristband.
